Thomas & Betts Carlon 1-Gang Low Voltage Mounting Bracket - Orange Non-Metallic Construction
Model: TB-SC100RR
Thomas & Betts Carlon 1-Gang Low Voltage Mounting BracketProfessional Non-Metallic Low Voltage Installation SolutionThe Thomas & Betts Carlon 1-Gang Low Voltage Mounting Bracket delivers reliable...
Carlon
$59.83
$5.37

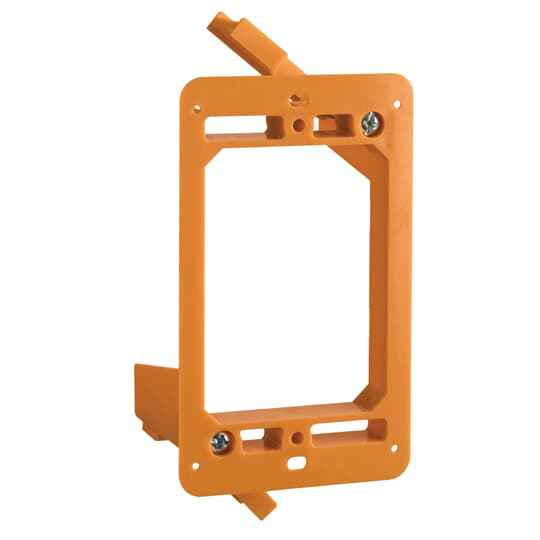

Carlon 1-Gang Orange Non-Metallic Low Voltage Mounting Brackets
Professional low voltage installation solution for secure device mounting
Carlon 1-Gang Orange Non-Metallic Low Voltage Mounting Brackets provide reliable mounting solutions for low voltage applications. These professional-grade orange non-metallic brackets are designed for secure installation with UL E216492 standards compliance, ensuring dependable performance in electrical installations.
Professional Features & Benefits
- 1-Gang Configuration: Standard single-gang design accommodates most low voltage devices and provides consistent mounting dimensions.
- Non-Metallic Construction: Durable non-metallic material resists corrosion and provides electrical isolation for enhanced safety.
- Orange Color Coding: High-visibility orange color enables quick identification and compliance with low voltage wiring standards.
- Zero Knockouts: Clean design without pre-punched knockouts allows for custom installation configurations as needed.
- UL E216492 Listed: Meets rigorous safety standards for reliable performance in professional electrical installations.
- USA Manufacturing: Manufactured in the United States ensuring consistent quality and reliable supply chain support.
Technical Specifications
- Country Of Origin: United States (US)
- Department: Electrical
- Number Of Knockouts: 0
- Product Color: Orange
- Product Type: Low Voltage Brackets
- Standards: UL E216492
- Sub Brand Label: Carlon
Professional Applications
- Residential Low Voltage Systems
- Commercial Building Automation
- Security System Installations
- Audio/Video Distribution
- Data and Communication Wiring
- Fire Alarm Systems
- Access Control Systems
Why Choose Carlon Quality?
Carlon delivers trusted reliability with UL E216492 listed brackets manufactured in the United States. The durable non-metallic construction and professional orange color coding ensure long-lasting performance and code compliance in demanding electrical installations.
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Department:
- Electrical
- Number Of Knockouts:
- 0
- Product Color:
- Orange
- Product Type:
- Low-Voltage Mounting Bracket
- Standards:
- UL E216492
- Sub Brand Label:
- Carlon
- Product Group:
- Hangers, Supports & Fasteners
- Product Subgroup:
- Mounting Hardware
Carlon SC100SC – Frequently Asked Questions
1) What is the difference between the Carlon SC100A, SC100SC, and SC100RR-CP low voltage brackets?
All three are Carlon 1-gang orange non-metallic low voltage mounting brackets, but they are ordered differently. SC100A is the open back design in a standard pack, SC100SC is the add-on bracket in a standard pack, and SC100RR-CP is the standard bracket in a contractor pack for crews doing volume rough-in. Pick the contractor pack when you are trimming out a whole building and the standard packs for smaller jobs or service work.
2) Can I use a Carlon SC100 low voltage bracket for line voltage receptacles or switches?
No. The SC100 is a low voltage mounting bracket, not an outlet box. It has zero knockouts and no enclosure for line voltage conductors. Use it for data, telephone, coax, speaker, thermostat, intercom, security, and access control device plates. For 120V receptacles or switches you need a proper single gang outlet box.
3) Does the Carlon SC100 bracket have a back, or is the wall cavity left open?
The SC100A is the open back version, which is what most low voltage installers want. With no back, the cable passes straight out of the bracket into the stud bay and there is no bushing or knockout to fight. That open cavity is also why this is not a substitute for a boxed device: it gives no enclosure, only a mounting frame for the plate and device.
4) Will a standard 1-gang wall plate and keystone insert fit the Carlon SC100 bracket?
Yes. The SC100 is a 1-gang bracket built to standard single gang mounting dimensions, so decorator plates, keystone plates, and low voltage device plates sized for a single gang opening mount to it directly.
5) When would I order the SC100SC add-on bracket instead of the standard SC100?
The add-on version is the one to specify when you are ganging alongside an existing bracket rather than starting a new opening. If you are running a fresh single gang low voltage drop on its own, the standard bracket or the open back SC100A is what you want.
6) Why is the Carlon SC100 bracket orange instead of blue?
The orange color is the trade's visual shorthand for low voltage. On a rough-in walkthrough an inspector or another crew can tell at a glance which openings carry communications cable and which carry power, without pulling a plate. Carlon's low voltage brackets are molded in orange for exactly that reason.
7) Are Carlon SC100 brackets made in the USA?
Yes, they are manufactured in the United States. That matters if you are buying under a government, education, or healthcare contract with domestic sourcing language in it.
8) Will the non-metallic SC100 bracket cause a grounding problem on a data drop?
No. The bracket is non-metallic, so it is not part of any bonding path and does not need to be grounded. Grounding and bonding of shielded cable, racks, or panels is handled at the equipment end, not at the bracket. The non-metallic body also will not corrode in damp or coastal construction the way a steel ring can.
