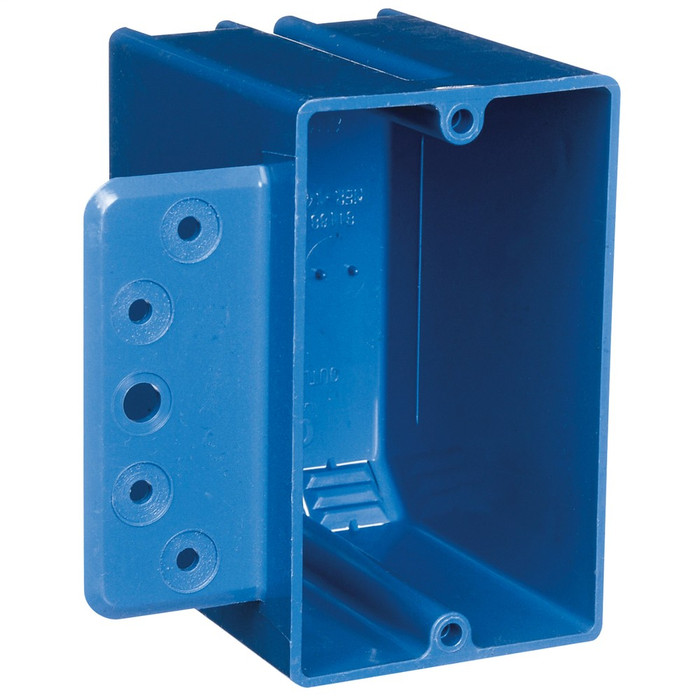

Carlon 1-Gang PVC New Work Outlet Box with Mounting Bracket

Carlon 1-Gang PVC New Work Outlet Box with Mounting Bracket

(No reviews yet) Write a Review

Model: B118B-UPC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB 1-Gang PVC New Work Outlet Box with Mounting Bracket

The ABB 1-Gang PVC New Work Outlet Box with Mounting Bracket is a one-gang outlet box built with an 18 cubic inch capacity to accommodate wiring devices and conductor connections. Molded from PVC and finished in Blue, this box mounts via an integrated bracket designed for 3/8 Inch to 5/8 Inch wallboard on both steel and wood stud framing. It is designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code, and it carries UL File E11461.

Key Features

  • Cubic Capacity: 18 Cubic Inches of usable volume for wiring devices and splice connections.
  • Box Dimensions: Length 3-3/4 Inches, Width 2-1/4 Inches, Depth 2-15/16 Inches for a compact new-work install.
  • Durable Construction: PVC construction for easier installation, greater performance, and lower installation cost versus metal boxes.
  • Mounting Bracket: Integrated bracket accommodates 3/8 Inch to 5/8 Inch wallboard thickness on steel and wood stud mounting.
  • Color: Blue housing for quick visual identification on the jobsite.
  • NEC Compliant Design: Designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code.

Certifications & Compliance

  • UL E11461

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • New Construction Electrical Wiring
  • Non-Metallic Sheathed Cable Installations
  • Residential and Light Commercial Construction
  • Steel and Wood Stud Wall Framing
  • Single-Gang Device and Receptacle Boxes

Why ABB?

ABB engineers this PVC outlet box for dependable, code-compliant new-work installations, pairing an 18 cubic inch capacity with a mounting bracket built for both steel and wood stud framing. Backed by UL listing under File E11461, it delivers the reliable performance electrical professionals expect for non-metallic sheathed cable installations under NEC Article 314.

Manufacturer Resources

Product Specs

Product Type:
Outlet Box
Configuration:
Single Gang
Listing:
UL Listed
Product Material:
PVC
Product Color:
Blue
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Electrical Boxes

Carlon B118B-UPC – Frequently Asked Questions

1) Will the ABB B118B-UPC outlet box bracket work on steel studs, or is it wood only?
Both. The integrated bracket on the ABB B118B-UPC 1-gang PVC box is built for steel and wood stud framing, and it sets the box for 3/8 inch to 5/8 inch wallboard. So a crew running metal studs in light commercial and a framer on wood studs in a house can use the same box.
2) Is 18 cubic inches enough box fill for a single receptacle with 12 AWG feed-through wiring?
The ABB 1-gang PVC box gives 18 cubic inches of usable volume for devices and splices. Box fill is calculated per NEC Article 314.16, and this box is designed and listed for non-metallic sheathed cable use under Article 314. Run your conductor, device, clamp and grounding allowances against the 18 cubic inch figure before you commit to the cable count.
3) Can I use this PVC box with metal-clad or conduit, or only Romex?
This ABB box is designed and listed specifically for use with non-metallic sheathed cable per NEC Article 314. It is a new-work, NM-cable box. For MC cable or conduit runs, use a box rated and clamped for that wiring method instead.
4) Can I use this bracket-mount box for a remodel or old work retrofit?
No. The ABB B118B-UPC is a new-work box, meaning the bracket fastens to the stud before the wallboard goes on. For cutting into finished drywall you need an old work box with wing clamps instead.
5) What are the dimensions of the ABB B118B 1-gang new work box?
Length 3-3/4 inches, width 2-1/4 inches, depth 2-15/16 inches. The 2-15/16 inch depth is the number to check first: in a 2x4 wall you have room, but in a 2x2 or furred-out wall, or where insulation or a stud-side obstruction sits behind, confirm you have the depth before nailing it off.
6) Is the ABB B118B-UPC outlet box UL Listed for inspection?
Yes, it is UL Listed under UL File E11461. That plus the Article 314 listing for non-metallic sheathed cable is what an inspector looks for on a residential or light commercial new-work rough-in.
7) Will this box hold a standard single receptacle or switch with a normal cover plate?
Yes. It is a single-gang configuration, so it takes one standard device, a duplex receptacle or a toggle or decorator switch, with a standard 1-gang wall plate. For two devices side by side you would need a 2-gang box.
8) Why is this outlet box blue, and does the color mean anything electrically?
The blue housing is jobsite identification, not a rating. PVC device boxes are commonly molded in blue so an electrician can spot the non-metallic device boxes across a rough-in at a glance. Electrically it behaves the same as any listed PVC box of the same volume.
