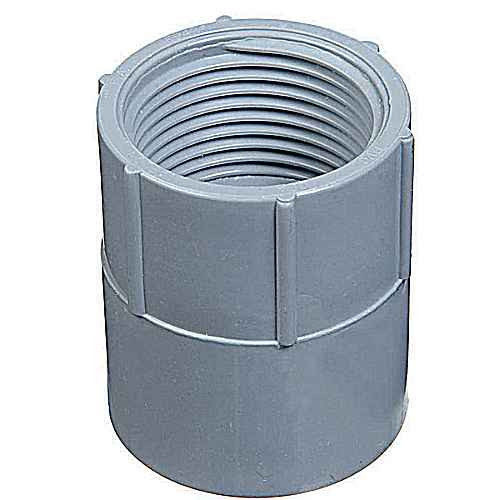

Carlon PVC Female Adapters - Schedule 40/80 Non-Metallic to Threaded Fittings and Metallic Systems

Carlon PVC Female Adapter Schedule 40 Gray Plastic Non-Metallic to Threaded System Connector, 100 Pack

(No reviews yet) Write a Review

Model: E942L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.28
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon PVC Female Adapter Schedule 40 Gray Plastic Non-Metallic to Threaded System Connector

Professional Non-Metallic to Threaded System Connection Solution

The Carlon PVC Female Adapter provides reliable connection between non-metallic conduits and threaded fittings or metallic systems. This Schedule 40 gray plastic adapter features female threads on one end and socket end on the other, delivering dependable performance for electrical conduit applications with UL E23018 listing for professional installations.

Professional Features & Benefits

  • Schedule 40 Construction: Provides robust wall thickness and durability for demanding electrical applications
  • Female Thread Design: Enables secure connection to threaded fittings and metallic systems with proper engagement
  • Gray Plastic Material: Offers corrosion resistance and consistent appearance for professional installations
  • UL E23018 Listed: Meets rigorous safety standards for electrical conduit coupling applications
  • Socket End Configuration: Allows direct connection to non-metallic conduit systems for versatile adaptation
  • Straight Model Design: Provides direct inline connection without directional changes for efficient routing

Technical Specifications

  • Application: For adapting non-metallic conduits to threaded fittings, metallic systems.
  • Brand Label: Carlon
  • Brand Name: Carlon
  • Department: Electrical
  • Effective Date: 20080116
  • Etim: EC001469 Protective hose adapter
  • Igcc: 5548 Electrical conduit coupling
  • Material Housing: Plastic
  • Material Quality: Other
  • Material Sealing: No sealing
  • Pipe Schedule: SCH 40
  • Product Color: Gray
  • Product Model: Straight
  • Product Type: Male & Female Adapters
  • Special Features: Female threads on one end, socket end on the other.
  • Special Functions: Female threads on one end, socket end on the other.
  • Standard: UL E23018
  • Standards: UL E23018
  • Total Length: 21.6mm
  • Unspsc: 39131707 Electrical conduit coupling
  • Wall Thickness: 0.15 in
  • With Outer Thread: N

Professional Applications

  • Residential Electrical Systems
  • Commercial Building Installations
  • Industrial Conduit Networks
  • Retrofit and Upgrade Projects
  • Mixed Conduit System Connections
  • Professional Electrical Contracting

Why Choose Carlon Quality?

Carlon delivers reliable electrical conduit solutions with UL E23018 listing and proven Schedule 40 construction. The gray plastic material provides consistent performance and professional appearance for demanding electrical applications.

Manufacturer Resources

Product Specs

Application:
For adapting non-metallic conduits to threaded fittings, metallic systems.
Brand Label:
Carlon
Brand Name:
Carlon
Department:
Electrical
Effective Date:
20080116
Etim:
EC001469 Protective hose adapter
Igcc:
5548 Electrical conduit coupling
Material Housing:
Plastic
Material Quality:
Other
Material Sealing:
No sealing
Pipe Schedule:
SCH 40
Product Color:
Grey
Product Model:
Straight
Product Type:
Female Adapters
Special Features:
Female threads on one end, socket end on the other.
Special Functions:
Female threads on one end, socket end on the other.
Standard:
UL E23018
Standards:
UL E23018
Total Length:
21.6mm
Unspsc:
39131707 Electrical conduit coupling
Wall Thickness:
0.15 in
With Outer Thread:
N
Product Group:
PVC Conduit & Fittings

Carlon E942L – Frequently Asked Questions

1) What size Carlon E942 female adapter do I need for 3/4 inch PVC conduit?
Trade size is what you order by, and the Carlon E942 female adapter runs 1/2 inch through 6 inch. For 3/4 inch conduit the part is E942E. The rest of the range: E942D (1/2), E942F (1), E942G (1-1/4), E942H (1-1/2), E942J (2), E942K (2-1/2), E942L (3), E942M (3-1/2), E942N (4), E942P (5), E942R (6). Two long line versions are also offered, E942NX9 in 4 inch and E942RX in 6 inch.
2) How does a PVC female adapter connect PVC conduit to a metal box or rigid steel fitting?
One end is a socket, the other is female thread. The socket takes the PVC conduit and gets solvent cemented; the female threaded end screws onto the male thread of a rigid metal nipple, a threaded hub, or a threaded fitting. That is the whole point of the E942, moving from non-metallic conduit into a threaded or metallic system. It has no outer thread, so if the box side needs a male thread going into a knockout, this is not the piece, you want a male terminal adapter instead.
3) Is the Carlon E942 female adapter Schedule 40 or Schedule 80?
Schedule 40, with a 0.15 inch wall. If your run is Schedule 80 PVC for physical damage protection, the socket outside diameters are common between schedules so it will still glue up, but the adapter itself carries the Schedule 40 wall thickness, which is the thing an inspector looks at when the spec calls for 80 throughout.
4) Are Carlon PVC female adapters UL listed for electrical conduit?
Yes. The E942 female adapter carries UL listing under file E23018, which is the listing electrical inspectors and MRO specs look for on PVC conduit fittings. That matters on institutional and commercial jobs where every fitting in the raceway has to be listed, not just the conduit.
5) What is the difference between the standard E942 adapter and the long line version?
Length. The long line adapters, E942NX9 in 4 inch and E942RX in 6 inch, have a deeper body than the standard E942N and E942R. Contractors reach for them on large-diameter runs where the extra socket depth gives more glue surface and more room to work the joint. For a straightforward 4 inch or 6 inch termination, the standard E942N or E942R does the job.
6) Does the Carlon E942 female adapter come with a gasket or seal it wet locations?
There is no sealing element in the adapter, no gasket and no O-ring. The socket side seals by solvent cement, and the threaded side seals on the thread engagement, so if the location calls for a watertight termination you supply the sealant or an appropriate sealing washer at the threaded connection. Plan for that on outdoor pull boxes and below-grade transitions.
7) Will a gray PVC female adapter match the conduit already on my building?
Standard electrical PVC conduit is gray, and the E942 adapter is gray plastic, so it matches existing Schedule 40 raceway on exposed runs rather than standing out. Property managers replacing a damaged termination on an existing wall run get the same appearance without repainting.
8) Is the E942 a straight adapter or does it change direction?
Straight, inline only. The E942 carries the run through in the same axis and does not offset or turn it. If the transition to the threaded fitting needs to change direction, you make the turn with an elbow ahead of the adapter rather than expecting the fitting to do it.
9) Can I buy Carlon E942 female adapters in bulk for a whole job?
They are packed 100 to a pack, which is how electrical contractors and distributors buy terminations for a full build out rather than counting singles. The pack is per trade size, so a job running mixed 1/2 inch and 1 inch needs E942D and E942F ordered separately.
