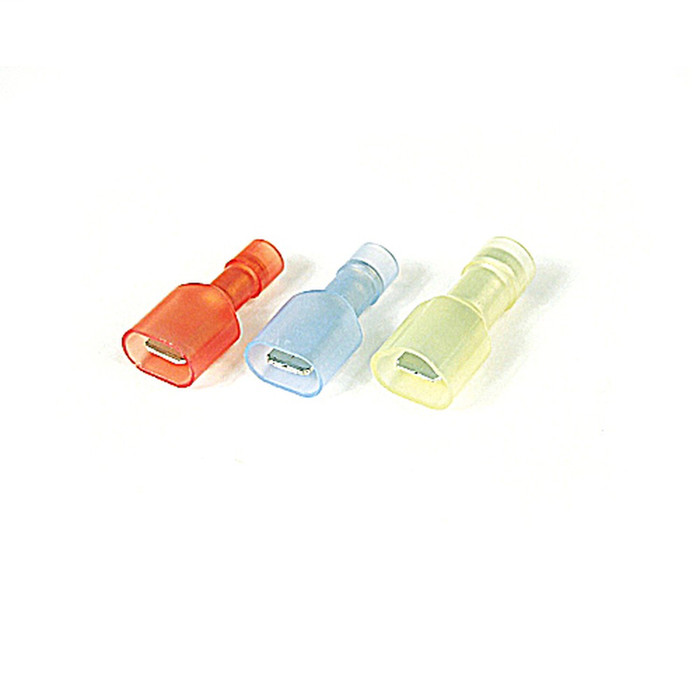

Catamount TNF10-250MD-XV Fully Insulated Male Disconnect, 250 Series, Yellow, Pack of 100

Catamount TNF10-250MD-XV Fully Insulated Male Disconnect, 250 Series, Yellow, Pack of 100

(No reviews yet) Write a Review

Model: TNF10-250MD-XV

In Stock (leaves warehouse same day if ordered before 3pm ET)

$85.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Catamount TNF10-250MD-XV Fully Insulated Male Disconnect, 250 Series, Yellow

The Catamount TNF10-250MD-XV is a fully insulated nylon male disconnect from the 250 Series, engineered for a wire range of 12-10 AWG. Finished in yellow nylon insulation for quick visual wire-range identification, this disconnect is built from brass with a copper sleeve for reliable, code-compliant terminations. It is UL Listed (UL E9809) and designed for use with application tools WT112M and CM2000A, making it a dependable choice for electrical panels, control cabinets, and equipment wiring requiring a quick-connect male disconnect terminal.

Key Features

  • Wire Range: Rated for 12-10 AWG conductors, matched to the 250 Series male disconnect design.
  • Durable Construction: Brass terminal with a copper sleeve for solid conductivity and long-term durability.
  • Fully Insulated: Molded nylon insulator combined with a metal insulation sleeve for added mechanical protection and touch-safe insulation.
  • Internal Barrel Serrations: Improve wire grip and pull-out resistance for a more secure termination.
  • Funnel Entry: Simplifies wire insertion during assembly, speeding up installation.
  • Color-Coded Insulation: Yellow nylon insulation (PA material) for fast wire-range identification on the job.
  • Compatible Application Tools: Designed for use with WT112M and CM2000A crimping tools.

Certifications & Compliance

  • UL Listed (UL E9809)

Technical Specifications

  • Material insulation: PA
  • Insulation: Nylon
  • Type: Disconnects
  • Colour insulation: Yellow
  • Material: Brass with Copper Sleeve
  • Standard: UL E9809
  • Inner Quantity: 75
  • Outer Quantity: 900
  • Special Features: Fully Insulated. Metal Insulation Sleeve. Molded Insulator. Internal Barrel Serrations. Funnel Entry.

Typical Applications

  • Electrical Panel and Control Cabinet Wiring
  • Quick-Connect Terminal Applications
  • Industrial and Commercial Equipment Wiring
  • Wire Harness Assembly
  • General 12-10 AWG Wire Termination

Why Catamount?

Catamount's TNF10-250MD-XV male disconnect combines a brass and copper sleeve construction with fully insulated nylon molding, internal barrel serrations, and funnel entry design for a secure, efficient termination. Backed by UL Listing (UL E9809), it delivers the code-compliant reliability electrical professionals need for demanding wire-termination applications.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
CTM-20260924
Product Type:
Quick Disconnect Terminal
Product Finish:
Nylon
Listing:
UL E9809
Configuration:
250 Series Male
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Product Material:
Brass with Copper Sleeve
Product Color:
Yellow
Pack size (unit):
100
Product Group:
Wire Connectors & Terminals

Catamount TNF10-250MD-XV – Frequently Asked Questions

1) What wire size does the Catamount TNF10-250MD-XV male disconnect accept?
The TNF10-250MD-XV takes 12-10 AWG stranded conductors, and the yellow nylon insulation is the standard color code for that range. If you are terminating 16-14 AWG you need the blue-coded version instead, and 22-18 AWG uses red.
2) Is this Catamount male disconnect UL Listed for panel and control cabinet wiring?
Yes, it carries UL Listing under file UL E9809, which is what inspectors look for on terminations inside electrical panels, control cabinets, and equipment wiring.
3) What crimp tool do I need for the Catamount TNF10-250MD-XV?
Catamount specifies the WT112M and CM2000A application tools for this disconnect. It is a fully insulated barrel with a metal insulation sleeve, so use the insulated-terminal nest sized for the 12-10 AWG (yellow) range, not a bare-terminal die.
4) Is a brass terminal with a copper sleeve good enough for a vibration-prone equipment install?
The terminal body is brass with a copper sleeve, and the barrel has internal serrations plus a metal insulation sleeve under the nylon. The serrations bite the strands for pull-out resistance and the metal sleeve crimps down on the insulation, which is what keeps the conductor from flexing at the barrel mouth on vibrating equipment.
5) Fully insulated versus non-insulated male disconnect: which should I be using?
The TNF10-250MD-XV is fully insulated, with a molded nylon insulator covering the barrel and the back of the tab. That is the one you want in a crowded panel or cabinet where adjacent terminals or a metal enclosure wall could contact the crimp. Non-insulated versions are for use under a separate sleeve or inside a connector housing that provides the insulation.
6) How many male disconnects come in a pack of the TNF10-250MD-XV?
One pack is 100 pieces. Catamount's own carton structure is 75 inner and 900 outer, so if you are standardizing a harness shop or a panel build, order by the 100-piece pack and plan quantities around that.
7) What is the exact part number to order this yellow 250 Series male disconnect?
Order Catamount part TNF10-250MD-XV. That is the single model on offer: 250 Series male, 12-10 AWG, yellow nylon, 100-piece pack.
