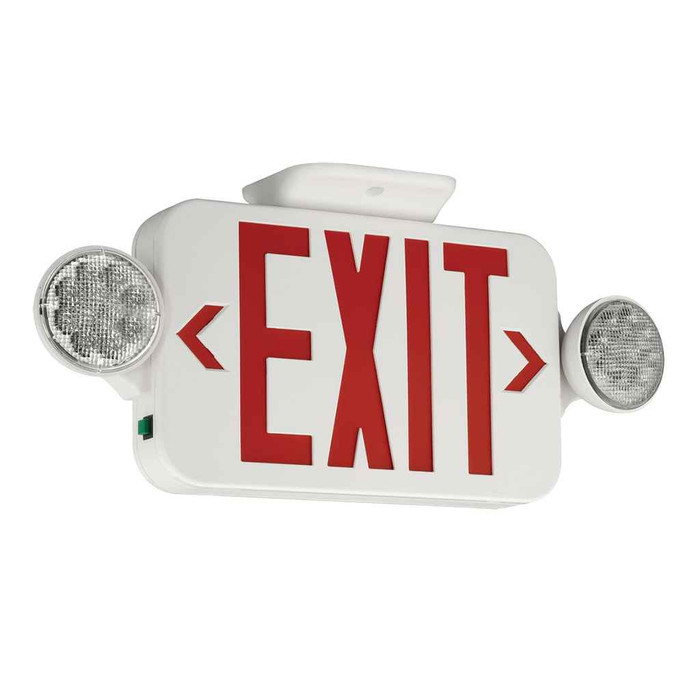

CCRRC
CCRRC - spec sheet
Features
- Includes Self Test/Self Diagnostic models
- 120/277VAC, 60Hz input
- UL924 Damp Location Listed
- Remote Capacity (RC) models have a minimum runtime of 120 minutes when no remotes are installed
- Full 2 Year Warranty
- Remote Capactiy or extended runtime option
- Field Selectable Red or Green Exit Signs
- LED life-cycle of more than 10 years
- Available in black or white finish
- Test switch and Ac-On indicator
- Fully adjustable LED Lamps
- Molded-in template for quick installation
CCRRC - spec sheet
Manufacturer Resources
Product Specs
- Department:
- Electrical
Compass COM-CCRRC – Frequently Asked Questions
1) Will the Compass CCRRC combo exit sign work on both 120V and 277V circuits?
The Compass CCRRC accepts 120/277VAC, 60Hz input, so the same unit drops onto either a 120V branch circuit or a 277V circuit in a commercial building. That dual-voltage input is what lets a facility standardize on one part number across mixed-voltage areas.
2) Does the CCRRC meet the 90 minute emergency runtime requirement?
Yes, with margin. The Remote Capacity (RC) version has a minimum runtime of 120 minutes when no remote heads are installed, which exceeds the 90 minute emergency illumination duration inspectors look for. Adding remote heads draws down that reserve, so size remotes against the load rather than assuming the full 120 minutes.
3) Does the CCRRC self test, or does someone have to walk the building every month?
Self Test/Self Diagnostic models are part of the CCRRC range, which runs the code-required functional tests automatically instead of staff pressing a button on every unit. There is also a manual test switch and an AC-On indicator on the housing for a quick visual check during rounds. For a property manager with dozens of signs, the self test version is the one that cuts the monthly labor.
4) Do I have to order the CCRRC exit sign in red or green letters separately?
No. The exit legend color is field selectable between red and green on the unit itself, so one part number covers both. That matters for jurisdictions or campuses that specify green when the rest of the building is red, since you are not stocking two SKUs.
5) Can I add remote emergency heads to the CCRRC, or do I need a separate battery unit?
The RC (Remote Capacity) configuration of the CCRRC is built to feed remote heads, which is why it is spec'd with a 120 minute minimum runtime with no remotes connected. If your corridor needs illumination beyond what the two integral adjustable LED lamps reach, the RC unit handles it without a second battery pack. For paths needing no remotes at all, the extended runtime option is the other way to use that capacity.
6) What is the exact part number to order for the Compass combo exit sign with remote capacity?
Order it as Compass CCRRC. That is the manufacturer part number as well as the model designation, and the trailing RC in the designation is the Remote Capacity configuration.
7) Will the CCRRC match white ceilings, or is it only available in black?
Both. The CCRRC comes in a black or white finish, so you can match it to finished lobby ceilings or to exposed structure and conduit in back-of-house areas.
8) Is a mounting template included with the CCRRC, or do I need to lay out the holes myself?
A template is molded into the back of the housing, so the installer marks straight off the unit instead of hunting for a paper template. Combined with the dual 120/277V input, that keeps a multi-unit retrofit moving without extra trips.
9) How long before I have to re-lamp a CCRRC combo unit?
The LED light source is rated for a life-cycle of more than 10 years, so re-lamping is effectively off the maintenance schedule. Battery service, not lamps, is what you plan around on these units.
