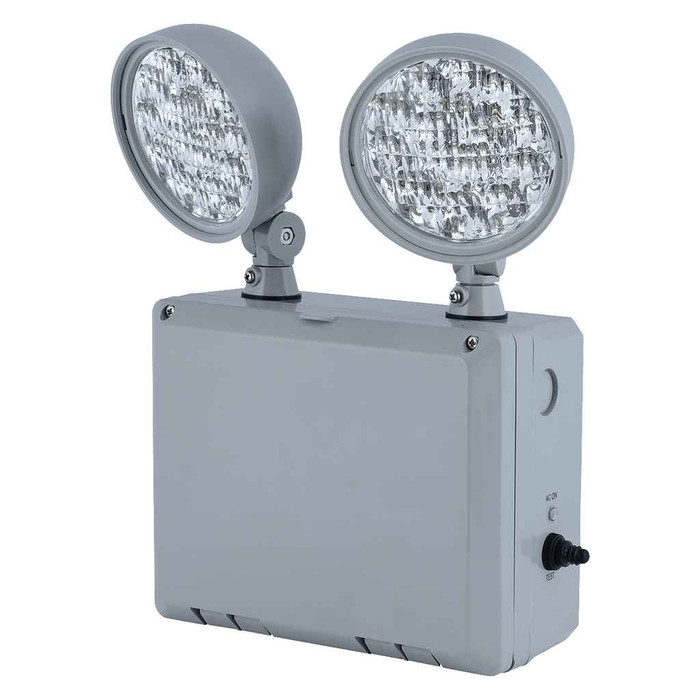

CWRD
CWRD - spec sheet
Features
- Dual-voltage 120/277 AC input
- Wet Location Listed(0°C to 50°C)
- Provided with water-proof test switch and AC-On indicator
- Quick installation
- LED life-cycle of more than 10 years
- Includes long-life 9.6VDC Nickel Cadmium battery for UL recognized 90 minute operation
- Remote capacity or extended runtime option
- Fully adjustable lamp-heads
CWRD - spec sheet
Manufacturer Resources
Product Specs
- Department:
- Electrical
Compass COM-CWRD – Frequently Asked Questions
1) Can the Compass CWRD emergency light be installed outdoors or in a damp parking garage?
The Compass CWRD is Wet Location Listed for ambient temperatures from 0C to 50C, so it can go in exterior soffits, open parking decks, loading docks and washdown areas. The test switch is water-proof, which matters on a unit that gets rained on or hosed down during cleaning.
2) Will the CWRD emergency unit work on both 120V and 277V circuits?
Yes. The CWRD takes a dual-voltage 120/277 AC input, so the same unit can be wired to a 120V branch circuit in a small building or a 277V circuit on a commercial lighting panel. For a property manager standardizing across mixed-voltage buildings, that means one part number instead of two.
3) How long will the Compass CWRD stay lit if the power drops?
The CWRD carries a 9.6VDC nickel cadmium battery for UL recognized 90 minute operation, which is the standard emergency egress duration inspectors look for. The AC-On indicator tells you the unit is being charged, and the test switch lets you confirm transfer to battery during monthly checks.
4) Can I add remote heads to the Compass CWRD to cover a second stairwell or corridor?
The CWRD is offered with a remote capacity or extended runtime option, so the unit can either feed remote emergency heads or run longer on its own heads. Those are alternative options, not both at once, so decide at order time whether the opening needs remote coverage or a longer runtime.
5) What is the exact part number to order the Compass wet location emergency light?
Order it as Compass Products model CWRD. That is the single manufacturer part number for the dual-voltage wet location LED emergency unit, with no finish or voltage suffix to specify, though the remote capacity and extended runtime options are called out separately on the Compass spec sheet.
6) Can the light beams on the CWRD be aimed down a hallway after mounting?
Both lamp heads are fully adjustable, so after the unit is mounted you can aim them along the path of egress rather than straight out from the wall. That is what lets one unit cover a corridor run or a stair landing instead of just lighting the wall beneath it.
7) Do the lamps in the Compass CWRD need relamping like older incandescent emergency lights?
No. The CWRD uses LED lamp heads with a life-cycle of more than 10 years, so there is no bulb replacement cycle the way there is on sealed-beam incandescent units. Maintenance comes down to the periodic test and eventual battery replacement.
