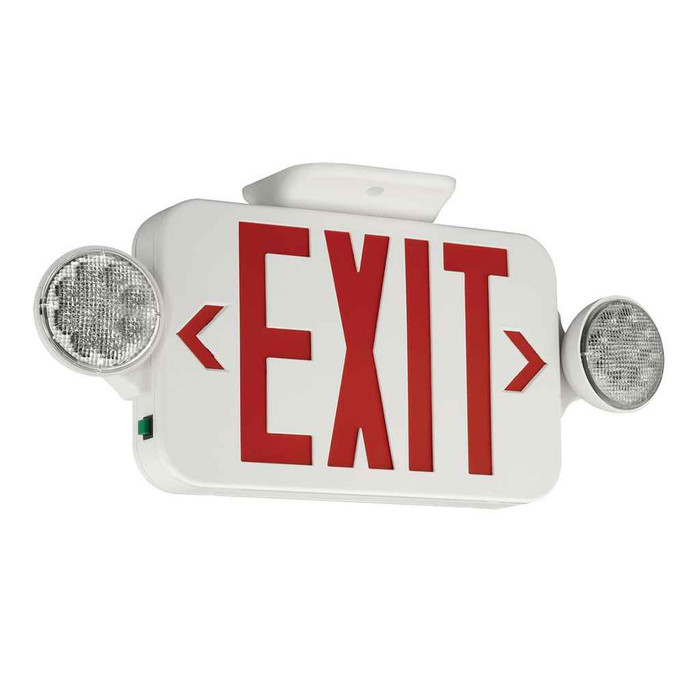

CCGRC
CCGRC - spec sheet
Features
- Field Selectable Red or Green Exit Signs
- Test switch and Ac-On indicator
- LED life-cycle of more than 10 years
- Includes Self Test/Self Diagnostic models
- Full 2 Year Warranty
- Molded-in template for quick installation
- Available in black or white finish
- 120/277VAC, 60Hz input
- Remote Capactiy or extended runtime option
- Fully adjustable LED Lamps
- Remote Capacity (RC) models have a minimum runtime of 120 minutes when no remotes are installed
- UL924 Damp Location Listed
CCGRC - spec sheet
Manufacturer Resources
Product Specs
- Department:
- Electrical
Compass COM-CCGRC – Frequently Asked Questions
1) Can the Compass CCGRC exit sign be set to red or green letters in the field?
Yes. The CCGRC is field selectable for either red or green legend, so one part number covers both. That matters if your jurisdiction or facility standard calls for green while the rest of your stock is red, you don't need to carry two SKUs.
2) Will the CCGRC run on both 120V and 277V circuits?
It accepts 120/277VAC, 60Hz input, so the same unit works on a 120V branch circuit in a tenant space or a 277V circuit in a commercial lighting panel. No separate voltage version to specify.
3) Is the Compass CCGRC combination exit sign rated for damp locations like a parking garage or loading dock?
The CCGRC is UL924 Damp Location Listed, so it is suitable for damp areas such as covered loading docks, stairwells with exterior exposure, and parking structures. Damp rated is not wet rated, so it should not be used where it is subject to direct water.
4) How long does the CCGRC battery run the emergency lamps during a power outage?
The Remote Capacity (RC) version delivers a minimum 120 minute runtime when no remote heads are wired to it. That meets the common 90 minute emergency egress duration with margin. Adding remote fixtures draws from the same battery, so the available runtime drops as you load remote capacity.
5) Can I add remote emergency heads to the Compass CCGRC, or do I need a separate inverter?
Remote capacity is built in as an option on the CCGRC, so you can feed additional remote heads from the unit rather than installing a separate central inverter for a nearby corridor or back-of-house area. An extended runtime option is also offered if you need longer duration instead of remote load.
6) Does the CCGRC have self-testing, so my maintenance staff don't have to push a button on every sign?
Self Test/Self Diagnostic models are part of the CCGRC offering, which automates the required periodic battery and transfer testing. Standard units carry a manual test switch and an AC-On indicator for walk-by verification. For a property manager with dozens of signs across a building, the self-diagnostic version is what cuts the monthly inspection round.
7) Can I aim the emergency lamp heads on the CCGRC after it's mounted?
The LED lamp heads are fully adjustable, so you can aim them down a corridor or across a stair landing after the unit is on the wall or ceiling. That is what lets a single combo unit cover the path of egress instead of adding a separate remote head.
8) What finishes does the Compass CCGRC exit sign come in?
Black or white housing. White blends with most painted drywall and ceiling grid; black is the usual pick in exposed-structure retail, restaurants, and dark-ceiling back-of-house spaces where you don't want the fixture to read.
9) How hard is the CCGRC to install on a new rough-in?
The housing has a molded-in mounting template, so the installer lays out the fasteners off the fixture itself rather than a paper template. With a single 120/277VAC feed and no voltage selection to set, it is a quick hang for a job with a lot of repeat locations.
10) Will I be relamping the Compass CCGRC exit sign every few years?
No. The CCGRC uses LED illumination with a rated life cycle of more than 10 years, so the maintenance item over the life of the unit is the battery, not the lamps. That is the difference that matters for an MRO budget on a building with a hundred exit signs.
