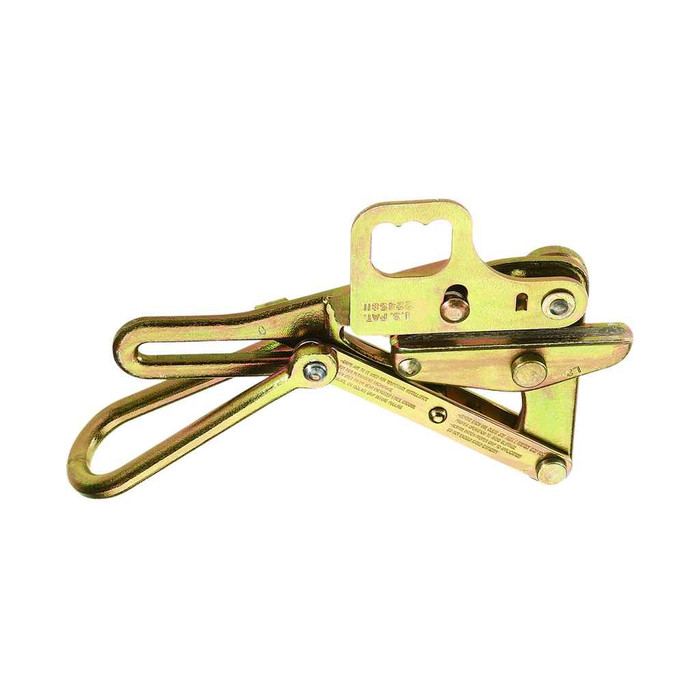

Chicago Grip w/Latch, Bare Conductors to 0.4-Inch
1656-20H - spec sheet
Warnings
- Always match proper size and type of grip to application.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Grips are to be used for temporary installation, not for permanent anchorage.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Do not exceed rated capacity.
Features
- Made in USA
- When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
- Grip may be placed on wire with hot-line stick
- Hot-line grips for both bare and insulated conductors
- Standard hot-line grips are not supplied with springs or lock-open features
- When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example - S1684-5H)
1656-20H - spec sheet
Manufacturer Resources
Product Specs
- Cable Diameter:
- 0.2" to 0.4" (5.08 to 10.16 mm)
- Cable Type:
- Copper, ACSR, AAC
- Depth:
- 8.0000 in
- Height:
- 2.2500 in
- Hot Latch:
- Yes
- Jaw Length:
- 4" (10.2 cm)
- Jaw Type:
- Round
- Locking Handle:
- Yes
- Maximum Safe Load:
- 4500 lb (2041 kg)
- Spring:
- No
- Swing Latch:
- No
- Type:
- Chicago Grip
- Weight:
- 0.1000 lbs
- Width:
- 6.0000 in
