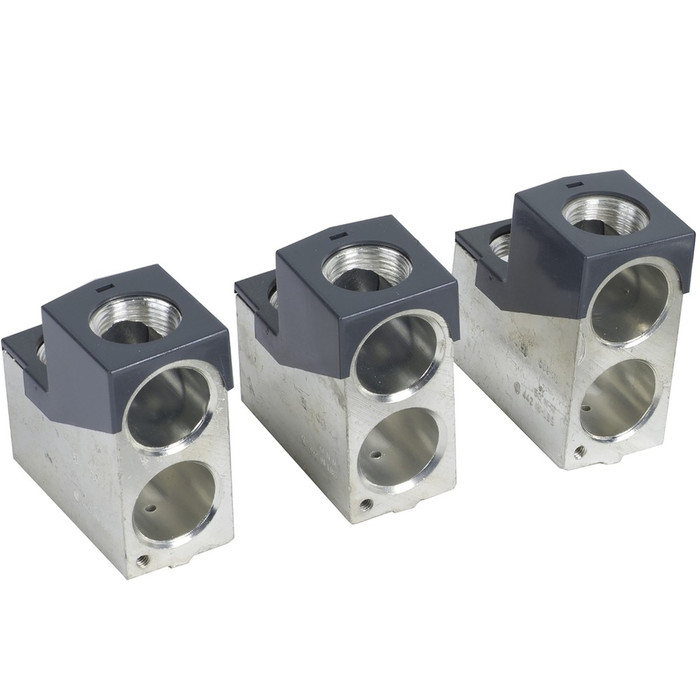

Square D PowerPacT L Mechanical Lug Kit, 400-600A, 3-Pole

Square D PowerPacT L Mechanical Lug Kit, 400-600A, 3-Pole

The Square D PowerPacT L Mechanical Lug Kit is a connection accessory engineered for PowerPacT L-Frame molded case circuit breakers, supporting a 400-600 A line rated current range in a 3-pole (3P) configuration. Each kit is a mechanical lug terminal designed for aluminum or copper wire connection at AWG 2/0, with lugs mounted by screws for a secure downstream or upstream termination. Built to global standards, this accessory is compatible with PowerPacT L circuit breakers used across commercial and industrial electrical installations.

Key Features

• Line Rated Current: 400-600 A rating matched to PowerPacT L circuit breakers for feeder and branch applications.
• Pole Configuration: 3-pole (3P) design for three-phase circuit breaker installations.
• Mechanical Lug Terminal: Mechanical lug terminal kit for aluminum or copper wire connection, accepting AWG 2/0 cable.
• Quantity Per Set: Set of 3 lugs, with three lugs included per accessory kit.
• Connection Points: Configured for 2 cables per kit, suitable for downstream or upstream connection.
• Mounting Mode: Lugs are mounted by screws for a dependable mechanical connection.
• Compatibility: Compatible with PowerPacT L circuit breakers as a dedicated connection accessory.

Certifications & Compliance

• Complies with UL 489 listed, CSA, and IEC standards
• Complies with UL 50 and CSA listing requirements, and ANSI Certified
• Mercury Free
• RoHS Eur Full Compliance Status: Pro-active compliance (product out of EU RoHS legal scope)

Technical Specifications

• Warranty: 18 months
• Take Back: No
• Tier: 2
• Returnability: Yes
• Warranty Period: 18 months
• Sustainable Packaging: Yes
• Mercury Free: Yes
• Packaging Without Single Use Plastic: Yes
• Tier Id: 2
• ROHS Eur In Scope: No
• Recycled Metal Content At Cr Level: 0 %
• Legacy WEEE Scope: Out
• Poles Description: 3P
• Packaging Made With Recycled Cardboard: Yes
• Serviceability: No
• Number Of Cables: 2
• With Recycled Cardboard: Yes
• Without Single Use Plastic: Yes
• ROHS Eur Status: Compliant with Exemptions
• ROHS Exemption Information: Yes
• Traceability: No
• Mounting Mode: by screws

Typical Applications

• Panelboard and Switchboard Wiring
• Commercial and Industrial Electrical Installations
• PowerPacT L Circuit Breaker Termination
• Feeder and Branch Circuit Connections
• New Construction and Retrofit Panel Upgrades

Why Square D?

Square D backs the PowerPacT L Mechanical Lug Kit with UL 489, UL 50, and CSA listing compliance plus ANSI certification, along with a mercury-free, RoHS-compliant build and sustainable, single-use-plastic-free packaging. This makes it a reliable, code-compliant connection accessory for professional electrical installations relying on PowerPacT L circuit breakers.
