Schneider PowerPact L-Frame Mechanical Lug Kit 400-600A 3-Pole Aluminum Connection Accessory

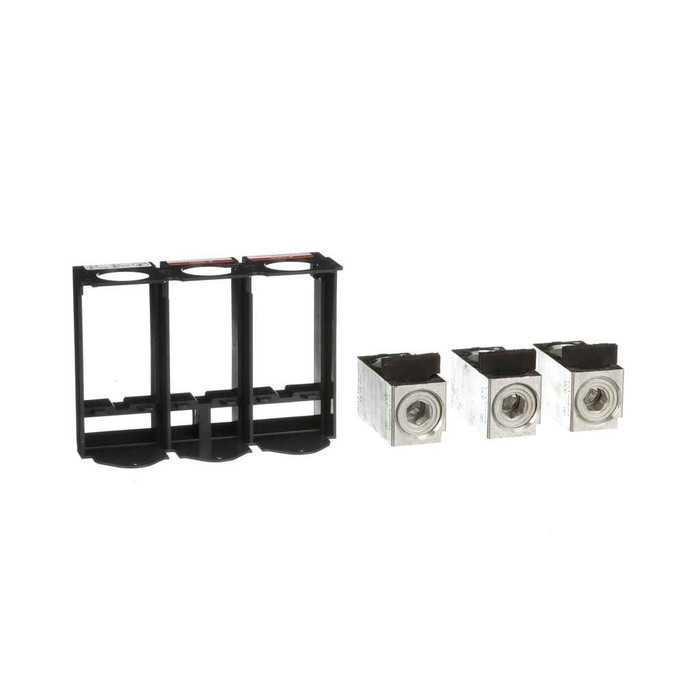

Schneider PowerPact L-Frame Mechanical Lug Kit

Professional Connection Accessory for PowerPact L Circuit Breakers

The Schneider PowerPact L-Frame Mechanical Lug Kit provides reliable electrical connections for PowerPact L circuit breakers rated 400-600A. This aluminum construction connection accessory features 3-pole configuration with AWG 3/0 to 500 kcmil cable compatibility, delivering professional-grade performance for commercial and industrial electrical installations. The screw-mounted design ensures secure connections while the set of 3 lugs accommodates standard 3-pole circuit breaker applications.

Professional Features & Benefits

• 400-600A Current Rating: Supports high-amperage applications with reliable current-carrying capacity for demanding electrical systems.
• Aluminum Construction: Lightweight yet durable material provides excellent conductivity while reducing overall system weight and installation complexity.
• 3-Pole Configuration: Complete set of 3 lugs ensures proper connection for standard three-phase electrical systems and circuit breaker installations.
• AWG 3/0 to 500 kcmil Compatibility: Accommodates a wide range of cable sizes for flexible installation options and system design requirements.
• PowerPact L-Frame Compatibility: Specifically designed for seamless integration with PowerPact L circuit breakers ensuring proper fit and electrical performance.
• Screw Mounting System: Secure mechanical connection method provides reliable long-term performance and ease of installation.
• Mercury-Free Design: Environmentally responsible construction meets modern safety and environmental standards.

Technical Specifications

• Accessory Separate Part Category: connection accessory
• Awg Gauge: AWG 3/0
• China Rohs In Scope: No
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Kcmil Size: 500 kcmil
• Legacy Weee Scope: Out
• Line Rated Current: 400-600 A
• Mercury Free: Yes
• Mounting Mode: by screws
• Number Of Cables: 2
• Package Weight Lbs: 584.000 g
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: Yes
• Poles Description: 3P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Compatibility: PowerPact L-Frame
• Product Contributes To Saved And Avoided Emissions: No
• Product Material: aluminium
• Product Or Component Type: mechanical lug
• Quantity Per Set: set of 3
• Range: PowerPact
• Range Of Product: PowerPact multistandard
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 1905
• Rohs Eur Full Compliance Status: Pro-active compliance (Product out of EU RoHS legal scope)
• Rohs Eur Full Compliance Status Id: PRO_ACTIVE_COMPLIANCE
• Rohs Eur In Scope: No
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: At least in Europe
• Serviceability: No
• Sustainable Packaging: Yes
• Take Back: No
• Tier: 2
• Tier Id: 2
• Traceability: No
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: Yes
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Systems
• Industrial Power Distribution
• Manufacturing Facility Installations
• Data Center Power Infrastructure
• Healthcare Facility Electrical Systems
• Educational Institution Power Distribution
• Retail and Office Building Applications

Why Choose Schneider Quality?

Schneider PowerPact connection accessories deliver proven reliability with aluminum construction and mercury-free design. The sustainable packaging with recycled cardboard and plastic-free materials demonstrates environmental responsibility while maintaining professional performance standards for critical electrical infrastructure applications.
