Square D PowerPacT P Mechanical Lug Kit, Circuit Breaker Accessory

Square D PowerPacT P Mechanical Lug Kit, Circuit Breaker Accessory

The Square D PowerPacT P Mechanical Lug Kit is a field-installable connection accessory engineered for PowerPacT P circuit breakers (PGL, PLL, and PJL frame types) rated 1200A. This aluminum mechanical lug kit accepts AWG 3/0 through 750 kcmil aluminum conductors, or AWG 3/0 through 600 kcmil aluminum/copper conductors, for upstream or downstream connections. Complying with UL 489 listed, CSA, and IEC standards, it lets panel builders, OEMs, and contractors modify breaker terminations at any point in the design and build cycle.

Key Features

• Wire Range: Accepts AWG 3/0...750 kcmil aluminum or AWG 3/0...600 kcmil aluminum/copper conductors for flexible termination options.
• Durable Construction: Aluminum lug terminal kit designed for reliable aluminum wire connections.
• Mechanical Connection: Fixing by screws with a tightening torque of 50-50 N.m across 95-380 mm² (AWG 3/0...750 kcmil) for a secure termination.
• Amperage Rating: 1200-1200A line rated current matches PowerPacT P frame requirements.

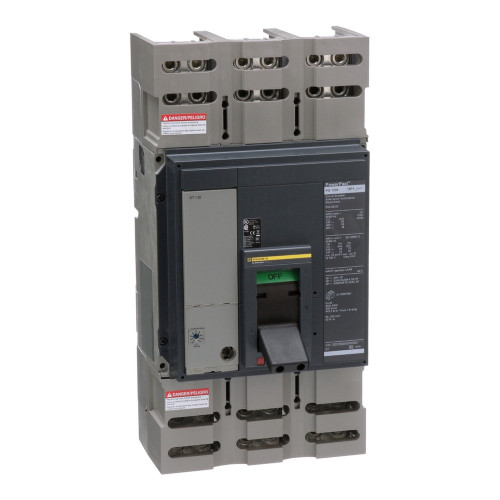

• Breaker Compatibility: Compatible with PowerPacT P circuit breakers, including PGL, PLL, and PJL types.

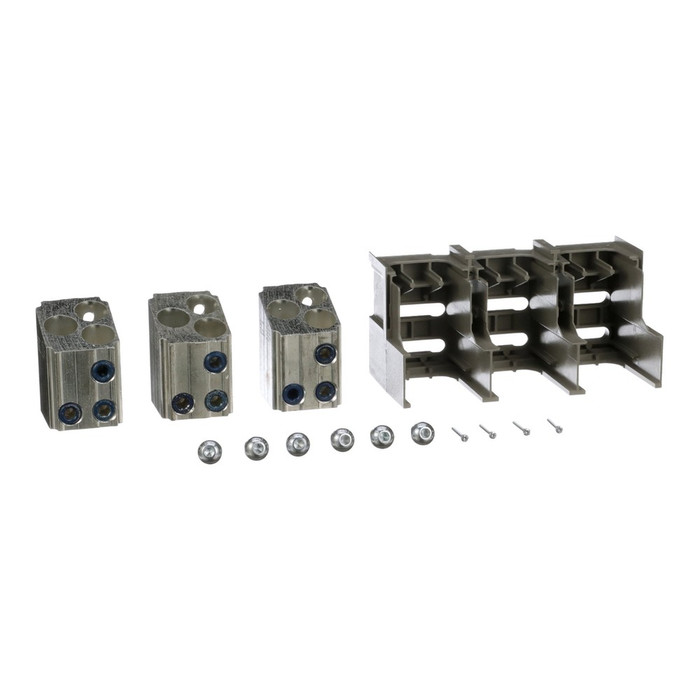

• Kit Contents: Includes three lugs and required hardware per accessory kit (set of 3), unit mount.
• Connection Location: Suitable for upstream or downstream connection points.

Certifications & Compliance

• UL Listed (UL 489)
• CSA Certified
• Complies with IEC Standards
• Mercury Free

Technical Specifications

• Warranty: 18 months
• Take Back: No
• Tier: 1
• Returnability: Yes
• Warranty Period: 18 months
• Sustainable Packaging: No
• Mercury Free: Yes
• Packaging Without Single Use Plastic: No
• ROHS Eur In Scope: No
• Recycled Metal Content At Cr Level: 0 %
• Legacy WEEE Scope: Out
• Packaging Made With Recycled Cardboard: Yes
• Serviceability: No
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• ROHS Eur Status: Compliant with Exemptions
• ROHS Exemption Information: Yes
• Traceability: No
• Mounting Mode: unit mount
• ROHS Eur Full Compliance Status: Pro-active compliance (Product out of EU RoHS legal scope)
• Country of Origin: United States

Typical Applications

• Commercial and Industrial Panelboard Assemblies
• Circuit Breaker Retrofits and Field Upgrades
• Panel Builder and OEM Control Panel Wiring
• Aluminum Conductor Termination in Switchgear
• Contractor Electrical Installations

Why Square D?

Square D backs the PowerPacT P Mechanical Lug Kit with an 18-month warranty, UL 489 listing, and CSA certification for code-compliant performance on professional electrical projects. Made in the United States and built mercury free, this aluminum lug kit gives panel builders, OEMs, and contractors a dependable way to terminate 3/0 AWG to 750 kcmil conductors on PowerPacT P circuit breakers.
