Square D PowerPacT P-Frame 600V Circuit Breaker

Square D PowerPacT P-Frame 600V Circuit Breaker

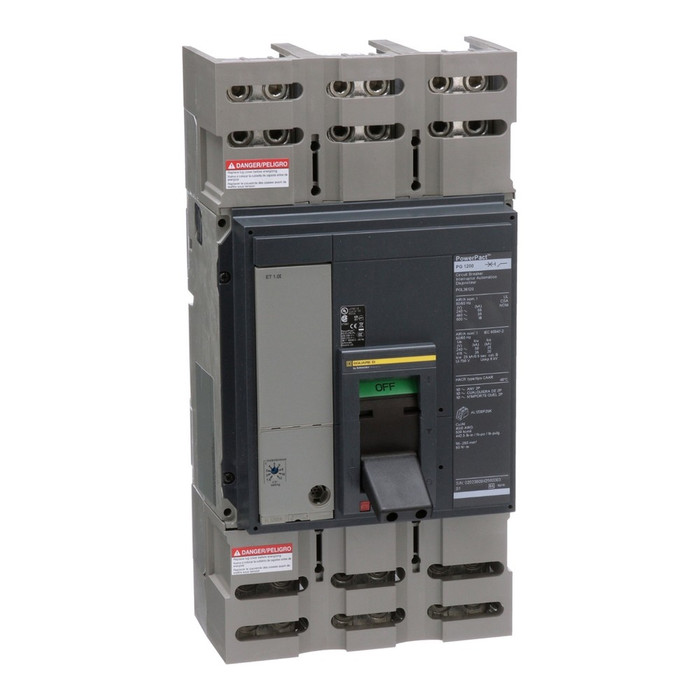

The Square D PowerPacT P-Frame 600V Circuit Breaker is a molded case breaker built to protect electrical systems from overloads and short circuits. Rated 600 V AC 50/60 Hz per UL 489, with a 750 V insulation voltage (Ui) and 8 kV impulse withstand voltage (Uimp) per IEC 60947-2, this frame suits demanding industrial and commercial power distribution. It is offered with a fixed long-time electronic trip unit (ET 1.0I) or Micrologic trip units, in 2, 3, and 4 pole configurations, with line and load lugs.

Key Features

• Electrical Connection: Line and load lugs simplify field wiring.
• Trip Unit Technology: Electronic, basic ET 1.0I long-time trip unit for dependable overload protection.
• Rated Operational Voltage (Ue): 600 V AC 50/60 Hz per UL 489.
• Rated Insulation Voltage (Ui): 750 V per IEC 60947-2.
• Rated Impulse Withstand Voltage (Uimp): 8 kV per IEC 60947-2 for surge resilience.
• Wire Range: Accepts 4 x AWG 3/0...500 kcmil aluminum/copper conductors at the lugs.
• IP Degree of Protection: Front cover rated IP40.
• Configuration Flexibility: Available in 2, 3, and 4 pole designs, standardizing mounting holes, handle locations, and trim dimensions across a control panel lineup.

Certifications & Compliance

• UL Listed (UL 489)
• CSA Certified
• NOM Certified (NOM-003-SCFI-2000)
• Meets NEMA and IEC 60947-2 standards

Technical Specifications

• Warranty: 18 months
• Warranty Period: 18 months
• Sustainable Packaging: No
• Mercury Free: Yes
• Packaging Without Single Use Plastic: No
• Tier Id: 1
• ROHS Eur In Scope: Yes
• Recycled Metal Content At Cr Level: 0 %
• Poles Description: 3P
• Serviceability: Yes
• With Recycled Cardboard: Yes
• WEEE Product Category: 4
• China ROHS In Scope: No
• Return Indicator: Y
• Take Back: No
• Quantity Per Set: 1
• Tier: 1
• Returnability: Yes
• Field Service Division: PPIBS
• Installation Carbon Footprint: 2.96430440961463
• Long Time Pick Up Adjustment Range: 1 In
• Wire Stripping Length: 30 mm
• Ambient Air Temperature For Storage: -50-85 °C

Typical Applications

• Industrial and Commercial Electrical Distribution
• Control Panel Main Disconnect
• Panelboard and Switchboard Protection
• OEM and Panel Builder Control Panel Design
• Overload and Short-Circuit Protection

Why Square D?

Square D backs the PowerPacT P-Frame with UL, CSA, and NOM certifications, an IP40-rated front cover, and mercury-free construction supported by an 18-month warranty. Standardized mounting holes, handle locations, and trim dimensions make it easy for contractors and panel builders to design and service reliable, code-compliant electrical distribution equipment.
