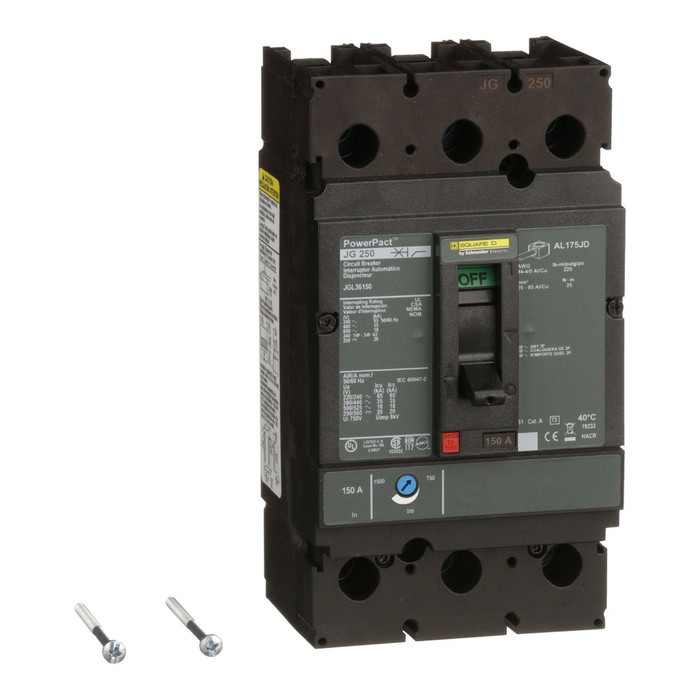

Square D PowerPacT J 3-Pole Thermal Magnetic Circuit Breaker, 600VAC, 18kA

Square D PowerPacT J 3-Pole Thermal Magnetic Circuit Breaker, 600VAC, 18kA

(No reviews yet) Write a Review

Model: 546288

In Stock (leaves warehouse same day if ordered before 3pm ET)

$30.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D PowerPacT J 3-Pole Thermal Magnetic Circuit Breaker, 600VAC, 18kA

The Square D PowerPacT J 3-Pole Thermal Magnetic Circuit Breaker protects electrical systems from overloads and short circuits with a rated operational voltage (Ue) of 600 V AC and an 18kA rating, built to IEC 60947-3 standards. This 3-pole, lug-connected breaker uses a thermal magnetic trip unit rated for 80% continuous duty and is suitable for industrial and commercial distribution applications. Line and load lugs accept AWG 3/0...350 kcmil aluminum/copper terminals with a 25-25 N.m tightening torque range.

Key Features

  • Configuration: 3-Pole design for multi-phase circuit protection.
  • Trip Type: Thermal magnetic trip unit rated 80% for overload and short-circuit protection.
  • Electrical Connection: Line and load lugs accepting AWG 3/0...350 kcmil aluminum/copper terminals, 25-25 N.m tightening torque.
  • Voltage Rating: 600 V AC 50/60 Hz (Ue) rated operational voltage per IEC 60947-3; 750 V (Ui) rated insulation voltage per IEC 60947-2.
  • Interrupt Rating: 18kA short-circuit interrupt capacity.
  • Degree of Protection: Front cover rated IP40.
  • Circuit Breaker Application: HACR rated for heating, air conditioning, and refrigeration equipment.
  • Isolation: Suitable for isolation per IEC 60947-2.

Certifications & Compliance

  • UL Listed
  • CSA Certified
  • NOM Certified
  • CE Marked
  • IEC 60947-2 Compliant
  • NEMA Standards
  • NOM-003-SCFI-2000

Technical Specifications

  • Poles Description: 3P
  • Warranty Period: 18 months
  • Ambient Air Temperature For Operation: -25-70 °C
  • Control Type: Toggle
  • Device Type: LV equipment - Low voltage circuit breaker
  • Product Or Component Type: Circuit Breaker
  • Quality Labels: CE
  • Mercury Free: Yes
  • Sustainable Packaging: No
  • With Recycled Cardboard: Yes
  • Packaging Made With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • China ROHS In Scope: Yes
  • ROHS Exemption Information: Yes
  • Recycled Metal Content At Cr Level: 0 %
  • Serviceability: No

Typical Applications

  • Industrial and Commercial Electrical Distribution
  • Panelboard and Switchboard Circuit Protection
  • Motor and Feeder Circuit Protection
  • HACR-Rated Heating and Air Conditioning Circuits
  • Multi-Phase Industrial Equipment Protection

Why Square D?

Square D PowerPacT J-Frame circuit breakers combine UL, CSA, and NOM certification with IEC 60947-2 compliance for dependable, code-compliant overcurrent protection. Thermal magnetic trip protection, robust lug terminations, and a Green Premium construction profile make this breaker a reliable choice for demanding industrial and commercial electrical installations.

Manufacturer Resources

Product Specs

Product Type:
Circuit Breaker
Series:
PowerPacT J
Voltage Rating:
600VAC
Configuration:
3-Pole
Listing:
UL Listed
Standards:
IEC 60947-2
Department:
Electrical
Product Group:
Wiring Devices
