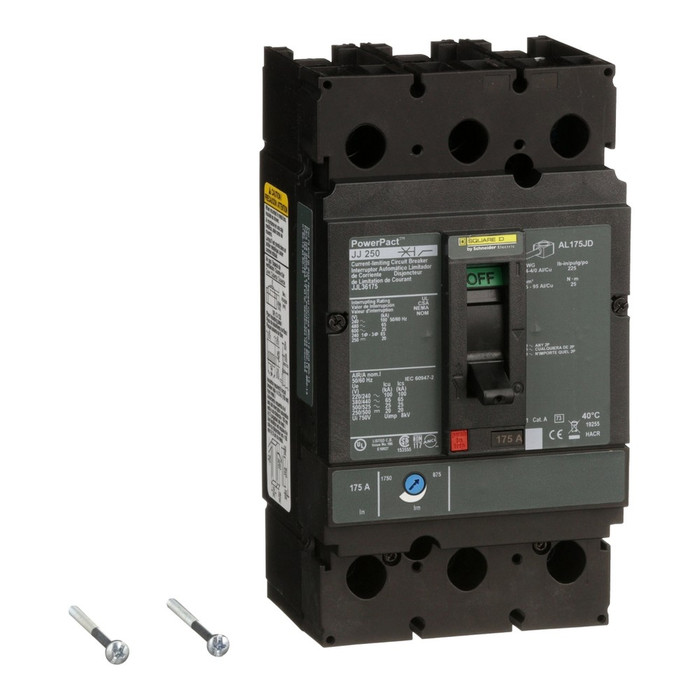

Square D PowerPacT J-Frame 3-Pole Circuit Breaker, Thermal Magnetic, 600VAC

Square D PowerPacT J-Frame 3-Pole Circuit Breaker, Thermal Magnetic, 600VAC

(No reviews yet) Write a Review

Model: JJL36175

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,483.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D PowerPacT J-Frame 3-Pole Circuit Breaker, Thermal Magnetic, 600VAC, 25kA

The Square D PowerPacT J-Frame circuit breaker is a 3-pole, thermal magnetic molded-case breaker for overload and short-circuit protection. Rated 600VAC with a 25kA interrupting capacity and an 80% continuous rating, it terminates on lugs (line and load) for AWG 3/0...350 kcmil aluminum/copper conductors. UL, CSA, and NOM certified, built to IEC 60947-2/60947-3.

Key Features

  • Trip Protection: Thermal magnetic trip unit for short-circuit and overload protection on 3-pole circuits.
  • Voltage & Interrupt Rating: 600VAC with 25kA interrupting capacity; Ue 600 V AC 50/60 Hz per IEC 60947-3.
  • Insulation & Impulse Withstand: 750V insulation voltage (Ui) and 8 kV impulse withstand voltage (Uimp) per IEC 60947-2.
  • Termination: Line and load lugs for AWG 3/0...350 kcmil aluminum/copper conductors, 25-25 N.m torque.
  • 80% Rated Application: Configured for 80% continuous current rating.
  • Enclosure Protection: Front cover rated IP40.
  • Operating Range: Rated below 6561.68 ft (2000 m) without derating; derated to 5000 m.
  • Local Signaling & Control: Toggle control with green trip indicator for switched-off (OFF) status.

Certifications & Compliance

  • UL Listed
  • CSA Certified
  • NOM Certified
  • Built to IEC 60947-2 and IEC 60947-3
  • NEMA and NOM-003-SCFI-2000 compliant
  • HACR rated circuit breaker application

Technical Specifications

  • Warranty Period: 18 months
  • Sustainable Packaging: No
  • Recycled Metal Content At Cr Level: 0 %
  • Poles Description: 3P
  • Serviceability: No
  • With Recycled Cardboard: Yes
  • China ROHS In Scope: Yes
  • Return Indicator: Y
  • Tier: 1
  • Legacy WEEE Scope: In
  • Packaging Made With Recycled Cardboard: Yes
  • EOLI Availability Display: Yes
  • Without Single Use Plastic: No
  • ROHS Exemption Information: Yes
  • Quality Labels: CE
  • WEEE Product Category: 4
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Warranty: 18 months
  • Mercury Free: Yes
  • ROHS Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Packaging Without Single Use Plastic: No
  • Tier Id: 1
  • ROHS Eur In Scope: Yes

Typical Applications

  • Commercial and Industrial Electrical Distribution Panels
  • Panelboard and Switchboard Overcurrent Protection
  • Feeder and Branch Circuit Short-Circuit Protection
  • HACR-Rated Air Conditioning and Refrigeration Circuits
  • New Construction and Electrical System Upgrades

Why Square D?

Square D PowerPacT J-Frame breakers pair thermal magnetic trip protection with UL, CSA, and NOM certifications for code-compliant overcurrent protection. With a 600VAC rating, 25kA interrupting capacity, and lug terminations for AWG 3/0...350 kcmil conductors, this breaker is built for long-term reliability in distribution applications.

Manufacturer Resources

Product Specs

Product Type:
Circuit Breaker
Series:
PowerPacT J-Frame
Configuration:
3-Pole
Voltage Rating:
600VAC
Connection Type:
Lugs
Listing:
UL Listed
Standards:
IEC 60947-2
Department:
Electrical
Product Group:
Wiring Devices
