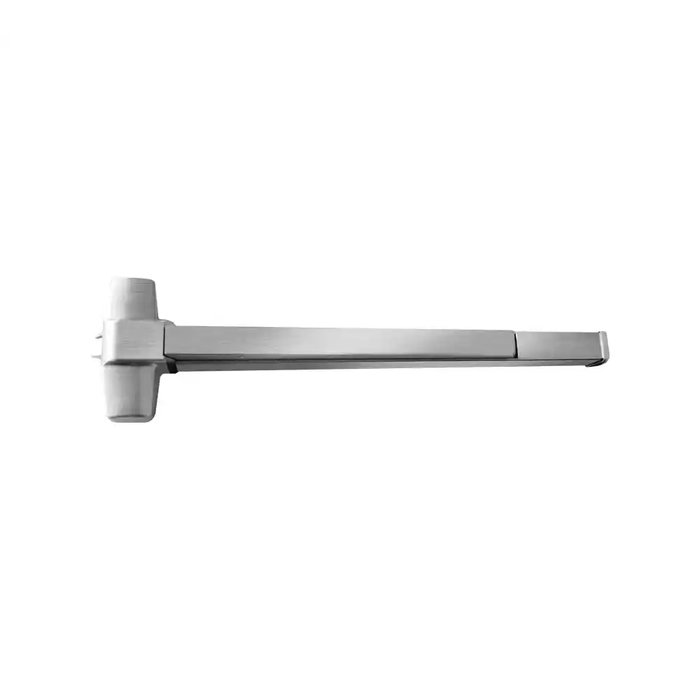

Codelock CL-ED Series 36" Rim Exit Device

Codelock CL-ED Series 36" Rim Exit Device

(No reviews yet) Write a Review

Model: CL-ED-R-36-32D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$387.70
$294.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

CL-ED Series Exit Device

Available in 2 sizes, 36" & 48".

Codelocks CL.ED Series Exit Device available in 2 sizes, to accommodate up to 36" doors and up to 48" doors.

NSI Grade 1 Stainless Steel Rim Exit Device designed to work with Codelocks CL600PK, CL5000PK and CL5500PK Panic Device Kits ANSI Grade 1.

Benefits

  • Multiple mounting holes for easy retrofit of major brands panic devices
  • Multiple opportunities for new hole locations for strong anchoring to door
  • Control and device from single source
  • Competitively priced

Key Features

  • Great for New Installation or Retrofit
  • Use with Codelocks Mechanical CL600 Panic Kit
  • Use with Codelocks Electronic CL5000 Panic Kit, CL5500 Panic Kit
  • ED-series Rim Style Exit Device
  • ANSI Grade 1
  • Non-fire rated
  • Brushed Steel
  • CL.ED-R-36-32D for door width up to 36"
  • CL.ED-R-48-32D for door width up to 48"

Technical Specs

  • Brand - Codelocks
  • Finish - Stainless Steel
  • Fit Doors Up To - Width of 36" or 48"
  • Lock Material - Zinc Alloy
  • Panic Hardware By Codelocks - Panic Hardware
  • Suitable For - Internal, External





Manufacturer Resources

Product Specs

Product Group:
Exit Devices and Trim
Series:
CL-ED Series Exit Device
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices
Subcategory:
Rim Style Device
Commercial/Residential:
Commercial
Wood Door Compatible:
No
Product Model:
CL-ED
Product Size:
36"
Fire Rating:
No
Product Category:
Exit Devices and Trim
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Codelocks CL-ED-R-36-32D – Frequently Asked Questions

1) Can I use the Codelocks CL-ED exit device on a fire rated door?
No. The CL-ED rim device is non-fire rated, so it cannot go on a labeled fire door assembly. Use it on non-rated egress openings only.
2) Will the Codelocks CL-ED exit device mount on a wood door?
It isn't rated for wood door use. The CL-ED is specified for metal doors, so for a wood leaf you need a device listed for wood door application.
3) Which Codelocks keypad locks work with the CL-ED exit device?
The CL-ED rim device is built to pair with the Codelocks CL600PK mechanical panic kit and the CL5000PK and CL5500PK electronic panic kits. That lets you buy the outside trim and the device from one manufacturer instead of mixing brands at the opening.
4) Can I swap an existing panic bar for the Codelocks CL-ED without drilling new holes in the door?
Often, yes. The CL-ED chassis has multiple mounting hole patterns intended to pick up the prep left by major brands of panic devices, and it also gives you extra hole locations if you want fresh anchoring points into the door. Verify your existing hole pattern against the device before you pull the old bar.
5) What is an equivalent Grade 1 rim exit device for a 36 inch door if the Codelocks CL-ED is not the right fit?
The Tell ED736 is a Grade 1 rim exit device that fits 28 inch to 36 inch doors, covering the same 36 inch maximum door width as the Codelocks CL-ED Series 36 inch rim device. Both are non-fire-rated rim devices and neither is rated for wood doors. The Tell ED936, from the ED900 Series, is a second Grade 1 rim option for the same 28 inch to 36 inch door range.
6) Is the Tell ED736 a direct substitute for the Codelocks CL-ED if I want keypad access control on the same door?
Not as a one-for-one system. The Codelocks CL-ED Series rim device is designed to work with the Codelocks CL600PK, CL5000PK and CL5500PK panic device kits, so the device and the access control come from one source. The Tell ED736 is a Grade 1 rim device in the ED800 Series and is specified as a rim device on its own; if you substitute it, plan the outside trim or access control separately.
7) Is the Codelocks CL-ED a Grade 1 device suitable for a commercial building?
Yes, it's an ANSI Grade 1 rim exit device and is classified for commercial use. Grade 1 is the heaviest duty ANSI/BHMA tier, which is what most schools, healthcare and multi-family egress doors are specified to.
8) Should I use a rim exit device or a vertical rod device on my exit door?
A rim device like the CL-ED latches into a strike on the frame at the lock edge, which is the simplest setup for a single door or for a pair with a center mullion. If you have a pair of doors with no mullion, a rim device has nothing to latch into at the center, and you need a surface vertical rod device instead, which latches at the head and sill.
9) Can I get the Codelocks CL-ED panic bar with a local alarm?
Yes. An alarm kit function is a selectable option on the CL-ED, so you choose alarm or no alarm when you order. The alarmed version is what you want on a door you need to keep as egress but don't want used casually, like a stair or a rear service exit.
10) What else could I use instead of the Codelocks CL-ED on a 36 inch door?
Tell makes two Grade 1 rim exit devices that fit 28 to 36 inch doors: the ED736 from the ED800 Series and the ED936 from the ED900 Series. Both are non-fire rated and both list a 1-3/8 to 1-3/4 inch door thickness range, and like the CL-ED neither is rated for wood doors. The reason to stay with the Codelocks device is if you're pairing it with a Codelocks CL600, CL5000 or CL5500 panic kit for the outside trim.
11) For a retrofit replacing another brand's panic device on a 36 inch door, does the Codelocks CL-ED or a Tell rim device fit the existing holes better?
The Codelocks CL-ED Series rim device is drilled with multiple mounting holes intended for retrofit of major brand panic devices, plus additional new hole locations for anchoring to the door. The Tell ED736 and ED936 are Grade 1 rim devices for 28 inch to 36 inch doors; their published data covers grade, function and door thickness of 1-3/8 inch to 1-3/4 inch rather than retrofit hole patterns, so confirm the existing prep against the device you choose.
12) What finish does the Codelocks CL-ED exit device come in, and will it match other stainless hardware on my doors?
One finish: 630 satin stainless steel, described as brushed steel. That is the standard commercial satin stainless finish, so it lines up with 630 pulls, hinges and trim already on most storefront and institutional openings.
13) Is the Codelocks CL-ED rim device OK for an exterior door?
Yes, it's suitable for both interior and exterior openings. The device body is zinc alloy with a stainless steel finish.
