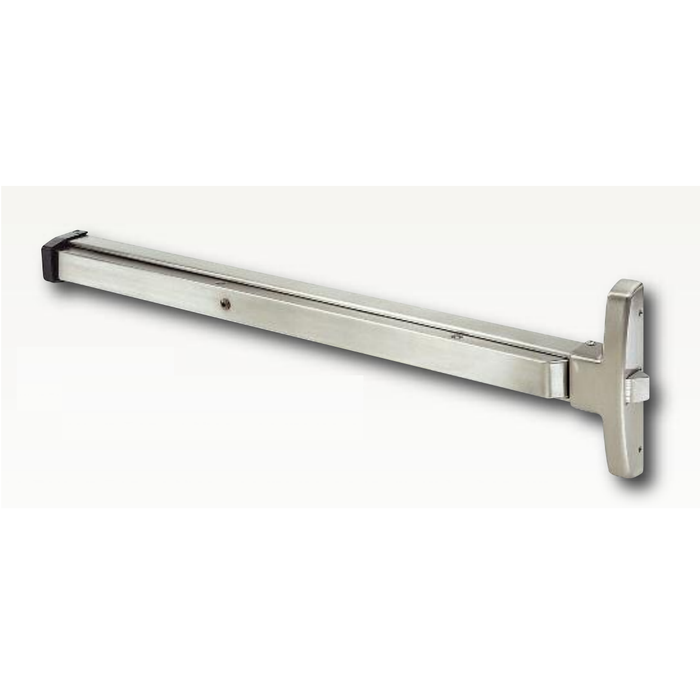

Arrow 4800 Series - 36" Rim Exit Device, Narrow Stile, Exit Only

Arrow 4800 Series - 36" Rim Exit Device, Narrow Stile, Exit Only

(No reviews yet) Write a Review

Model: 48-01-F-10-RR
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,899.00
$1,242.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW 4800 Series Narrow Stile Rim Exit Device

The 4800 Series offers a narrow stile option for thin door applications requiring a rim exit device. This exit device is BHMA Grade 1 Certified and is ADA compliant.



Standard features

Chassis: Non-ferrous alloy

Chassis cover: Cold drawn brass, bronze or stainless steel

Door Types: Wood, hollow metal or extruded aluminum

Door Thickness: 1-3/4" (44.45 mm) minimum

Stile: 1-3/4" (44.45 mm) minimum

Mounting: Supplied with wood and machine screws. Available with thru bolts.

Handing: Handed. Specify LHRB or RHRB

Dogging: Allen-type standard. Available with cylinder dogging (prefix CD)

Latchbolt: Stainless steel, 3/4" (19.05 mm) throw

Rail: Roll formed brass, bronze or stainless steel

Rail Projection: 3-1/4" (82.55 mm) maximum

Finishes: US3, US4, US10, US10B, US10BE, US32, US32D

Certification

  • ANSI/BHMA A156.3, Grade 1
  • ANSI A117.1 Accessibility Code
  • Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard. Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix “F” before part number.
  • Fire Exit hardware for wood doors, listed up to 1-1/2 hour, B label doors, prefix “F” before part number.
  • All exit devices comply with life safety code NFPA 101.
  • All fire rated devices comply with fire door and window code NFPA80.

DOWNLOADS & RESOURCES

4800 Series Cut Sheet

Manufacturer Resources

Product Specs

Subcategory:
Rim Exit Devices
Series:
4800 Series
Product Type:
Exit Devices - Rim
ADA Compliant:
Yes
Warranty:
5 Year
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
ANSI/BHMA:
ANSI/BHMA A156.3, Grade 1, UL and CUL Listed, Complies NFPA 101 Safety Code
Commercial/Residential:
Commercial
Wood Door Compatible:
No
Product Model:
38-81
Door Thickness Range:
1-3/4"
Product Size:
36"
Fire Rating:
No
Product Substrate:
Steel
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Arrow 48-01-F-10-RR – Frequently Asked Questions

1) Will the Arrow 4800 rim exit device fit a narrow stile aluminum storefront door?
Yes. The 4800 Series is built for narrow stile openings and needs only a 1-3/4 inch minimum stile. Door thickness must be 1-3/4 inch minimum, and it mounts on extruded aluminum, hollow metal or wood doors. Rail projection off the door face is 3-1/4 inch maximum, so check your clearance to anything adjacent to the door.
2) Is the Arrow 4800 handed, and how do I order the right one?
It is handed. You specify left hand reverse or right hand reverse, and both are offered across every finish. Stand outside the door: if the hinges are on your right and the door pulls toward you, it is right hand reverse. Order the wrong hand and the device will not mount correctly, so confirm before you place it.
3) Does the Arrow 4800 exit device meet Grade 1 and ADA requirements for a school or hospital exit?
It is certified to ANSI/BHMA A156.3 Grade 1, UL and CUL listed for the panic (accident hazard) standard, ADA compliant under ANSI A117.1, and complies with NFPA 101 life safety code. That is the package an institutional spec normally calls for on a commercial egress door.
4) Will the Arrow 4800 latch into the strike I already have on the frame?
The latchbolt is stainless steel with a 3/4 inch throw, and as a rim device it latches into a surface mounted rim strike on the frame stop, not into a mortise or ASA prep. If your existing opening had a rim panic device, the prep is usually workable; if you are coming off a mortise lock or a vertical rod device, plan on a new rim strike.
5) What is a direct alternative to the Arrow 4800 Series 36 inch narrow stile rim exit device from another brand?
The Arrow 4800 Series 36 inch narrow stile rim device is Grade 1 and non fire rated. Close peers at the same size and stile type include the TownSteel ED3700 36 inch Grade 1 narrow stile rim exit device, the TownSteel ED8900 36 inch Grade 1 narrow stile rim device, the Corbin Russwin ED4200 36 inch Grade 1 narrow stile rim device, and the Falcon 19-R 36 inch Grade 1 narrow stile exit only rim device. All four are narrow stile rim devices carrying Grade 1, so they suit the same thin stile aluminum and hollow metal openings.
6) Arrow 4800 devices are handed - is there a non handed narrow stile rim exit device instead?
The Arrow 4800 Series is handed and ordered as left hand reverse or right hand reverse. If you would rather stock one part for both swings, the BEST 2401 Series is a narrow stile rim exit device described as exit only and non handed, and the BEST Precision 5101 Series is a non handed universal design rim device. The Sargent 2828 and 3828 rim devices are also reversible, though both are wide stile and specified for 48 inch minimum door width.
7) My door has a wide stile - what should I order instead of the Arrow 4800 narrow stile device?
The Arrow 4800 Series is built for a 1-3/4 inch minimum stile, so on a wide stile door a wide stile rim device fits the face better. At 36 inches, wide stile Grade 1 options include the Corbin Russwin ED2200 exit only rim device, the Corbin Russwin ED5200, the TownSteel ED1100, the TownSteel ED9700, the Detex 10 Advantex extra heavy duty rim device, and the Von Duprin 22-3FT non handed pushpad rim device.
8) The Arrow 4800 36 inch is exit only - what narrow stile device do I use if I need outside trim or a night latch?
The Arrow 4800 Series 36 inch device covered here is exit only. If the opening needs outside key access, the Corbin Russwin ED4200 36 inch narrow stile Grade 1 device is listed as exit only and accepting trim, and the Sargent 8504 is a narrow design rim exit device with a night latch function in Grade 1. The Detex V4003A/03AN is a Grade 1 rim device with night latch trim, but it is wide stile.
9) Is an SDC exit bar a substitute for the Arrow 4800 Series rim exit device?
No. The Arrow 4800 Series is a mechanical rim exit device with a stainless steel latchbolt at 3/4 inch throw that does the latching itself. The SDC MSB550 Series 36 inch unit is a mechanical switch bar that releases an electromagnetic lock, and the SDC SureExit PSB560 Series 36 inch unit is a pressure sense bar; both fit narrow or wide stile but rely on separate locking hardware. The Securitron EMB is likewise an electromechanical exit bar. Use those only where an electrified lock is doing the securing.
10) Should I use a rim exit device or a vertical rod device on my opening?
A rim device like the 4800 latches into a strike on the frame, so it suits a single door or a pair with a mullion. If you have a pair of doors with no mullion, a rim device has nothing to latch into at the meeting stile and you want a vertical rod instead, such as the Hager 4601 Series narrow stile concealed vertical rod device.
11) Does the Arrow 4800 come with dogging, and can I get key dogging?
Allen key dogging is standard, so you can hold the pushbar depressed and leave the door in push/pull during business hours. Cylinder dogging is available by adding the CD prefix to the part number if you want it keyed rather than hex key operated. Note that dogging is not permitted on fire rated openings.
12) What mounting hardware ships with the Arrow 4800, and do I need thru bolts?
Wood and machine screws are supplied with the device. Thru bolts are available as an option and are worth specifying on high traffic or abuse prone openings where screws into a thin aluminum stile can work loose.
13) Is this an exit only device, or can I add outside trim?
This 36 inch 4800 is configured exit only, meaning pushbar egress from the inside with no outside operating trim. If you need keyed or lever entry from the outside, look at a device catalogued to accept trim, such as the Corbin Russwin ED4200 narrow stile Grade 1 device, which is listed as exit only plus accepts trim.
14) The Arrow 4800 Series fits 1-3/4 inch doors - what narrow stile rim device covers thicker doors?
The Arrow 4800 Series lists a 1-3/4 inch door thickness. Where the leaf is thicker, the Adams Rite 8800 Series 30 inch narrow stile rim exit device lists a 1-3/4 inch to 2-1/4 inch door thickness range and is Grade 1, non fire rated.
15) What looks like an Arrow 4800 replacement but will not latch the door?
Watch for dummy and concealed rod devices. The Detex Advantex 00 Series is a dummy exit device in wide stile, and the Sargent 12-8810-LTRIM is listed with a dummy function, so neither latches like the Arrow 4800 Series rim device. The Hager 4601 Series 36 inch narrow stile device is a concealed vertical rod unit, which needs top and bottom door prep rather than the rim strike the Arrow 4800 uses.
16) I need a wider door than the Arrow 4800 36 inch device covers - what rim exit devices come in 48 inch?
The Arrow 4800 Series device here is a 36 inch size. For a wider leaf, 48 inch rim options include the Dormakaba 9300 Series wide stile exit only device in Grade 1 with a 1-3/4 inch to 2-1/4 inch door thickness range, the Corbin Russwin ED3200 crossbar rim device in Grade 1, the CRL Jackson 1095 Series 48 inch crossbar rim panic device, and the Marks USA M9900F 48 inch fire rated exit only rim device.
17) What finishes does the Arrow 4800 narrow stile exit device come in, and can I match existing hardware?
Orderable finishes are 605 bright brass, 606 satin brass, 612 satin bronze, 613 dark oxidized satin bronze oil rubbed, 613E dark oxidized satin bronze equivalent, 629 bright stainless and 630 satin stainless. Each is available in both left hand reverse and right hand reverse. 630 satin stainless is the usual match for aluminum storefront, and 613 for dark bronze anodized entrances.
18) What materials is the Arrow 4800 built from, and will it hold up in a high traffic entrance?
The chassis is non-ferrous alloy with a cold drawn brass, bronze or stainless steel cover, the rail is roll formed brass, bronze or stainless, and the latchbolt is stainless steel. It carries the ANSI/BHMA A156.3 Grade 1 rating, which is the highest durability class for exit devices and the one normally specified for heavy commercial traffic.
How fast can I get the Arrow 48-01-F-10-RR delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Arrow 48-01-F-10-RR come with a warranty?
Absolutely. The Arrow 48-01-F-10-RR is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Arrow 48-01-F-10-RR?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Arrow 48-01-F-10-RR from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
