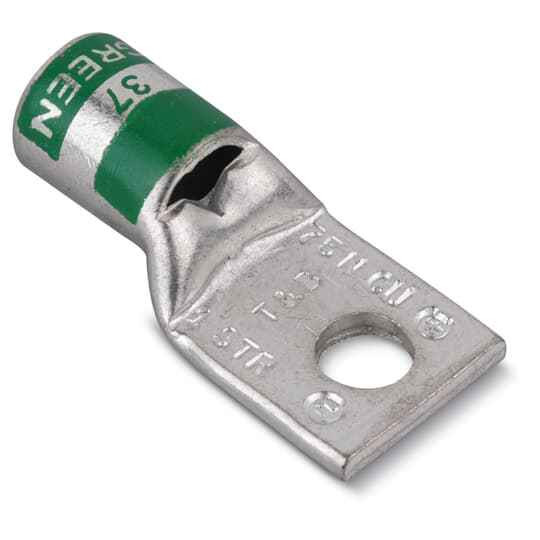

Color Keyed One-Hole Lugs #1AWG - Standard Barrel (600V to 35KV) - Green

Color Keyed One-Hole Copper Cable Lug #1AWG Standard Barrel 35kV - Green

(No reviews yet) Write a Review

Model: 54148

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color Keyed One-Hole Copper Cable Lug #1AWG Standard Barrel 35kV - Green

Professional electrical connection solution for high-voltage applications

The Color Keyed One-Hole Copper Cable Lug delivers reliable electrical connections for #1AWG conductors in demanding high-voltage environments up to 35kV. Featuring a standard barrel design with copper construction and distinctive green color coding, this professional-grade lug ensures secure terminations for electrical installations requiring dependable performance and easy identification.

Professional Features & Benefits

  • 35kV Voltage Rating: Engineered for high-voltage applications providing safe operation in demanding electrical environments
  • #1AWG Cable Compatibility: Precisely sized for #1AWG conductors ensuring optimal fit and secure electrical connection
  • Copper Construction: Superior conductivity and corrosion resistance for long-lasting electrical performance
  • Green Color Coding: Visual identification system enhances safety and simplifies installation and maintenance procedures
  • Standard Barrel Design: Proven configuration delivers consistent crimping performance and reliable mechanical connection
  • UL Listed: UL E9809 certification ensures compliance with rigorous safety and performance standards

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Cable Size: 1 AWG
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19750324
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Insulation Material: None
  • Product Color: Green
  • Product Material: Copper
  • Product Type: Standard Barrel
  • Standards: UL E9809
  • Sub Brand Label: Color Keyed
  • Voltage Rating: 35 kV

Professional Applications

  • High-voltage electrical distribution systems
  • Industrial power transmission installations
  • Commercial electrical infrastructure
  • Utility substation connections
  • Heavy-duty electrical equipment terminations
  • Professional electrical contractor applications

Why Choose Color Keyed Quality?

Color Keyed cable lugs combine proven copper construction with UL E9809 certification to deliver dependable performance in critical electrical applications. The distinctive green color coding and standard barrel design provide professional contractors with the reliability and identification features essential for safe, efficient installations in high-voltage environments.

Manufacturer Resources

Product Specs

Brand Label:
Color Keyed / Blackburn
Cable Size:
1 AWG
Department:
Electrical
Effective Date:
19750324
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Product Color:
Green
Product Material:
Copper
Product Type:
Standard Barrel
Standards:
UL E9809
Sub Brand Label:
Color Keyed
Voltage Rating:
35 kV

Color-Keyed 54148 – Frequently Asked Questions

1) What cable size does the green Color Keyed one-hole copper lug take?
It's sized for #1 AWG conductor only. The green die color code is the identification for that size on Color Keyed tooling, so if you're terminating 1/0 or #2 you need the lug built for that size, not this one.
2) Can I use this copper lug on a 15kV or 35kV cable termination?
Yes. The Color Keyed standard barrel one-hole lug carries a 35 kV rating, which covers medium-voltage work at 5, 15, 25 and 35 kV as well as 600V class. Note the lug itself has no insulation, so the termination still needs your kit's stress cone, tape or heat shrink.
3) Is this a compression lug or a mechanical set-screw lug?
It's a compression (crimp) lug with a standard barrel, so it needs a hydraulic or battery crimp tool with the die matched to the green #1 AWG code. There's no set screw, so you can't install it with a hex key.
4) Is this lug UL listed for a utility or institutional job spec?
It's built to UL file E9809, which is what the submittal usually wants to see for compression connectors. Material is copper, so it's for copper conductor, not aluminum.
5) Is a Color Keyed lug the same thing as a Blackburn lug?
Same product. Color Keyed is the sub-brand label and the line is catalogued as Color Keyed / Blackburn, so a spec calling for either one is satisfied by these part numbers.
6) Will a copper lug work on aluminum conductor?
No. This one is copper, intended for copper conductor. For aluminum or dual-rated runs you want an AL9CU rated connector instead, otherwise you're setting up a dissimilar-metal joint at the termination.
