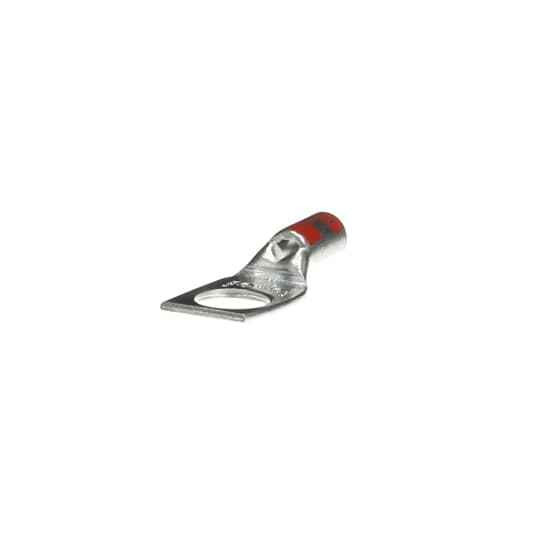

Color Keyed One-Hole Lugs #8AWG - Standard Barrel (600V to 35KV) - Red

Color Keyed One-Hole Cable Lug 8 AWG Standard Barrel 35kV Red Copper

(No reviews yet) Write a Review

Model: 54130

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color Keyed One-Hole Cable Lug 8 AWG Standard Barrel 35kV Red Copper

Professional electrical connection solution for high-voltage applications

The Color Keyed One-Hole Cable Lug delivers reliable electrical connections for 8 AWG conductors in demanding high-voltage environments up to 35kV. Constructed from durable copper material with red color coding for easy identification, this standard barrel design ensures secure terminations for professional electrical installations requiring dependable performance and safety compliance.

Professional Features & Benefits

  • 8 AWG Cable Compatibility: Precisely sized for secure conductor termination and optimal electrical contact
  • 35kV Voltage Rating: Engineered for high-voltage applications with reliable insulation performance
  • Copper Construction: Provides excellent conductivity and corrosion resistance for long-term reliability
  • Red Color Coding: Enables quick visual identification and phase organization in complex installations
  • Standard Barrel Design: Proven configuration for consistent crimping and secure mechanical connection
  • UL Listed: Meets rigorous safety standards with UL E9809 certification for professional confidence
  • One-Hole Configuration: Simplifies mounting and connection procedures for efficient installation

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Cable Size: 8 AWG
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19711008
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Insulation Material: None
  • Product Color: Red
  • Product Material: Copper
  • Product Type: Standard Barrel
  • Standards: UL E9809
  • Sub Brand Label: Color Keyed
  • Voltage Rating: 35 kV

Professional Applications

  • High-Voltage Distribution Systems
  • Industrial Power Distribution
  • Utility Infrastructure Projects
  • Commercial Electrical Installations
  • Substation Connections
  • Heavy Industrial Facilities
  • Power Generation Equipment

Why Choose Color Keyed Quality?

Color Keyed cable lugs combine proven copper construction with professional-grade design standards, delivering the reliability and safety required for critical electrical connections. With UL E9809 listing and high-voltage capability up to 35kV, these lugs provide the performance and compliance needed for demanding professional applications.

Manufacturer Resources

Product Specs

Brand Label:
Color Keyed / Blackburn
Cable Size:
8 AWG
Country Of Origin:
Mexico (MX)
Department:
Electrical
Effective Date:
19711008
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Product Color:
Red
Product Material:
Copper
Product Type:
Standard Barrel
Standards:
UL E9809
Sub Brand Label:
Color Keyed
Voltage Rating:
35 kV

Color-Keyed 54130 – Frequently Asked Questions

1) Will this lug work on 8 AWG stranded copper conductor only, or can I use it on aluminum?
It is a copper-bodied lug sized for 8 AWG conductor, so it is intended for copper cable of that size. Do not substitute it onto an aluminum conductor; aluminum needs a lug rated and marked for aluminum (AL or AL9CU) with the appropriate oxide inhibitor. Using a copper-only barrel on aluminum is a dissimilar metal connection and is not a listed use.
2) Can I use this lug in a 15kV or 25kV switchgear termination?
Yes. The lug is rated to 35 kV, which covers the common 15 kV and 25 kV class medium-voltage terminations as well as 600 V work. The rating belongs to the lug itself; the cable termination kit and stress cone still have to be rated for your system voltage.
3) Is this an insulated lug or bare copper?
Bare. The barrel carries no insulation, so the red coloring is the die/color-key identification rather than an insulating sleeve. If the termination needs covering, plan on separate heat shrink or a boot.
4) What does the red color key on a Blackburn Color Keyed lug mean?
Red here is the color key for the 8 AWG barrel. On a Color Keyed / Blackburn system the color on the barrel matches the crimp die color, so an inspector can confirm from across the gear that the right die was used on the right conductor size. It is not a phase marking.
5) Is this a compression lug or a mechanical set-screw lug?
It is a standard barrel compression lug, so it is crimped onto the conductor with a die tool, not tightened with a set screw. If your spec calls for a reusable mechanical connector, this is the wrong style.
6) One-hole versus two-hole lug: which should I be ordering for my bus pad?
This is a one-hole tongue, which lands on a single stud and is the usual choice for breaker pads, ground bars and transformer studs with a single bolt. If the equipment pad is drilled on NEMA two-hole centers, or the spec calls for a two-bolt connection to resist rotation on larger feeders, you need a two-hole tongue instead. At 8 AWG a one-hole termination is typical.
