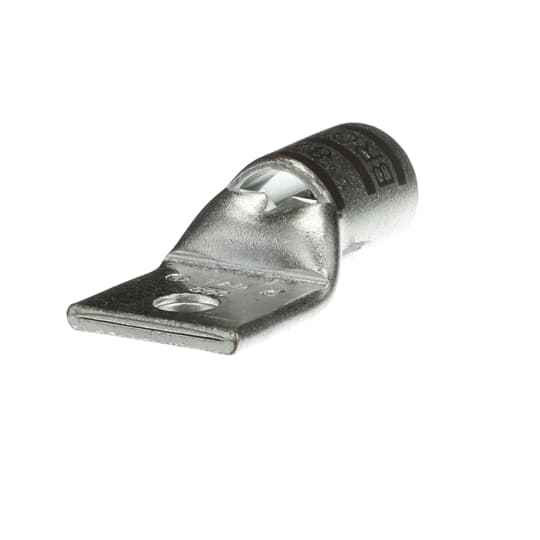

Color Keyed One-Hole Lugs 500kcmil - Standard Barrel (600V to 35KV) - Brown

Color Keyed One-Hole Cable Lug 500 kcmil 35kV Standard Barrel - Brown

(No reviews yet) Write a Review

Model: 54118

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color Keyed One-Hole Cable Lug 500 kcmil 35kV Standard Barrel - Brown

Professional copper cable termination for high-voltage applications

The Color Keyed One-Hole Cable Lug delivers reliable electrical connections for 500 kcmil cables in high-voltage applications up to 35kV. Constructed from copper material with brown color coding for easy identification, this standard barrel lug features a 1/2 inch stud size for secure mounting and termination in professional electrical installations.

Professional Features & Benefits

  • 500 kcmil Cable Capacity: Accommodates large conductor sizes for high-current applications and power distribution systems.
  • 35kV Voltage Rating: Engineered for high-voltage installations with reliable insulation performance and safety margins.
  • Copper Construction: Provides excellent conductivity and corrosion resistance for long-term electrical performance.
  • Brown Color Coding: Enables quick visual identification and phase organization in complex electrical systems.
  • Standard Barrel Design: Offers proven termination method with consistent compression and connection reliability.
  • 1/2 Inch Stud Size: Compatible with standard mounting hardware and connection points in electrical panels and equipment.
  • UL Listed: Meets UL E9809 standards for safety and performance in professional electrical applications.

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Cable Size: 500 kcmil
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19750324
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Insulation Material: None
  • Product Color: Brown
  • Product Material: Copper
  • Product Type: Standard Barrel
  • Standards: UL E9809
  • Stud Size: 1/2 in
  • Sub Brand Label: Color Keyed
  • Voltage Rating: 35 kV

Professional Applications

  • High-voltage power distribution systems
  • Industrial electrical installations
  • Commercial power infrastructure
  • Utility substation connections
  • Heavy-duty electrical equipment terminations
  • Large conductor cable management
  • Professional electrical panel connections

Why Choose Color Keyed Quality?

Color Keyed cable lugs provide dependable electrical connections with UL E9809 listing for professional safety standards. The copper construction ensures long-term conductivity and performance, while the color-coded design supports organized installations and maintenance in demanding electrical environments.

Manufacturer Resources

Product Specs

Brand Label:
Color Keyed / Blackburn
Cable Size:
500 kcmil
Department:
Electrical
Effective Date:
19750324
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Product Color:
Brown
Product Material:
Copper
Product Type:
Standard Barrel
Standards:
UL E9809
Stud Size:
1/2 in
Sub Brand Label:
Color Keyed
Voltage Rating:
35 kV

Color-Keyed 54118 – Frequently Asked Questions

1) Will this Color Keyed lug terminate a 500 kcmil copper conductor?
That is exactly what it is sized for. The Color Keyed one-hole compression lug takes a 500 kcmil cable, and the lug body itself is copper, so you are making a copper-to-copper termination with no dissimilar metal concern. One conductor per lug, one bolt hole for the pad connection.
2) Is this cable lug rated for 35kV medium voltage work?
Yes, the voltage rating on this Color Keyed standard barrel lug is 35 kV, and the product imaging covers it from 600V up through 35kV. That makes it usable for both low voltage panel terminations and medium voltage splices and terminations in substations and switchgear.
3) Does the brown color on this lug mean anything, or is it just cosmetic?
Brown is the die index color in the Color Keyed system. It tells the installer which compression die and die number to use for this conductor size, so the crimp is made with the right tooling rather than guessed at. It is not a phase marking. Match the brown die in your compression tool head to the brown band on the lug.
4) Can I use this copper lug on an aluminum 500 kcmil conductor?
No. This is a copper-bodied lug, which means it is intended for copper conductors. Terminating aluminum cable calls for an aluminum or dual-rated AL9CU compression lug instead, otherwise you get a dissimilar metal connection and a listing violation. Confirm your conductor metal before you pick the lug.
5) Do I need a two-hole lug instead of this one-hole version?
One-hole lugs land on a single 1/2 inch stud and can rotate under fault torque, which is why many switchgear and NEMA bus specs call for two-hole, two-bolt pads on large conductors. If the equipment pad has two holes on a set spacing, you need a two-hole lug on that spacing, not this one. For single-stud pads, bus bar taps, and breaker lugs with one bolt, this is the correct configuration.
6) Is this lug insulated, or do I need to cover the barrel after crimping?
It is bare. Insulation material on this lug is listed as none, so the copper barrel and tongue are exposed once installed. On medium voltage work you will be building up the termination with tape, heat shrink, or a cold shrink boot per the cable system requirements, and on 600V panel work the barrel typically gets covered with heat shrink.
7) Is this cable lug UL listed for inspection sign-off?
It carries UL file E9809, which is the listing an inspector will want to see referenced for a compression connector on a feeder or service termination. Note that a UL listing only holds if the crimp is made with the matching die and tool, which is what the brown color key identifies.
8) What is the difference between a standard barrel and a long barrel lug for 500 kcmil?
This one is the standard barrel version, meaning a single crimp length sized for one set of die compressions. Long barrel lugs give you a longer crimp area for additional compressions, which some utility and high pull-out specs call for. If your spec sheet calls out long barrel or a specific number of crimps, the standard barrel will not satisfy it.
