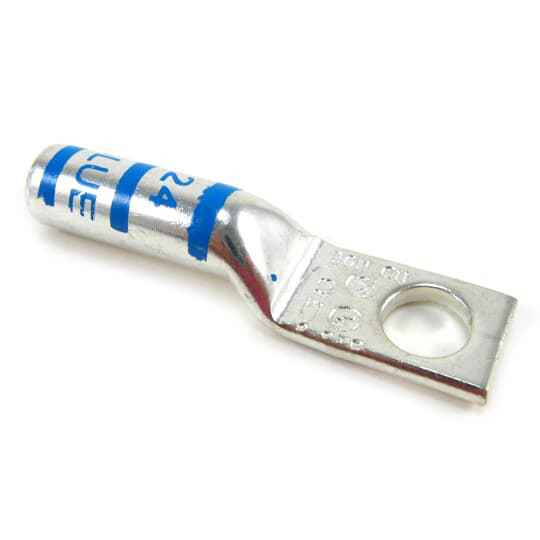

Color-Keyed Copper Compression Lugs #6 AWG One-Hole Long-Barrel - Blue Tinned

Color-Keyed Copper Compression Lugs #6 AWG One-Hole Long-Barrel

Professional copper compression lugs for reliable electrical connections

Color-Keyed copper compression lugs deliver professional-grade electrical connections with #6 AWG wire compatibility and one-hole mounting configuration. These long-barrel lugs feature tinned copper construction for enhanced corrosion resistance and blue color coding for easy wire size identification. UL E9809 listed for safety compliance in professional electrical installations.

Professional Features & Benefits

• #6 AWG Wire Compatibility: Precisely sized for #6 AWG conductors ensuring proper compression and reliable electrical connection
• Long-Barrel Design: Extended barrel length provides increased contact area and enhanced mechanical strength for demanding applications
• Tinned Copper Construction: Superior corrosion resistance and conductivity with tinned surface protection for long-term performance
• Blue Color Coding: Visual wire size identification system reduces installation errors and simplifies maintenance
• One-Hole Mounting: Single mounting hole design for straightforward installation and secure mechanical connection
• UL E9809 Listed: Meets rigorous safety standards for professional electrical installations and code compliance

Technical Specifications

• Brand Label: Color Keyed / Blackburn
• Brand Name: Color-Keyed
• Connecting Angle: Straight
• Country Of Origin: Mexico (MX)
• Department: Electrical
• Effective Date: 19770601
• Etim: EC001051 Tube cable lug for copper conductors
• Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
• Igcc: 4532 Cable or wire lug
• Inner Dimensions Inches: 3.25x2.75x2.25
• Inner Quantity: 10
• Insulated: N
• Insulation: None
• Insulation Material: None
• Number Of Fixing Holes: 1
• Number Of Holes: 1
• Outer Dimensions Inches: 7.9x7.4x4.4
• Outer Quantity: 50
• Product Color: Blue
• Product Details: Long Barrel
• Product Material: Copper
• Product Type: Long Barrel
• Slender Flange Model: N
• Standard: UL E9809
• Standards: UL E9809
• Sub Brand Label: Color Keyed
• Surface Protection: Tinned
• Unspsc: 39121405 Cable or wire lug
• Weight Uom: 2.81 lbs. per 100
• With Sight Hole: N

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Motor Control Centers
• Distribution Equipment
• Industrial Control Systems
• Commercial Electrical Installations
• Maintenance and Repair Operations

Why Choose Color-Keyed Quality?

Color-Keyed compression lugs provide reliable electrical connections with UL E9809 listing for safety compliance and tinned copper construction for long-term durability. The color-coded identification system and long-barrel design ensure professional installation results in demanding electrical applications.
