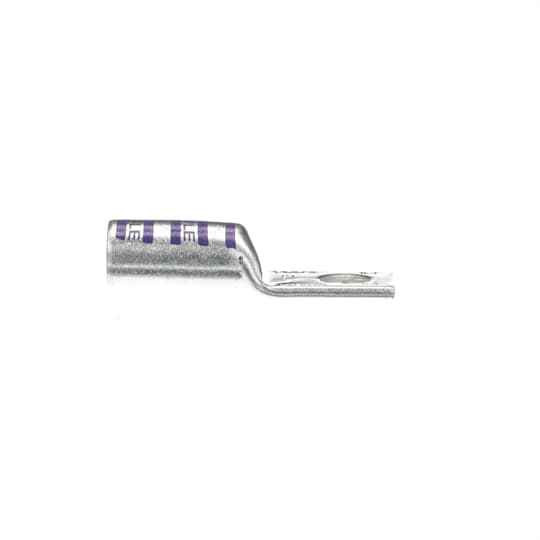

Color-Keyed Copper Compression Lugs 4/0 AWG – One-Hole, Long-Barrel Lugs - Purple

Color Keyed Copper Compression Lugs 4/0 AWG One-Hole Long-Barrel - Purple

(No reviews yet) Write a Review

Model: 54970BE

In Stock (leaves warehouse same day if ordered before 3pm ET)

$13.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color Keyed Copper Compression Lugs 4/0 AWG One-Hole Long-Barrel - Purple

Professional copper compression lugs with color-coded identification

Color Keyed copper compression lugs deliver reliable electrical connections for 4/0 AWG cable applications. These long-barrel compression lugs feature one-hole mounting design with purple color coding for easy identification and professional installation. Manufactured from high-quality copper material with 35 kV voltage rating and UL E9809 standards compliance for dependable performance in electrical distribution systems.

Professional Features & Benefits

  • 4/0 AWG Cable Compatibility: Precisely sized for 4/0 AWG conductors ensuring proper fit and optimal electrical connection integrity.
  • 35 kV Voltage Rating: High voltage capacity supports demanding electrical applications with reliable insulation performance.
  • Copper Construction: Superior conductivity and corrosion resistance for long-lasting electrical connections and minimal voltage drop.
  • Long-Barrel Design: Extended barrel length provides enhanced cable grip and improved mechanical strength for secure connections.
  • Purple Color Coding: Visual identification system enables quick phase identification and reduces installation errors in complex electrical systems.
  • UL E9809 Listed: Meets rigorous safety and performance standards ensuring code compliance and professional installation confidence.
  • 1/2 inch Stud Size: Standard mounting dimension compatible with common electrical hardware and connection points.

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Cable Size: 4/0 AWG
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19780502
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Insulation Material: None
  • Product Color: Purple
  • Product Material: Copper
  • Product Type: Long Barrel
  • Standards: UL E9809
  • Stud Size: 1/2 in
  • Sub Brand Label: Color Keyed
  • Voltage Rating: 35 kV

Professional Applications

  • Electrical Distribution Panels
  • Industrial Control Systems
  • Commercial Power Distribution
  • Utility Infrastructure
  • Generator Connection Points
  • Transformer Installations
  • High-Voltage Electrical Systems

Why Choose Color Keyed Quality?

Color Keyed compression lugs provide professional-grade reliability with UL E9809 listing and 35 kV voltage rating. The copper construction and long-barrel design ensure durable connections while purple color coding enhances installation efficiency and system organization for professional electrical contractors.

Manufacturer Resources

Product Specs

Brand Label:
Color Keyed / Blackburn
Cable Size:
4/0 AWG
Department:
Electrical
Effective Date:
19780502
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Product Color:
Purple
Product Material:
Copper
Product Type:
Long Barrel
Standards:
UL E9809
Stud Size:
1/2 in
Sub Brand Label:
Color Keyed
Voltage Rating:
35 kV

Color-Keyed 54970BE – Frequently Asked Questions

1) Will this Color Keyed lug take 4/0 AWG copper cable?
Yes. The Color Keyed 54970BE compression lug is sized for 4/0 AWG conductor, and the purple color code is what identifies that die/cable size on the Color Keyed system. It is a copper barrel, so it is intended for copper conductor.
2) Is this lug rated for medium-voltage cable terminations?
It carries a 35 kV voltage rating, so it is suitable for medium-voltage terminations as well as ordinary 600 V distribution work. The lug itself is bare, with no insulation on the barrel, so the voltage rating is realized by the cable insulation and the terminating kit or tape/boot you build over it.
3) Can I use this copper lug on aluminum conductor?
No. The barrel is copper and sized for 4/0 copper conductor. Aluminum cable needs an aluminum-bodied or dual-rated AL9CU compression lug with the correct die, and the compound and die index differ. Using a copper barrel on aluminum conductor is not a listed termination.
4) Why choose a long-barrel lug over a standard short-barrel one?
A long barrel takes two crimps instead of one, which gives more contact area with the conductor and more mechanical pull-out strength. Electricians specify it on vibration-prone or high-current terminations such as generator leads, transformer pads and switchgear. A standard-barrel lug does the same electrical job on a static panel landing in less depth, so if you are tight on room behind the pad the short barrel is the easier fit.
5) Is this the same thing as a Blackburn lug?
Yes. Color Keyed is the Blackburn compression line, and this lug is labeled Color Keyed / Blackburn. If a drawing or a spec calls out a Blackburn Color Keyed 4/0 one-hole long-barrel lug with a 1/2 inch stud hole, 54970BE is that part.
6) Is this lug UL listed for an inspected commercial job?
It is built to UL E9809. That file number is what an inspector or a submittal package looks for on a compression connector, so it will satisfy a spec calling for a listed copper compression lug.
7) Does a one-hole lug need anything extra to keep the cable from rotating on the pad?
One-hole tongues can rotate around the bolt under torque or cable pull, so where a drawing calls for anti-rotation you either use a two-hole lug on a double-drilled pad or support the cable so it cannot twist the tongue. This 54970BE is a one-hole, 1/2 inch stud lug, so it lands on a single-tapped pad or bus hole.
8) Where is this lug manufactured?
These Color Keyed copper lugs are made in Mexico. Buyers tracking country of origin for a government or utility submittal should note that on the compliance sheet.
