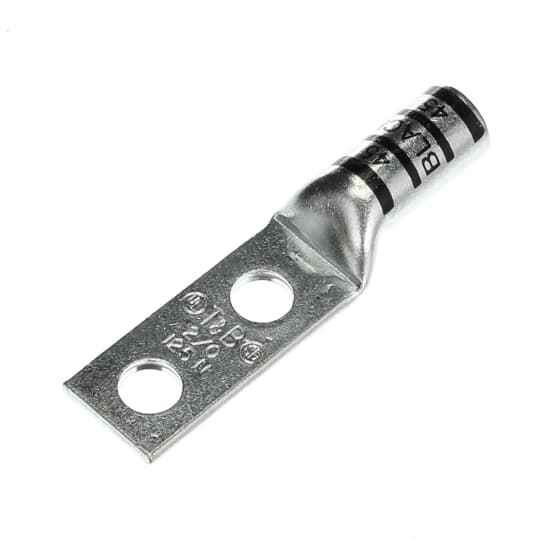

Color-Keyed Copper Compression Lugs 2/0 AWG – Two-Hole, Long-Barrel Lugs - Black

Color Keyed Copper Compression Lugs 2/0 AWG Two-Hole Long-Barrel - Black

(No reviews yet) Write a Review

Model: 54862BE

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color Keyed Copper Compression Lugs 2/0 AWG Two-Hole Long-Barrel - Black

Professional copper compression lugs for reliable electrical connections

Color Keyed copper compression lugs deliver professional-grade electrical connections for 2/0 AWG cable applications. These long-barrel compression lugs feature durable copper construction with black color coding for easy identification and organization. The two-hole design with 1/2 inch stud size provides secure mounting and reliable electrical performance rated for 35 kV applications.

Professional Features & Benefits

  • 2/0 AWG Cable Compatibility: Precisely sized for 2/0 AWG conductors ensuring proper fit and optimal electrical connection performance.
  • Copper Construction: High-conductivity copper material provides excellent electrical performance and corrosion resistance for long-term reliability.
  • Long-Barrel Design: Extended barrel length increases contact area and compression zone for enhanced connection integrity and pull-out strength.
  • Black Color Coding: Color-keyed identification system enables quick visual recognition and proper circuit organization during installation and maintenance.
  • 35 kV Voltage Rating: High voltage rating supports demanding electrical applications with reliable insulation and safety performance.
  • UL Listed: UL E9809 listing ensures compliance with safety standards and professional installation requirements.
  • 1/2 Inch Stud Size: Standard stud size provides compatibility with common electrical hardware and mounting systems.

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Cable Size: 2/0 AWG
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19780502
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Insulation Material: None
  • Product Color: Black
  • Product Material: Copper
  • Product Type: Long Barrel
  • Standards: UL E9809
  • Stud Size: 1/2 in
  • Sub Brand Label: Color Keyed
  • Voltage Rating: 35 kV

Professional Applications

  • Electrical panel and switchgear connections
  • Industrial motor and equipment terminations
  • Commercial building electrical systems
  • Power distribution and substation applications
  • Generator and transfer switch connections
  • Heavy-duty electrical installations
  • High-voltage electrical terminations

Why Choose Color Keyed Quality?

Color Keyed compression lugs provide reliable electrical connections backed by UL listing and professional-grade copper construction. The 35 kV voltage rating and long-barrel design ensure dependable performance in demanding electrical applications, while the color-coded identification system supports efficient installation and maintenance practices.

Manufacturer Resources

Product Specs

Brand Label:
Color Keyed / Blackburn
Cable Size:
2/0 AWG
Department:
Electrical
Effective Date:
19780502
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Product Color:
Black
Product Material:
Copper
Product Type:
Long Barrel
Standards:
UL E9809
Stud Size:
1/2 in
Sub Brand Label:
Color Keyed
Voltage Rating:
35 kV

Color-Keyed 54862BE – Frequently Asked Questions

1) Will a Color Keyed 2/0 AWG two-hole lug land on 1/2 inch studs in my panel or switchgear?
Yes. The Color Keyed (Blackburn) 2/0 AWG long-barrel lug is a two-hole pad drilled for 1/2 inch stud size, so it bolts straight to 1/2 inch busbar studs or landing pads. Two holes also keep the lug from rotating under torque, which is why it is the usual choice for switchgear and transfer switch terminations rather than a single-hole pad.
2) Is this lug rated for medium-voltage cable terminations?
The voltage rating is 35 kV, which covers medium-voltage work such as power distribution, substation terminations and high-voltage feeder landings. It carries a UL listing under file E9809. Note the lug itself has no insulation, so the voltage rating is realized through your cable termination kit or separate insulating boot, not the lug body.
3) What does the black color on these Color Keyed lugs mean? Is it just cosmetic?
Black here is the color-key, not paint for looks. In the Color Keyed system the color identifies the die index the lug is crimped with, so the installer matches the black marking to the black die in the compression tool and gets a verified crimp. It doubles as a visual check during inspection and maintenance that the right connector and die were used on the 2/0 conductor.
4) Can I use a copper compression lug on aluminum conductor?
No. This is a copper-bodied lug built for 2/0 AWG copper conductor. Terminating aluminum cable requires a connector rated AL or AL9CU for that purpose; a copper-only barrel on aluminum is an improper termination. Order an aluminum or dual-rated lug for aluminum feeders.
5) Do I need a special tool to install these compression lugs?
Yes, these are compression (crimp) lugs, not mechanical set-screw lugs, so they need a hydraulic or battery compression tool with the die matching the black color key for 2/0. There is no set screw and no torque spec on the barrel. If you do not have a compression tool on the truck, a mechanical two-hole lug for 2/0 is the alternative.
6) Does this copper lug come insulated, or do I need to add a boot?
Bare copper, no insulation on the barrel or pad. If the termination needs covering, plan on heat shrink, tape or a separate insulating boot as part of the job. That also means the pad and barrel will be exposed for inspection after the crimp, which many inspectors prefer on medium-voltage work.
7) Why choose a long-barrel lug over a standard short-barrel one for a 2/0 feeder?
The long barrel takes more crimps over a longer compression zone, which raises contact area and pull-out strength. That is the version you want on vibrating equipment, motor terminations, generator and transfer switch leads, and anywhere the cable may see mechanical load. A standard barrel is fine for a static panel landing and takes less room in a crowded gutter; the long barrel needs more straight cable behind the pad.
8) What is the exact part number for the 2/0 AWG black Color Keyed two-hole lug with 1/2 inch holes?
Order MPN 54862BE. That is the Color Keyed / Blackburn 2/0 AWG two-hole long-barrel copper lug, black color key, 1/2 inch bolt size. Product of Mexico.
