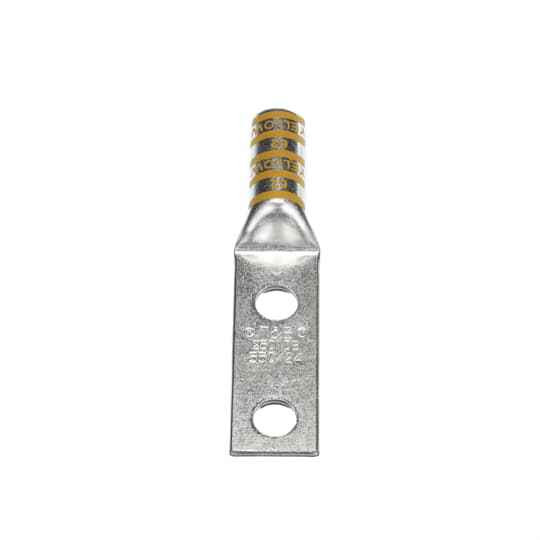

Color-Keyed Two Hole Lugs 250kcmil - Long Barrel (600V to 35KV) - Yellow

Color Keyed Two Hole Cable Lug 250 kcmil Long Barrel 35kV Yellow Copper

(No reviews yet) Write a Review

Model: 54868BE

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Color Keyed Two Hole Cable Lug 250 kcmil Long Barrel 35kV Yellow Copper

Professional high-voltage cable termination solution

The Color Keyed Two Hole Cable Lug delivers reliable electrical connections for 250 kcmil cables in high-voltage applications up to 35kV. Featuring a long barrel design with yellow color coding for easy identification, this copper lug provides secure termination with dual 1/2 inch stud connections for professional electrical installations.

Professional Features & Benefits

  • 250 kcmil Cable Capacity: Accommodates large conductor sizes for high-current applications and power distribution systems.
  • 35kV Voltage Rating: Engineered for high-voltage installations with reliable insulation performance and safety margins.
  • Long Barrel Design: Provides extended contact area for enhanced conductivity and secure cable grip in demanding applications.
  • Yellow Color Coding: Enables quick visual identification and phase organization in complex electrical systems.
  • Copper Construction: Delivers excellent conductivity and corrosion resistance for long-term reliability.
  • Dual 1/2" Stud Holes: Accommodates standard hardware for versatile mounting and connection options.
  • UL Listed: Meets UL E9809 standards for safety and performance in professional electrical applications.

Technical Specifications

  • Brand Label: Color Keyed / Blackburn
  • Cable Size: 250 kcmil
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Effective Date: 19780502
  • Idea Granular Category Code Igcc: 4532 >> Cable or wire lug
  • Insulation Material: None
  • Product Color: Yellow
  • Product Material: Copper
  • Product Type: Long Barrel
  • Standards: UL E9809
  • Stud Size: 1/2 in
  • Sub Brand Label: Color Keyed
  • Voltage Rating: 35 kV

Professional Applications

  • High-voltage power distribution systems
  • Industrial electrical installations
  • Utility substation connections
  • Commercial power infrastructure
  • Heavy-duty electrical terminations
  • Phase identification systems

Why Choose Color Keyed Quality?

Color Keyed cable lugs provide dependable performance with UL E9809 listing for safety assurance. The copper construction and long barrel design ensure lasting conductivity and secure connections in demanding high-voltage applications.

Manufacturer Resources

Product Specs

Brand Label:
Color Keyed / Blackburn
Cable Size:
250 kcmil
Department:
Electrical
Effective Date:
19780502
Idea Granular Category Code Igcc:
4532 >> Cable or wire lug
Product Color:
Yellow
Product Material:
Copper
Product Type:
Long Barrel
Standards:
UL E9809
Stud Size:
1/2 in
Sub Brand Label:
Color Keyed
Voltage Rating:
35 kV

Color-Keyed 54868BE – Frequently Asked Questions

1) Will a Color Keyed 250 kcmil two hole long barrel lug bolt to a 1/2 inch stud pad?
Yes. The Color Keyed (Blackburn) 250 kcmil two hole long barrel lug, MPN 54868BE, is drilled for 1/2 inch studs on both holes, so it lands on standard 1/2 inch bus pads, breaker lugs, and ground bar studs. It is a two hole pad, so the mating surface has to have both studs at the lug's hole spacing, or you need a single hole lug instead.
2) What cable size does this yellow Color Keyed long barrel lug take?
It is sized for 250 kcmil conductor only. Color Keyed is a die-coded compression system, and the yellow color code identifies the 250 kcmil die for this lug, so the barrel will not accept 4/0 or 350 kcmil. Match the conductor to the lug, not the other way around.
3) Can I use this lug on a 15kV or 35kV shielded cable termination?
Yes, it carries a 35 kV rating, so it covers 600V, 5kV, 15kV, 25kV, and 35kV class terminations up to that limit. The long barrel gives the extra contact length typically wanted for medium voltage terminations where the lug sits inside a stress cone or termination kit.
4) Can I use this copper lug on aluminum conductor?
No. This is a copper lug for copper conductor. Aluminum cable needs an aluminum or dual rated AL9CU compression lug with the correct inhibitor compound, and the crimp die for an aluminum connector is different. Using a copper-only barrel on aluminum conductor is not a listed combination.
5) What is the difference between a long barrel lug and a standard barrel lug for 250 kcmil?
Long barrel means more crimp length, so you get additional compression crimps and more contact area with the conductor. That matters on high current feeders and medium voltage work where pullout strength and heat rise are the concern. A standard barrel 250 kcmil lug takes fewer crimps and is the usual choice for general 600V panel and switchgear terminations where space is tight. This one is the long barrel version, rated to 35 kV.
6) Is this lug insulated, and do I need separate tape or a boot?
No insulation on this one. The lug ships bare copper with no insulating sleeve, so the installer provides the tape, heat shrink, or termination kit insulation. On medium voltage work that insulation is part of the termination kit anyway.
7) Is this Color Keyed lug UL listed for a inspected commercial installation?
It is UL listed under file E9809, which is the listing an inspector or facility electrical spec will typically ask for on a compression connector. That makes it acceptable where the drawing calls for a listed compression lug.
8) Will this replace an existing Blackburn Color Keyed lug already on my feeders?
Yes, if the one coming off is a 250 kcmil two hole long barrel copper lug on 1/2 inch studs. 54868BE is the Blackburn Color Keyed part for that configuration, so it standardizes with the rest of a Color Keyed installation and uses the same 250 kcmil yellow die the crew already has.
9) Why is this 250 kcmil lug yellow, and does the color mean phase?
Yellow here is the Color Keyed die code, not a phase marking. In the Color Keyed system each conductor size has its own color so the installer can match the lug to the correct compression die and an inspector can see from the crimp that the right die was used. Some crews also use the color for phase organization on site, but the color is tied to the 250 kcmil size.
