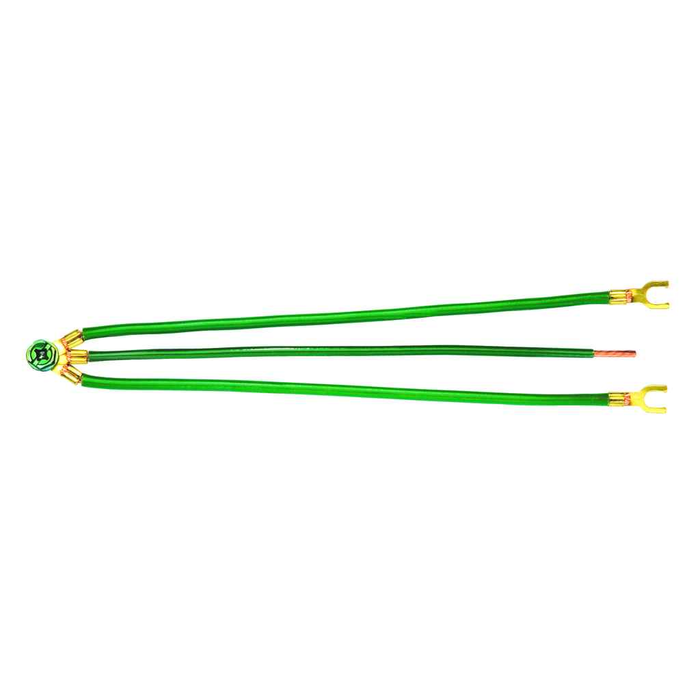

IDEAL Industries 30-3286 Combo Grounding Tail, 2-Wire Solid/Stranded, Box of 100

IDEAL Industries 30-3286 Combo Grounding Tail, 2-Wire Solid/Stranded, Box of 100

(No reviews yet) Write a Review

Model: 30-3286
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,515.00
$263.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Combo Grounding Tail, 2-Wire Solid/Stranded, Box of 500

  • Features

    • Safe, fast and efficient for cost-effective grounding jobs
    • Thread-forming, hole-finding ground screw with combination Slotted, Phillips, Hex and #2 Robertson head
    • Ensures compliance with Article 250 of the National Electric Code

Manufacturer Resources

Product Specs

Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles

Ideal Industries 30-3286 – Frequently Asked Questions

1) Will the IDEAL 30-3286 grounding tail work with stranded wire, or is it solid only?
Both. The 30-3286 is a 2-wire tail rated for solid and stranded conductors, so the same part covers a metal box fed with solid NM branch wiring and a run pulled in stranded.
2) Does using an IDEAL 30-3286 grounding tail keep me code compliant on receptacle grounding?
The 30-3286 grounding tail is built for compliance with Article 250 of the National Electrical Code, which is the grounding and bonding article an inspector works from on device boxes. It is a pigtail method, so the device ground and the box bond are made without relying on the device yoke for continuity.
3) What is the IDEAL 30-3286 grounding tail used for?
The IDEAL 30-3286 is a combo grounding tail: a pre-assembled pigtail with a ground screw, used to bond a metal box and carry the equipment ground on to the device. It is made for fast, repeatable grounding on rough-in and device trim-out work rather than cutting and stripping a separate jumper on site.
4) Do I need to pre-drill or tap the box for the IDEAL 30-3286 ground screw?
No. The screw on the 30-3286 is thread-forming and hole-finding, so it seats and cuts its own thread in the box ground hole. That is the time saver on a large device-count job, no tapping step and no hunting for the hole behind the conductors.
5) Is the IDEAL 30-3286 sold individually or in bulk for a full job?
The 30-3286 is a boxed bulk item, packaged for crews doing device grounding at volume rather than a single-box repair. If you are trimming out a floor of receptacles or a multi-family unit count, it is ordered by the box and drawn from as you go.
