Command Access ML190 Series Mo...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$750.00
$678.91

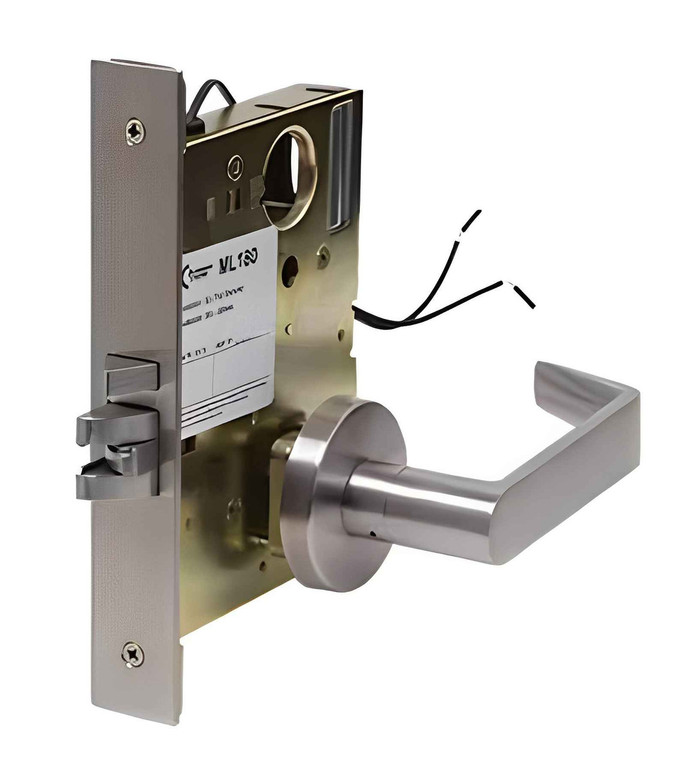

Command Access ML190 Series Motorized Mortise Lock with Field Selectable EL/EU Operation and 24VDC Power

Command Access ML190 Series Motorized Mortise Lock with Field Selectable EL/EU Operation and 24VDC Power

(No reviews yet) Write a Review

Model: ML19092-M-EL/EU 06A 24V 626
$750.00
$678.91
Selected Finish is
Selected Rose is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$750.00
$678.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Command Access ML190 Series Motorized Mortise Lock with Field Selectable EL/EU Operation and 24VDC Power

Professional Motorized Mortise Lock Solution for Commercial Access Control

The Command Access ML190 Series Motorized Mortise Lock delivers professional-grade electronic access control with field-selectable EL/EU operation and 24VDC power compatibility. This complete mortise lock features a Grade 1 chassis designed for heavy-duty commercial applications, with voltage range of 11 to 30 VDC and low current draw of 400mA maximum with 10mA holding current. The ML19092-M model provides storeroom function with field reversible handing and UL listing for reliable performance in demanding environments.

Professional Features & Benefits

  • Field Selectable Operation: EL/EU switching accomplished with simple button press for 3 seconds - no wire cutting required and can be done without power present.
  • Energy Efficient Design: Low current draw of 400mA maximum with extremely low 10mA holding current makes it ideal for POE systems and energy-conscious applications.
  • Continuous Duty Motor: Allows for significant energy savings on "continuously on" applications such as fail safe or unlock cycle operations.
  • Grade 1 Construction: ANSI/BHMA Grade 1 rated chassis built to withstand years of heavy-duty commercial use with superior durability.
  • Field Reversible Handing: Handing can be changed in the field without removing the cover for installation flexibility.
  • True Cycle Feature: Ensures motor returns to original position even if power drops during operation for reliable performance.
  • Flexible Power Options: Voltage range of 11 to 30 VDC accommodates various system requirements and is ready to plug into 12V or 24VDC systems.
  • 3 Year No-Hassle Warranty: Comprehensive warranty coverage provides added confidence and protection for commercial installations.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy-Duty
  • Electronic: Yes
  • Keyed Function: Fail Safe/Fail Secure
  • Lock Type: Mortise
  • Product Category: Mechanical Locks
  • Product Function: Storeroom
  • Product Group: Mechanical Locks
  • Product Subgroup: Mortise Locks and Trim
  • Product Type: Mortise Locks
  • Series: ML190 Series
  • Subcategory: Mortise Locks
  • Warranty: 3 Year Warranty

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Security
  • Government and Municipal Buildings
  • Industrial Facility Access Points
  • Multi-Tenant Residential Properties
  • Retail Security Systems

Storeroom Function Operation

The ML19092-M provides storeroom function with fail safe/fail secure capability. Outside lever is locked (EL) or unlocked (EU) electronically, with latchbolt retracted by key outside or lever inside. EU mode applies power to allow outside lever to retract latchbolt, while EL mode applies power to prevent outside lever from retracting latchbolt. Inside lever remains always free for immediate egress compliance.

Why Choose Command Access Quality?

Command Access ML190 Series mortise locks deliver professional-grade reliability with ANSI/BHMA Grade 1 construction and UL listing for demanding commercial applications. The 3 Year No-Hassle Warranty and Buy America Act compliance demonstrate the manufacturer's commitment to quality and domestic manufacturing. Engineered for continuous duty operation with energy-efficient design, these locks provide dependable performance where reliable access control is essential.

Manufacturer Resources

Command Access Catalog

Product Specs

Product Group:
Mechanical Locks
Series:
ML190 Series
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Subcategory:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Electronic:
Yes
Warranty:
3 Year Warranty
Duty Level:
Heavy-Duty
Product Function:
Storeroom
Keyed Function:
Fail Safe/Fail Secure
Product Category:
Mechanical Locks
Department:
Door Hardware

Command Access ML19092-M-EL/EU 06A 24V 626 – Frequently Asked Questions

1) Is the ML190 fail safe or fail secure, and do I have to order it that way?
Neither is locked in at the factory. The ML190 motorized mortise lock is field selectable between EL (electrically locked, fail secure) and EU (electrically unlocked, fail safe). You switch it by holding a button for 3 seconds, with no wire cutting and no power needed to make the change. That means one part number covers both stairwell-style fail safe openings and fail secure storeroom doors, and you can flip it on site if the AHJ reads the drawing differently than you did.
2) What voltage does the Command Access ML190 motorized mortise lock run on?
The ML190 accepts 11 to 30 VDC, so it plugs straight into either a 12VDC or 24VDC access control power supply. Current draw is 400mA maximum during the motor cycle and drops to 10mA holding. That 10mA hold is what makes it workable on PoE-powered controllers and on fail safe doors that sit energized around the clock, where a solenoid lock would be burning power all day. Both 12V and 24V versions are stocked.
3) How does the storeroom function on the ML19092-M actually behave for people using the door?
Inside lever is always free, so anyone can walk out at any time without touching a control. Outside, the lever is electronically locked in EL mode or electronically unlocked in EU mode, and the latchbolt retracts by key from outside or by the inside lever regardless. Practically: card reader or REX energizes the lock, the outside lever turns, and if the system is down a keyholder still gets in.
4) Is the Command Access ML190 heavy duty enough for a school or hospital corridor?
The ML190 chassis is ANSI/BHMA Grade 1 and rated heavy duty for commercial use, and it is UL listed. Grade 1 is the top commercial tier under ANSI/BHMA, which is what institutional specs on schools, healthcare, and government work normally call for. It is a commercial lock, not a residential one.
5) I need a storeroom mortise lock but the door has no power to it. What are my options?
The ML190 is an electrified lock and needs 11 to 30 VDC run to the door, so it is the wrong part on an unpowered opening. For a mechanical Grade 1 storeroom mortise lock, look at the Cal-Royal NM8080 (Grade 1 storeroom, 1-3/4 inch door, interchangeable core option) or the Accentra 8805FL storeroom lock in the 8800 Series. If you want keyless without wiring, the Alarm Lock Trilogy T2 DL2700CR is a battery standalone electronic mortise lock, though it is classroom function rather than storeroom.
6) Do I need a card reader and controller with the ML190, or does it work on its own?
The ML190 has no reader and no keypad. It is a wired lock body that takes a lock/unlock signal from an access control panel, so you supply the credential reader, controller, power supply, and an electric hinge or door loop to get power across to the door. If you want the credential built into the lock instead, the standalone route is something like the Alarm Lock Trilogy DL3500CR with 300 user codes, the Dormakaba E-Plex 2066 pushbutton mortise lock, or the Schlage CO-100 keypad mortise lock.
7) What is the closest equivalent to a Command Access ML19092-M motorized mortise lock from another manufacturer?
The nearest peer is the Schlage L9092EU-T-03A-626-RX complete mortise lock, which runs on 12/24VDC, is keyed on the outside with an electrically controlled outside lever, includes request to exit (RX), and is a heavy duty lockbody for 1-3/4 inch doors. The Command Access ML19092-M is also a complete mortise lock running 12V or 24V, but its EL/EU mode is field selectable by a button press rather than ordered as a fixed EU model, and its handing is reversible in the field without removing the cover.
8) What other wired electrified mortise locks work with a 12V or 24V access control system?
The BEST 45HW wired electromechanical mortise lock is built for 12V/24V operation and is a heavy duty lockbody, which is the other wired option alongside the Command Access ML19092-M. The ML19092-M runs on 11 to 30 VDC with a 400mA maximum draw and 10mA holding current, and its EL or EU behavior is chosen in the field rather than fixed at order time.
9) What standalone keypad mortise lock can be used where there is no access control system to wire into?
Standalone options that need no panel or wiring run include the Alarm Lock DL3500CR Trilogy, a Grade 1 electronic mortise lock with 300 user codes and classroom function for 1-5/8 to 1-7/8 inch doors, the BEST 45HZ EZ Series electronic keypad mortise lock with key override, and the Schlage CO-100-MS-40-KP standalone electronic mortise lock with a keypad reader, Grade 1, privacy function, for 1-3/4 inch doors. These are credential-at-the-door products. The Command Access ML19092-M carries no reader or keypad of its own; its outside lever is driven by 11 to 30 VDC from the system.
10) Do I need to specify handing when ordering the ML190 mortise lock?
Handing is not an ordering decision on the ML190. It is field reversible, and the handing changes without pulling the cover off the lock. For a property manager or contractor stocking spares across a building with a mix of left and right hand openings, that means one lock on the shelf covers any door.
11) What happens to a motorized mortise lock if power drops mid-cycle?
The ML190 carries a True Cycle feature: the motor returns to its original position even if power is lost partway through a cycle. That matters on a brownout or a controller reboot, where a lesser motorized lock can be left with the motor parked halfway and the lever neither locked nor free. It also uses a continuous duty motor, so holding it energized on a fail safe opening is a normal operating state rather than something that cooks the coil.
12) Should I use a motorized mortise lock or a solenoid electrified mortise lock?
Go motorized when the door sits energized for long stretches or the power budget is tight. The ML190 draws 400mA only during the cycle and 10mA to hold, so a fail safe door held unlocked all day costs almost nothing and the lock stays cool and quiet. A solenoid electrified mortise draws its full current the entire time it is energized and buzzes while it does. Pick a solenoid design only where the door cycles rarely and you already have surplus power supply capacity.
13) What is the difference between the Command Access ML19092-M and a wireless mortise lock like the Schlage LEMD-GRW?
The Schlage LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader, mobile enabled deadbolt with LED, Greenwich trim, right hand, and a 3 hour fire rating. It carries its own credential reader and communicates wirelessly, and it is ordered handed. The Command Access ML19092-M is a wired Grade 1 motorized lock with field reversible handing and no onboard reader, switching between EL and EU with a 3 second button press.
14) For a classroom door that needs electronic lockdown rather than storeroom function, what mortise lock should be specified?
For classroom-function electronics, the TownSteel FME-2000 Series is a Grade 1 heavy duty classroom mortise lockset with RFID technology for 1-3/4 inch doors, and the TownSteel FME-4000 Series adds an electronic intruder classroom function with RFID, also Grade 1 heavy duty. The BEST 45HCAINL lockbody covers intruder function as a heavy duty mechanical body. The Command Access ML19092-M is storeroom function, where the inside lever is always free and the outside lever is locked or unlocked electronically.
15) Is a mortise deadbolt like the Sargent 4874 or Alarm Lock DL4500 an acceptable substitute for a motorized mortise lock?
No, those are deadbolt-only products and do not operate a latchbolt through a lever. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset, the Alarm Lock DL4500DB is a Grade 1 electronic mortise deadbolt with 2,000 user codes and a privacy keypad, and the Kaba Ilco 185 Series is a deadbolt-function mortise lock with no handing. The Command Access ML19092-M is a complete lever lockset whose latchbolt is retracted by the outside key or the inside lever, with the outside lever controlled electrically.
16) Which electrified mortise lock has the lowest current draw for a POE or battery-backed power supply?
The Command Access ML19092-M draws 400mA maximum with a 10mA holding current and uses a continuous duty motor, which is what makes it suitable for POE systems and for fail safe or continuously unlocked cycles. Among the electrified peers, the Dormakaba PowerPlex P2066 Series mortise lock and the Dormakaba E-Plex 2066 Series electronic pushbutton keyless mortise lock take a different approach to power at the door entirely rather than drawing from a system supply.
17) What mortise lock should be used for a card and pushbutton opening that needs both credentials at the door?
The Dormakaba E-Plex E5086 is a Grade 1 entry/egress electronic pushbutton and card back to back mortise lock, and the Dormakaba LX-I-M002 Saffire is an electronic RFID mortise lockset with BLE mobile access at BHMA Grade 2. The Accentra NTM623-NR nexTouch Generation 3 is a Grade 1 mortise lock with a capacitive touchscreen keypad, no deadbolt, with cylinder override. These handle the credential at the lock. The Command Access ML19092-M takes its lock and unlock command from the system over 11 to 30 VDC, so the reader is mounted separately.
18) What is the difference between a complete motorized mortise lock and a mortise lock body sold on its own?
A lock body such as the BEST 45HCAC, a heavy duty public entrance function mortise lock body with field reversible operation, or the BEST 45HCAINL heavy duty intruder function lockbody, is the chassis only and still needs trim specified. The Command Access ML19092-M is supplied as a complete lock with lever and rose trim, ordered by finish in 613 oil rubbed bronze, 625 polished chrome, or 626 satin chrome, in A or B rose, and 12V or 24V.
19) Is the Command Access ML190 made in the USA for a government job?
Command Access states Buy America Act compliance on the ML190 Series, which is what a federal or municipal procurement office is usually checking before the PO goes through. Combined with Grade 1 construction and UL listing, it is the sort of package that clears a government or institutional spec.
20) What is the difference between the Command Access ML19092-M and the Corbin Russwin ML2003 or Sargent 7925?
Those are mechanical mortise locks in different functions. The Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series for 1-3/4 inch doors, and the Sargent 7925 is a Grade 1 heavy duty 7900 Series dormitory exit function mortise lock with rose trim and a single cylinder deadbolt. Neither takes power. The Command Access ML19092-M is storeroom function and electrically controlled, drawing 400mA maximum with a 10mA holding current.
21) Can a Baldwin 6310 or Marks USA 21AC mortise lock replace a Command Access ML19092-M?
They are not interchangeable. The Baldwin 6310 is an entrance/storeroom knob by knob mortise lock body with a 2-1/2 inch backset for doors 1-3/8 inch and over, and the Marks USA 21AC is an entrance double cylinder ornamental iron mortise lock with a round knob for 1 inch doors. Both are mechanical, and the backset and door thickness they are built around differ from a heavy duty commercial mortise prep. The Command Access ML19092-M is a Grade 1 heavy duty electrified lever lockset for commercial openings.
