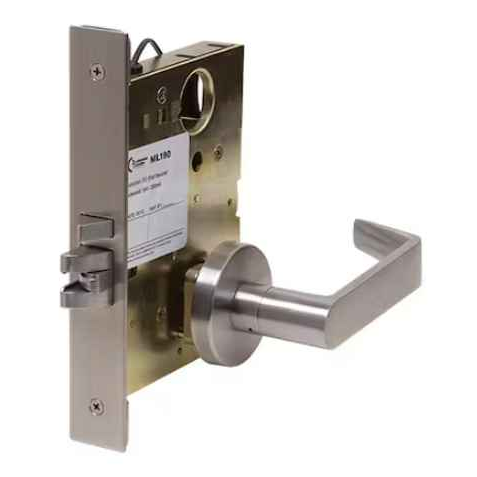

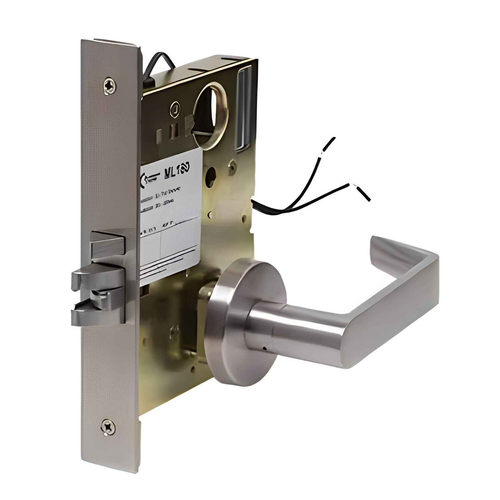

Command Access ML190 Motorized Schlage L9000 Retrofit Mortise Lock Chassis with 12V/24VDC Operation

Command Access ML190 Motorized Schlage L9000 Retrofit Mortise Lock Chassis with 12V/24VDC Operation

(No reviews yet) Write a Review

Model: ML19092-M-EL/EUCH 24V

In Stock (leaves warehouse same day if ordered before 3pm ET)

$430.00
$364.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Command Access ML190 Motorized Schlage L9000 Retrofit Mortise Lock Chassis with 12V/24VDC Operation

Professional Motorized Mortise Lock Solution

The Command Access ML190 Series motorized mortise lock chassis provides a high-quality Grade 1 retrofit solution for Schlage L9000 series applications. This heavy-duty chassis features field-selectable fail-safe/fail-secure operation (EL/EU) with the press of a button, supports both 12V and 24VDC power systems, and offers POE-friendly operation with a maximum current draw of 400 mA and extremely low holding current of 10 mA. The chassis measures 10.5" x 3.75" x 2.5" and weighs 3 lbs for reliable commercial installation.

Professional Features & Benefits

  • Compact Chassis Dimensions: 10.5" x 3.75" x 2.5" design fits standard mortise lock preparations for versatile retrofit applications.
  • Heavy-Duty Grade 1 Construction: Built to withstand years of commercial use with professional-grade materials and engineering.
  • Flexible Power Options: Ready to plug into 12V or 24VDC systems with POE-friendly low power consumption for various installation requirements.
  • Efficient Power Management: Maximum current draw of 400 mA with extremely low holding current of 10 mA for energy-efficient operation.
  • Field-Selectable Operation: EL/EU configuration with the press of a button allows fail-safe or fail-secure operation to meet specific security requirements.
  • Field Handing Capability: Allows for on-site configuration to accommodate left-hand or right-hand door applications.
  • Multiple Function Options: Available in ML19092 Storeroom and ML19095 Institutional configurations for different access control needs.
  • Manufacturer Warranty: 3 Year Warranty provides added confidence and protection for commercial installations.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy-Duty
  • Electronic: Yes
  • Lock Type: Mortise
  • Product Category: Mechanical Locks
  • Product Group: Mechanical Locks
  • Product Subgroup: Mortise Locks and Trim
  • Product Type: Electrified Mortise Locks
  • Series: ML190 Series
  • Subcategory: Mortise Locks
  • Warranty: 3 Year Warranty

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Command Access Quality?

Command Access ML190 Series mortise lock chassis deliver professional-grade reliability with Grade 1 construction built to withstand years of commercial use. The 3 Year Warranty and heavy-duty engineering provide confidence for demanding applications. Engineered for commercial installations where dependable motorized lock performance and flexible configuration options are essential.

Manufacturer Resources

Command Access Catalog

Product Specs

Product Group:
Mechanical Locks
Series:
ML190 Series
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Mortise
Warranty:
3 Year Warranty
Duty Level:
Heavy-Duty
Product Type:
Electrified Mortise Locks
Subcategory:
Mortise Locks
Product Category:
Mechanical Locks
Department:
Door Hardware

Command Access ML19092-M-EL/EUCH 24V – Frequently Asked Questions

1) Will the Command Access ML190 chassis drop into an existing Schlage L9000 mortise prep?
That's exactly what the ML190 is built for. It's a motorized chassis made as a retrofit for Schlage L9000 series mortise locks, so it goes into the L9000 pocket already cut in the door and reuses the existing prep. You're swapping the chassis to add electrified control, not re-mortising the door.
2) Does the ML190 mortise lock come with trim, levers, or a cylinder?
Chassis only. The ML190 is the motorized lock body by itself, so you carry over the trim, levers, roses and cylinder from the Schlage L9000 you're retrofitting, or order them separately. Plan the job that way before you pull the old lock: if the existing trim is damaged or you're changing lever style, that's a separate line on the order.
3) Can I switch the ML190 between fail-safe and fail-secure after it's installed?
Yes, and without taking it apart. EL/EU is field-selectable at the press of a button, so one chassis covers both. Fail-safe (EU) unlocks when power drops, which is what you want on an egress path tied into the fire alarm; fail-secure (EL) stays locked on power loss, which is the normal choice for a storeroom or an exterior opening. Decide by the code requirement on that door, not by what's in the box, because you can set it either way on site.
4) Can the ML190 mortise lock run on a PoE access control system?
It will. Max current draw is 400 mA with a holding current of 10 mA, which is what makes it PoE friendly, and it accepts either 12VDC or 24VDC. The 10 mA hold is the number that matters when you're sizing a power supply for a bank of doors: the inrush is brief, the standing load per lock is tiny. Pick the 12V or 24V version to match the supply you already have on the panel.
5) What's the difference between the ML19092 storeroom and ML19095 institutional function?
Storeroom (ML19092) keeps the outside lever locked at all times and the key or the electric signal retracts the latch, with the inside lever always free for egress. Institutional (ML19095) locks both levers, so entry from either side requires a key or a valid credential. Storeroom is the usual pick for offices, IT rooms and supply closets. Institutional shows up in secure holding, behavioral health and similar spaces where you don't want free passage in either direction. Check egress requirements for the opening before you specify institutional.
6) Do I need to order the ML190 handed for a left or right hand door?
No. Handing is set in the field, so one chassis covers left and right hand openings. The two things you do specify at order time are function (storeroom or institutional) and voltage (12V or 24V).
7) I have Schlage L9000 locks across the building. Can I electrify just a few doors without changing the rest?
Yes, and that's the strongest reason to use this chassis. Because the ML190 retrofits into the L9000 prep, an electrified door keeps the same lock pocket, the same trim and the same look as the mechanical L9000s on the rest of the floor. Card-reader doors match the key-only doors visually, and your prep drawings stay the same across the fleet. If you're adding a straight mechanical L9000 opening alongside them, the Schlage L9050BDC entrance/office lock is a Grade 1 heavy duty L Series lock for 1-3/4 inch doors.
8) What is the closest equivalent to the Command Access ML190 if the opening needs a complete mortise lockset rather than a chassis?
The SDC 7600 Series is a Grade 1 motorized latch retraction mortise lockset with 24VDC control, supplied as a lockset rather than a chassis alone. The ML190 is a motorized mortise lock chassis intended as a Schlage L9000 retrofit, so the existing L9000 trim and cylinder stay on the door; the SDC 7600 is specified as a full lockset fitted to a 1-3/4 inch door. Both are Grade 1 heavy-duty electrified mortise products.
9) What should I use instead of the ML190 if the door does not need to be electrified at all?
The Schlage L9050BDC is a mechanical mortise entrance/office lock, single cylinder non-deadbolt function, with a disposable SFIC, Grade 1 heavy duty, for a 1-3/4 inch door. It is an L Series mortise lock with no electrical connection. The Command Access ML190 is the motorized chassis for L9000 openings that do need remote release, with field-selectable fail-safe or fail-secure operation. On an opening with no access control home run, the mechanical L9050BDC covers it.
10) Should I use a motorized mortise lock like the ML190 or a solenoid-driven one?
The ML190 uses a motor, which is why the standing draw is 10 mA and 400 mA peak, and why it works on PoE power. A solenoid lock holds current the whole time it's energized, so it needs a heftier supply and it buzzes. If you'd rather go solenoid, the SDC Selectric 7800 PRO Series is a solenoid controlled mortise lock with a vandal resistant clutch. The other split is retrofit versus whole lockset: the ML190 is a chassis that goes into a Schlage L9000 pocket, while the SDC 7600 Series is a complete Grade 1 motorized latch retraction mortise lockset on 24VDC if you're starting from a bare door.
11) Is the ML190 mortise chassis rated for a high-traffic commercial opening?
It's a Grade 1, heavy-duty commercial chassis, which is the top ANSI/BHMA tier for mortise locks and the level normally written into school, hospital and government specs. That's the class you want on a main entrance, a classroom corridor or a stairwell door that cycles all day, not a light-duty residential-grade lock.
12) Do I order the 12V or the 24V version of the ML190?
Match it to the power supply feeding the door. Both are offered in each function, so it's a straight pairing: storeroom or institutional, then 12V or 24V. If you're running the locks off PoE or off an existing access control panel, use whatever that panel already outputs rather than adding a second supply. Ordering the wrong voltage isn't something you can change in the field the way handing and EL/EU are.
13) How does the DynaLock EML-1 compare to the ML190 for a storeroom function opening?
The DynaLock EML-1 is an EML Series electrified mortise lock in storeroom function, so it covers the same storeroom application as the Command Access ML190 in its ML19092 storeroom configuration. The ML190 is also offered in an ML19095 institutional configuration and is handed in the field, and its fail-safe/fail-secure mode is selected on site with the press of a button. If the job needs institutional function or on-site EL/EU selection across a run of doors, that is where the two part company.
14) If my access control panel only supplies 24VDC, which electrified mortise locks fit?
The Command Access ML190 accepts either 12V or 24VDC, so a 24VDC panel drives it directly with no change of part number, and it is POE-friendly at 400 mA maximum draw. The SDC 7600 Series is specified with 24VDC control. Both suit a 24VDC head end; the ML190 is the one that also carries over if part of the building runs 12V.
