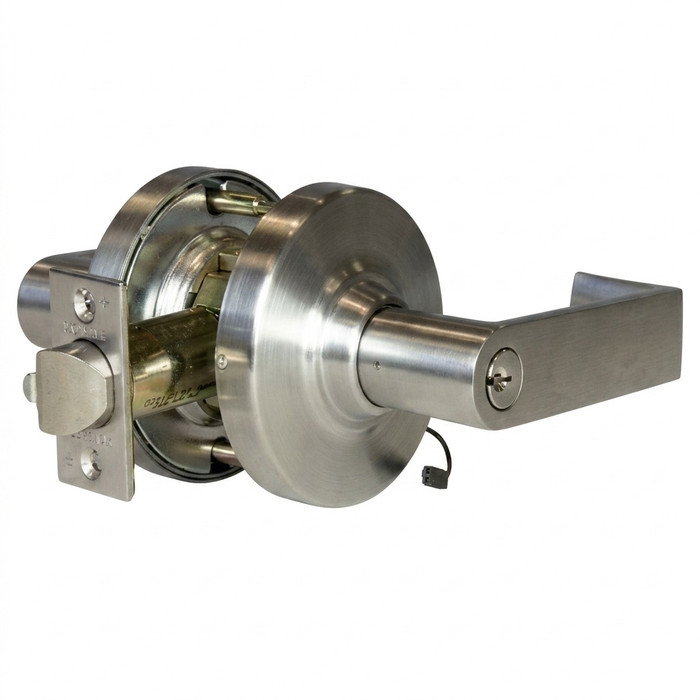

CLN Series – Electrified Schlage ND Cylindrical Lock
Model Reference: CLN80PEL / CLN80PEU
Search Keyword Targeting: cln80
The CLN80 series by Command Access delivers a high-performance, electrified cylindrical lock based on the trusted Schlage ND80 mechanical platform. Designed for heavy-use environments like educational campuses, government facilities, and healthcare institutions, this retrofit-grade solution enables remote keyless access and egress control, supporting both fail safe (PEL) and fail secure (PEU) configurations.
? Key Functions – CLN80PEL / CLN80PEU
-
CLN80PEL (Fail Safe): Outside lever is locked electronically. Power must be applied to allow access. Always free egress from the inside.
-
CLN80PEU (Fail Secure): Outside lever is unlocked electronically. Removing power secures the door. Always free egress from the inside.
⚙️ Technical Features
-
Continuous Duty Solenoid: Ideal for sustained unlock cycles or fail-safe scenarios
-
Plug-in Bridge Rectifier: Allows for flexible 12V or 24V AC/DC power input
-
Standard Schlage C Keyway: Compatible with Schlage key systems (other keyways available upon request)
-
Built-in REX/AE Switch Option: Supports request-to-exit signaling (optional on all functions)
-
Durable & Reliable: Engineered for high-traffic, security-critical environments
-
3-Year No-Hassle Warranty: Ensures long-term confidence in performance
? Power & Electrical Specifications
-
Operating Voltage: 12V or 24V AC/DC (±10%) – specify at time of order
-
Amperage Draw:
-
12VDC: 250mA
-
24VDC: 150mA
-
-
Solenoid Coil Resistance:
-
12V: 49 Ω
-
24V: 159 Ω
-
-
Power Consumption: 3 Watts
?️ Customization & Options
-
Fail Safe / Fail Secure field selectable (factory-configured)
-
Schlage Original Keyways available by special order
-
REX / AE Switch upgradeable
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- CLN Series
- Product Subgroup:
- Bored Locksets
- Product Type:
- Electrified Cylindrical Locks
- Subcategory:
- Cylindrical
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Lock Type:
- Cylindrical
- Warranty:
- 3 Year Warranty
- Function:
- Storeroom
- Duty Level:
- Heavy-Duty
- Tags:
- cln80
