CL37 Series

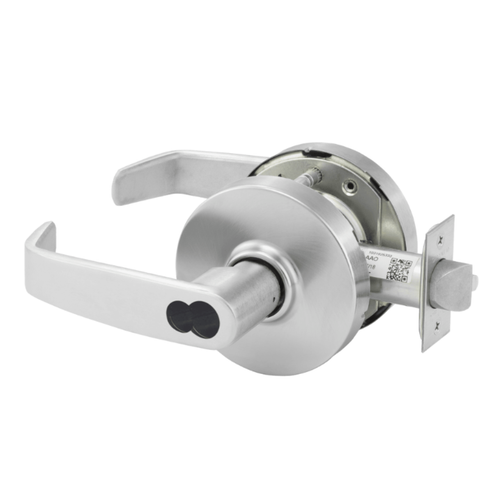

Electrified Sargent 10 Line Cylindrical Complete Lock
- The Command Access electrified version of the Sargent 10 Line series cylindrical lock line allows for remote keyless ccess and egress control for heavy use applications where security and safety is critical.
Features:
- Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
- Plug-in bridge rectifier that allows for an AC or DC power source
- No-hassle 3-Year warranty
Options
- Available Fail Safe (Electrically locked) or Fail Secure (Electrically Unlocked)
- Voltage option - 12V or 24V (AC/DC)
- REX - Request to Exit or AE switch available (on all functions)
Specifications:
Voltage:
- Operating voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
- Amperage - 12V = 250 mA / 24V = 150 mA
- Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
- Power consumption - 3 watts
Model Applications Available
- CL370EL Storeroom: (fail safe) - Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt.
Inside lever is always free for immediate egress - CL371EU Storeroom: (fail secure) - Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside
lever is always free for immediate egress
