CL05 Series

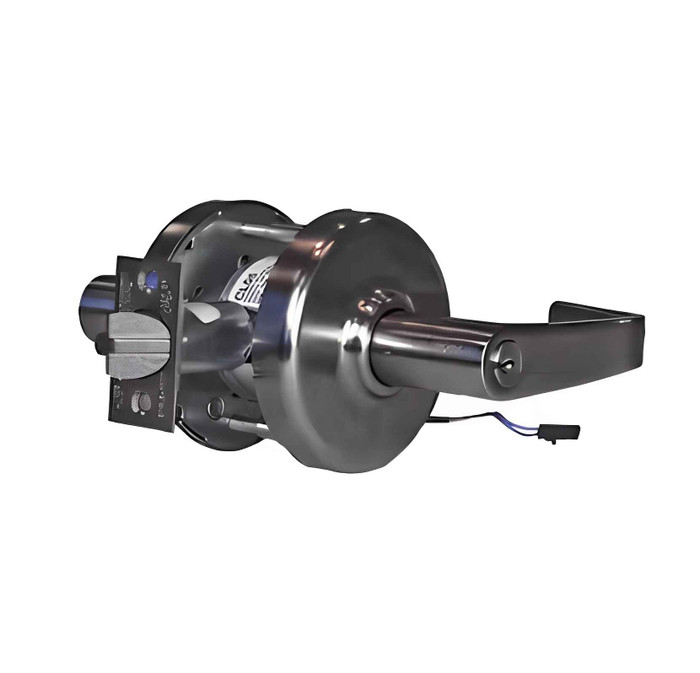

Electrified Corbin Russwin 3300 Cylindrical Complete Lock
- The Command Access electrified version of the Corbin Russwin 3300 series cylindrical lock< line allows for remote keyless access and egress control for heavy use applications where security and safety is critical.
Features:
- Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
- Plug-in bridge rectifier that allows for an AC or DC power source
- No-hassle 3-Year warranty
Options
- Available Fail Safe (Electrically locked) or Fail Secure (Electrically Unlocked)
- Voltage option - 12V or 24V (AC/DC)
- REX - Request to Exit or AE switch available (on all functions)
Specifications:
Voltage:
- Operating voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
- Amperage - 12V = 250 mA / 24V = 150 mA
- Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
- Power consumption - 3 watts
Model Applications Available
- CL03EL Storeroom: (fail safe) - Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress
- CL05EU Storeroom: (fail secure) - Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside
lever is always free for immediate egress.
