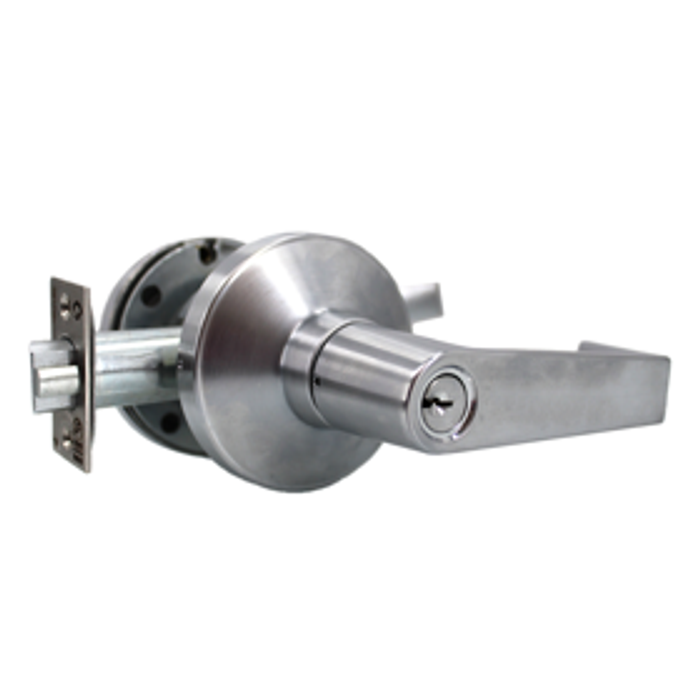

Command Access LPC190-HD Series 24V Electrified Cylindrical Lock with Motorized Latch Retraction
Professional Motorized Latch Retraction Solution for Commercial Applications
The Command Access LPC190-HD Series electrified cylindrical lock delivers industry-first motorized latch retraction technology in a standard cylindrical lockset format. Operating on 24V power with electronic unlock capability, this Grade 1 lock features a 2-3/4" backset, Schlage C keyway, and ASA strike configuration. Built in the USA with UL listing, this heavy-duty lock provides fail-secure operation for demanding commercial applications requiring push-pull access control.
Professional Features & Benefits
- Motorized Latch Retraction: Industry-first technology brings electronic latch control to standard cylindrical locksets for push-pull conditions and automatic operator applications.
- Low Current Operation: 550mA peak current and 15mA hold current enables multiple locks on one power supply with extended wire runs up to 300 feet using 18ga wire.
- Built-in Smart Module: Simplifies installation with low current draw and provides latch sensing status for system integration.
- Continuous Duty Rating: Auto re-engage capability if latch is pulled from held back position ensures reliable operation in high-traffic applications.
- Grade 1 Construction: High-quality lock built in the USA designed to withstand years of heavy commercial use.
- Standard Door Preparation: Uses standard ‘161’ door prep with multiple trim and finish options for versatile installation.
- Built-in REX Switch: Optional request-to-exit functionality available for complete access control integration.
- 3-Year No Hassle Warranty: Comprehensive warranty coverage provides confidence and protection for commercial installations.
Technical Specifications
- Backset (Distance): 2-3/4"
- Commercial/Residential: Commercial
- Department: Door Hardware
- Door Strike: ASA Strike
- Duty Level: Heavy-Duty
- Electronic: Yes
- Fail-Safe/Fail-Secure: Fail-Secure
- Keyway Profile: Schlage C Keyway
- Lock Type: Cylindrical
- Product Category: Mechanical Locks
- Product Function: Passage
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- Product Type: Electrified Cylindrical Locks
- Series: LPC190-HD Series
- Subcategory: Cylindrical
- Warranty: 3 Year Warranty
Professional Applications
- Commercial Building Security Systems
- Healthcare Facility Access Control
- Educational Institution Safety Systems
- Single-Occupancy Restroom Applications
- Automatic Operator Integration
- Push-Pull Access Control Systems
- Handicap Accessible Entry Points
Why Choose Command Access Quality?
Command Access LPC190-HD Series locks deliver professional-grade reliability with Grade 1 construction built in the USA and rated for continuous duty operation. The 3-year no hassle warranty and UL listing provide added confidence for demanding commercial applications. Engineered for demanding commercial applications where dependable motorized latch control and long-term performance are essential.
Manufacturer Resources
Command Access Catalog
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- LPC190-HD Series
- Product Subgroup:
- Bored Locksets
- Product Type:
- Electrified Cylindrical Locks
- Subcategory:
- Cylindrical
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Lock Type:
- Cylindrical
- Warranty:
- 3 Year Warranty
- Duty Level:
- Heavy-Duty
- Fail-safe / Fail-secure:
- Fail-Secure
- Product Function:
- Passage
- Keyway Profile:
- Schlage C Keyway
- Door Strike:
- ASA Strike
- Product Category:
- Mechanical Locks
- Backset (Distance):
- 2-3/4"
- Department:
- Door Hardware
Command Access LPC190EU-L6-24V-626-SC – Frequently Asked Questions
1) Will the Command Access LPC190-HD electrified lock fit a standard 161 door prep?
Yes. The LPC190-HD drops into the standard '161' cylindrical prep with a 2-3/4 inch backset, so on a door already bored for a commercial cylindrical lockset there's no new door machining. Strike side is an ASA strike, which is the standard commercial frame prep, so the frame usually carries over too. What changes is that you now have to get 24V power to the door, which the mechanical lock it replaces never needed.
2) What happens to the LPC190-HD lock if the power goes out?
It stays locked. The LPC190-HD is fail-secure, so on power loss the latch drops back into the strike and the door secures. Free egress from the inside is still there mechanically, since this is a passage function lock, but a power drop kills the electronic unlock. If your application needs the door to unlock when power is lost, this is the wrong device for that opening.
3) How far can I run wire to a Command Access LPC190 motorized latch retraction lock?
Up to 300 feet on 18ga wire. Draw is 550mA peak and 15mA hold, which is low enough that you can typically put several of these on one 24V supply instead of dedicating a supply per door. That hold current is the number that matters when you're sizing a panel for a corridor of openings.
4) Can I use a cylindrical lock with an automatic door operator for a push-pull restroom?
That's exactly what motorized latch retraction is for. The LPC190-HD pulls the latch fully back and holds it there on command, so an operator can swing the door without fighting a latched bolt. It's rated continuous duty and auto re-engages if the latch gets pulled out of the held-back position. Single-occupancy restrooms and accessible entries are the typical use. An electric strike is the alternative, but that retracts the keeper in the frame instead of the latch, so it won't give you a true push-pull condition.
5) Do I need a separate request-to-exit switch with the LPC190EU lock?
No, if you order the REX version. The LPC190-HD is built with or without a built-in request-to-exit switch, and it's an ordering choice you make up front, not something added later. The built-in smart module also reports latch status, so an access control panel can see whether the latch is actually retracted. Order the non-REX version only when your panel already gets its exit signal elsewhere.
6) What keyway does the Command Access LPC190-HD use, and can it go on my existing key system?
Schlage C keyway. If your building is already keyed in Schlage C, the lock can be worked into that system by your locksmith without changing the rest of the openings. If your masterkey system runs a different keyway, this one won't key into it.
7) Is the Command Access LPC190-HD heavy enough for a high-traffic commercial door?
It's a Grade 1, heavy-duty commercial lock built in the USA and UL listed, with a continuous duty rating on the motor. Grade 1 is the top ANSI/BHMA tier for commercial cylindrical locks, which is what you want on hospital, school, and public restroom doors where the lock cycles all day.
8) Is a passage function lock secure enough to control a door on its own?
Not on its own in the mechanical sense. The LPC190-HD is a passage function lock, so the lever is always free from both sides mechanically; the security comes from the access control system driving the 24V latch retraction, plus the Schlage C cylinder for key control. If you need the outside lever to stay rigid until credentialed, a passage-function motorized retraction lock isn't the device for that opening.
9) What finish and trim does the Command Access LPC190EU lock come in?
626 satin chrome with L6 lever trim. That's the finish and lever you'll get, in either the REX or non-REX configuration. 626 is the common commercial finish, so it lines up with most existing satin chrome hardware on a building's other openings.
