Command Access MLRK1-ARW Motor...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$575.00
$420.67

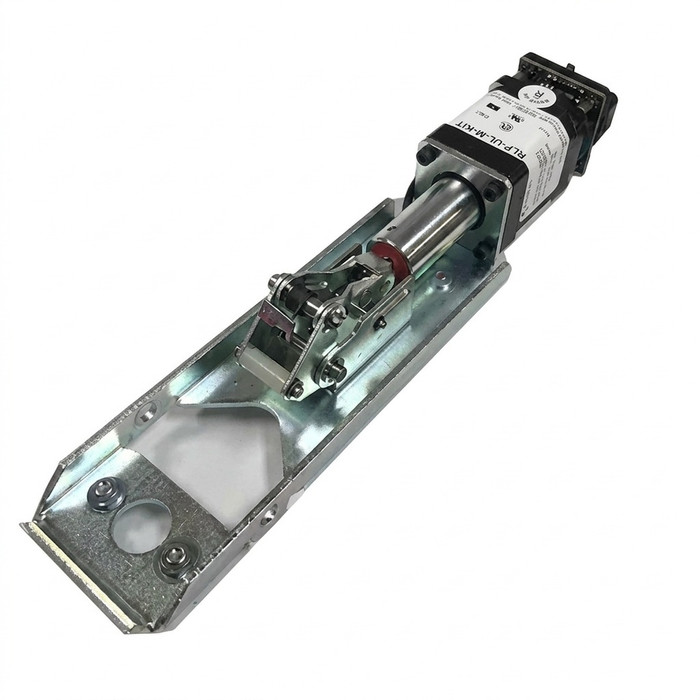

Command Access Command Access MLRK1-ARW Motorized Latch Retraction Kit for Arrow 1000 Series Exit Device CAT MLRK1-ARW

Command Access MLRK1-ARW Motorized Latch Retraction Kit for Arrow 1000 Series with Smart Module Technology

(No reviews yet) Write a Review

Model: MLRK1-ARW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$575.00
$420.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Command Access Motorized Latch Retraction Kit for Arrow 1000 Series with Smart Module Technology

Advanced Electronic Exit Device Enhancement Solution

The Command Access Motorized Latch Retraction Kit for Arrow 1000 Series delivers professional-grade electronic dogging functionality with next-generation smart module technology. Operating on 22 to 28 VDC with field-switchable high torque mode, this kit features the innovative MM4 Smart Module with on-board diagnostics and 5-second PTS electronic adjustment for post-installation convenience. Designed for continuous duty operation with auto re-engage capability and supporting wire runs up to 300 feet with 18ga wire.

Professional Features & Benefits

  • Next Generation MM4 Smart Module: On-board diagnostics with audible feedback for adjustment and power issues provides enhanced troubleshooting capabilities.
  • PTS Electronic Adjustment: 5-second electronic adjustment system enables easy post-installation fine-tuning without mechanical adjustments.
  • Continuous Duty Electric Dogging: Rated for continuous operation with automatic re-engagement if push pad is pulled from dogged position for enhanced security.
  • Field-Switchable Power Modes: Standard mode (1.3A peak, 170mA hold) or High Torque mode (2A peak, 250mA hold) for versatile application requirements.
  • Extended Wire Run Capability: Supports up to 300 feet with 18ga wire allowing centralized power supply placement for installation convenience.
  • Quick Connect Integration: 8-foot cable with Quick Molex Connect for MM4 module ensures reliable power supply connections.
  • Built-in Request-to-Exit Option: Optional integrated request-to-exit functionality available for comprehensive access control integration.
  • Manufacturer Warranty: 3-year "no hassle" warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Subgroup: Parts and Accessories
  • Product Type: Exit Device Trim
  • Product Voltage: 22 to 28 VDC
  • Series: MLRK1-ARW Series
  • Subcategory: Exit Device Trim
  • Warranty: 3 Year Warranty

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Safety Systems
  • Healthcare Facility Access Control
  • Industrial Facility Monitoring
  • Retail Loss Prevention
  • Government and Municipal Buildings
  • Emergency Exit Compliance

Why Choose Command Access Quality?

Command Access Motorized Latch Retraction Kit products deliver professional-grade reliability with next-generation MM4 Smart Module technology rated for continuous duty operation. 3-year "no hassle" warranty provides comprehensive coverage and peace of mind. Engineered for demanding commercial applications where dependable electronic access control performance is essential.

Manufacturer Resources

Command Access Catalog

Product Specs

Product Group:
Electronic Access Controls
Series:
MLRK1-ARW Series
Product Subgroup:
Parts and Accessories
Subcategory:
Exit Device Trim
Commercial/Residential:
Commercial
Product Type:
Exit Device Trim
Electronic:
Yes
Warranty:
3 Year Warranty
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Voltage:
22 to 28 VDC
Product Category:
Electronic Access Controls
Department:
Door Hardware

Command Access MLRK1-ARW – Frequently Asked Questions

1) Which exit devices does the Command Access MLRK1-ARW motorized latch retraction kit fit?
The MLRK1-ARW is built specifically for Arrow 1000 Series exit devices. It is a retrofit kit that installs into the existing device to add motorized latch retraction, so it is not a universal part and will not drop into another manufacturer's rim or vertical rod device. Order the matching kit for the brand and series on your door.
2) What power supply do I need for a Command Access MLRK1 latch retraction kit?
Feed it 22 to 28 VDC. Current draw depends on which mode you switch it to in the field: standard mode pulls 1.3A peak and holds at 170mA, high torque mode pulls 2A peak and holds at 250mA. Size the supply for the peak inrush of every device you are driving, not just the hold current, and pick the mode before you calculate the load.
3) How far can I run wire from the power supply to the exit device?
Up to 300 feet with 18ga wire. That is what lets you centralize the supply in an electrical or IT room instead of mounting a transformer above every opening. The kit ships with an 8-foot cable using a Quick Molex Connect at the MM4 module end, so your field run lands at a connector rather than a splice into the motor.
4) Is this kit rated to stay energized all day for electric dogging?
Yes, it is continuous duty. You can hold the latch retracted through business hours without cooking the motor, and if someone pulls the push pad out of the dogged position the kit auto re-engages rather than leaving the opening in a half state. That behavior is why it suits schools, retail and healthcare corridors that unlock on a schedule.
5) Should I use motorized latch retraction or an electric strike to remotely unlock an exit device?
Motorized latch retraction pulls the exit device's own latch back, so the door pushes open with no latch engaged and the push pad stays free for egress. That is the approach when you want true electric dogging, scheduled unlock, or card-reader release on a door that already has an Arrow 1000 Series device. An electric strike releases the keeper in the frame instead, which means frame prep and a strike that matches the device's latch type. The MLRK1-ARW retrofits the device you already have and leaves the frame alone.
6) Can I get a request-to-exit signal out of this kit, or do I need a separate switch?
Built-in request-to-exit is available as an option on the MLRK1-ARW. If your access control panel needs an REX input from the push pad to shunt an alarm or release a mag lock elsewhere on the opening, specify the RX option up front rather than adding a separate push pad switch later.
7) What does the MM4 Smart Module actually do for troubleshooting on site?
The MM4 module carries on-board diagnostics with audible feedback, so it signals adjustment problems and power problems instead of leaving you chasing a dead motor with a meter. It also supports PTS electronic adjustment, a 5-second routine that fine-tunes the retraction after the device is already hung, which means no pulling the rail back off to make a mechanical tweak.
8) Is the MLRK1-ARW a complete exit device or just the retraction hardware?
It is the motorized retraction hardware only, a replacement-parts level kit that goes inside an Arrow 1000 Series device already on the door. You still need the exit device itself, a 22 to 28 VDC supply, and the access control or timer input that tells it when to retract. Budget the panel and power separately.
9) Is this kit suitable for commercial and institutional buildings rather than residential doors?
Commercial only. Command Access lists the MLRK1-ARW for commercial applications, and the typical uses are school corridors, healthcare access control, government buildings, industrial facilities and retail. Continuous duty operation is what makes it hold up on high-traffic institutional openings.
10) When would I switch the kit to high torque mode?
High torque mode is the field-selectable setting for devices that need more force to pull the latch back, typically heavier or tighter openings where standard mode struggles to retract cleanly. It raises draw to 2A peak and 250mA hold, versus 1.3A peak and 170mA in standard mode, so confirm your power supply has the headroom before you flip it.
