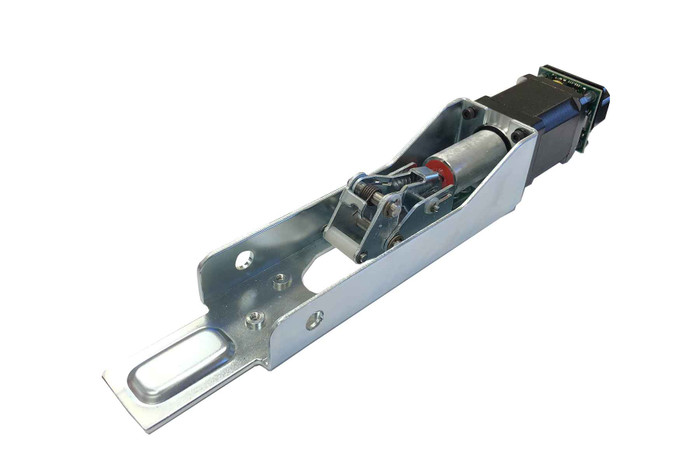

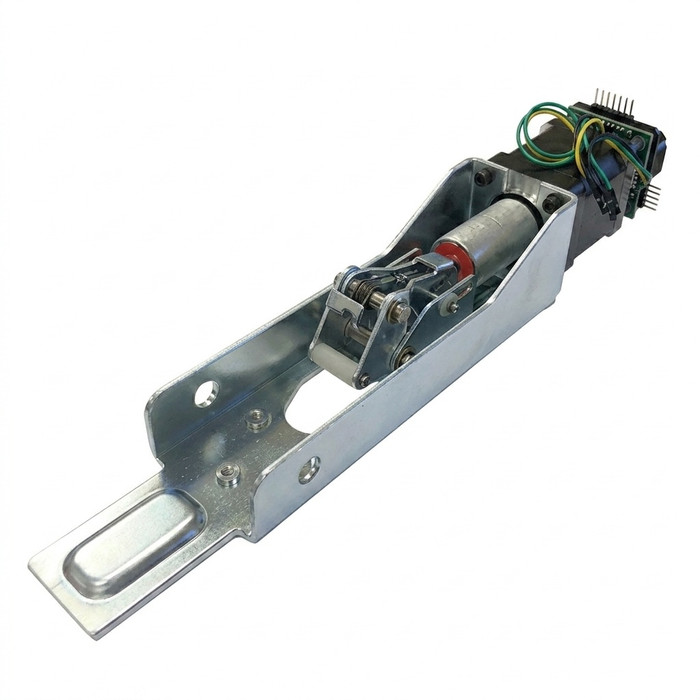

Command Access MLRK1-DOR Motorized Latch Retraction Kit for Dorma 9000 Series Exit Device

MLRK1-DOR

Motorized Latch Retraction Kit for Dorma 9000 Series Exit Device

-The MLRK1-DOR is a practical and cost-effective way to convert a mechanical Dorma series device to an electrified latch pullback device, while maintaining the UL listing. Our easy-to-install motor driven kit installs in moments. It is equipped with PTS technology allowing for an easy post installation adjustment of the latch/latches, Last but not least, it features an updated motor module with 2 different energu consumption settings from energy conscious to high torque to get the tough job done!

Features:

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Autore-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
• Optional Request-to-exit can be built-in
• 3-year “no hassle” warranty

Specifications

Voltage:

• Voltage range – 24 +/- 10%
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 900 mA, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, High Average Current Hold: 250mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300' with 18ga wire

Product Details:

• Box: 10.5” x 3.75”: x 2.5”•
• Weight: 2 Lbs

Device Cutdown Details:

• 36" & 48" at least 1" of filter plate
