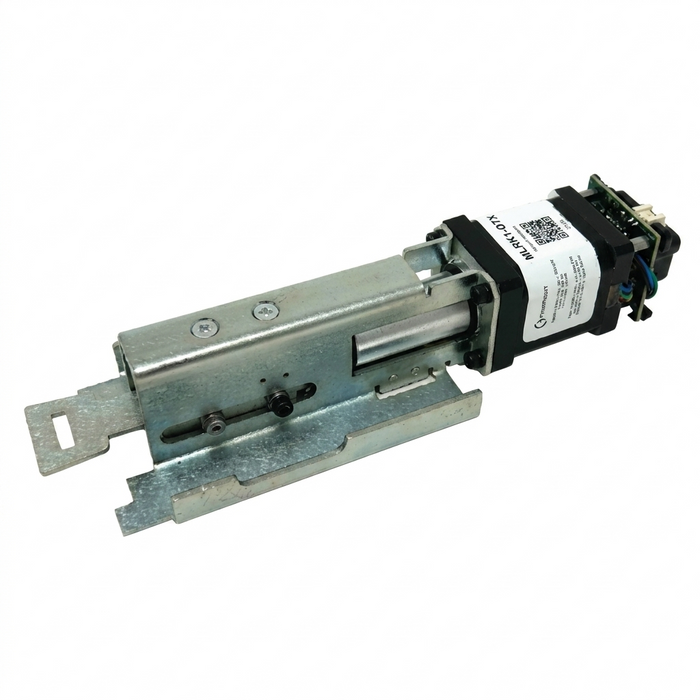

Command Access MLRK1-DTX 36/48" UL Motorized Latch KIT for Detex Advantage and Value Series with REX (Request to Exit)

MLRK1-DTX

The MLRK1-DTX is a robust, straightforward field-installable motorized latch retraction kit for Detex Advantex & value series exit devices series exit devices. It utilizes a CAT designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1-touch PTS “push to set” technology, making post-installation adjustments a breeze. An optional built-in REX switch is available on all units!

Features:

• New Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• 1 Touch “PTS”: Quick & easy post-installation adjustment
• Electric dogging rated for continuous
• Auto-re-engage if push pad is pulled from dogged position
• Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
• Up to 300’ wire run with 2-18ga wire - long wire runs provides installer with convenience of placing the Command locking hardware PS in a centralized location, i.e. the same closet as access control panel
• 8” cable with robust quick Molex connector for MM5 module to connect to incoming power.
• 3 Year “ no hassle” warranty

Models:

• MLRK1-DTX: Motorized latch retraction kit for the Detex Advantex & value series
• MLRK1-DTX REX: Motorized latch retraction kit for the Detex Advantex & value series w/REX
• Replacement Filler Plate: Replacement filler plate for MLRK1- DTX in 36 inch. ED

Specifications:

• Input Voltage: 24VDC +/- 10%
• Average Latch Retraction Current: 900 MA
• Average Holding Current: 215 MA
• Wire Gauge: Minimum 18 Gauge
• Direct Wire Run: No relays or access control units in-between power supply & module
