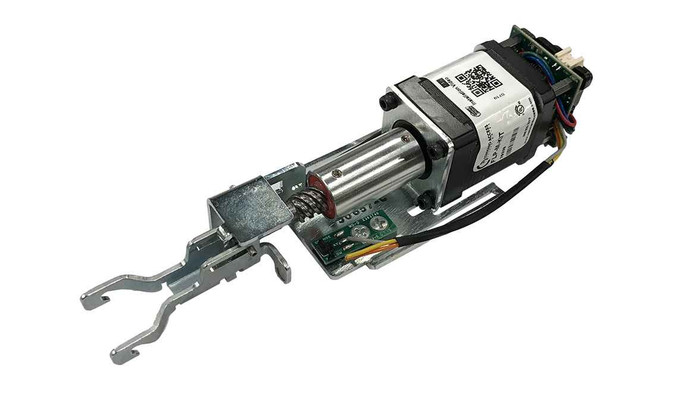

Command Access MLRK1-FAL25 Motorized Latch Retraction Kit for Falcon 24/25 Series Exit Device

MLRK1-FAL25

Motorized Latch Retraction Kit for Falcon 24/25 Series Exit Device

The MLRK1-FAL25 is a practical and cost-effective way to convert a mechanical Falcon 24/25 series device to an electrified latch pullback device. Our easy-to-install motor -driven kit installs in a matter of seconds with no drilling or screws required, a true “drop-in” kit! PTS allows for an easy post-installation adjustment of the latch/ latches. A built-in REX switch is standard on all units! Last but not least, features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

Features:

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• Request-to-exit kit available
• 3-year “no hassle” warranty

Specifications

Voltage:

• Voltage range – 24 to 28 VDC
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 900mA, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300’ with 18ga wire

Product Details:

• 10.5” x 3.75”: x 2.5”
• Weight: 2 Lbs

Device Cutdown Details:

• 36” - 2”
• 48” - 8”
