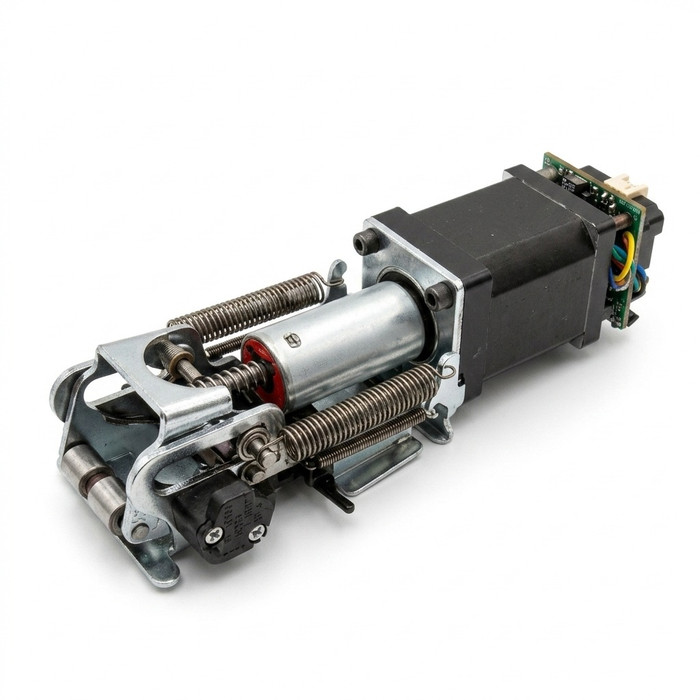

MLRK1-JAC12
Motorized Latch Retraction Kit for Jackson 1275/1285/1295 & Kawneer 1686/1786 Series Exit Device
The MLRK1-JAC12 is a robust, straightforward field-installable motorized latch retraction kit for
Jackson 1275/85/95, Kawneer 1686/1786, & AHT 8/9 series exit devices. It utilizes a CAT-designed
custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It
uses our new 1 TOUCH PTS “Push to Set” technology
Features:
• Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• 1 Touch “PTS”: Quick & easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8’’cable with Robust Quick Molex Connect for MM5 module to conect to incoming power.
• 3-year “No Hassle” Warranty
Specifications
Voltage:
• Voltage range – 24VDC +/- 10%
• System protection - unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 900mA, Average Current Hold: 215mA
• PTS Adjustment - approx. 1/4”
Wire Run:
• 300’ with 18ga wire
Product Details:
• Weight: 2 Lbs
Manufacturer Resources
Product Specs
- Category:
- Parts and Accessories
- Product Group:
- Parts and Accessories
- Series:
- MLRK1-JAC12 Series
- Subcategory:
- Exit Device Trim
- Commercial/Residential:
- Commercial
- Product Type:
- Latch Pullback Kits
- Product Subgroup:
- Motorized & Solenoid Latch Pullback Kits
- Voltage:
- 24VDC
- Warranty:
- 3 Year Warranty
