Command Access MLRK1-KAWP Motorized Latch Retraction Kit for the Kawneer Paneline Series

MLRK1-KAWP Motorized Latch Retraction Kit for Kawneer Paneline® Exit Devices

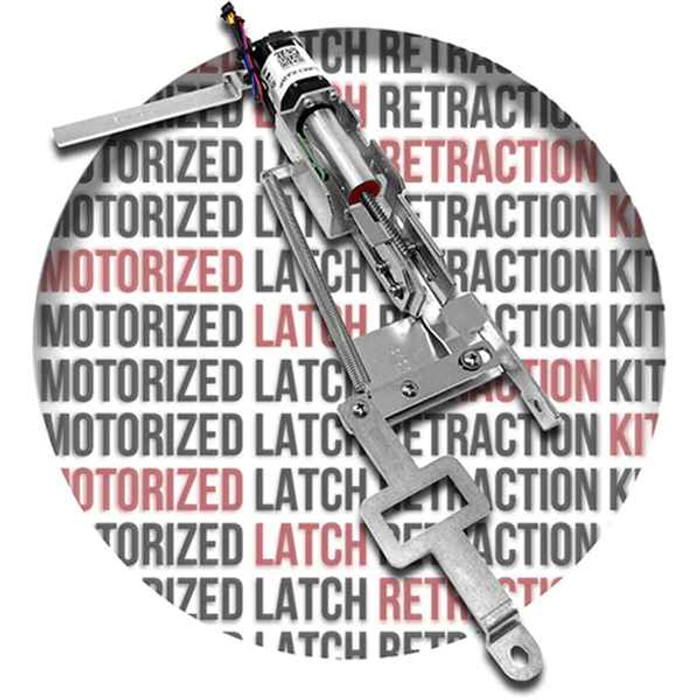

The MLRK1-KAWP by Command Access is a motorized latch retraction kit specifically engineered for Kawneer Paneline® exit devices, delivering unmatched performance and reliability in a compact, installer-friendly format. This innovative solution includes a custom ball screw drive and a CAT-designed stepper motor, optimized to provide maximum latch retraction force while fitting cleanly within the push pad—no clearance issues and no modifications to the device itself. The only required drill point is the raceway, streamlining installation on the door.

This kit is ideal for access control upgrades in commercial settings using Kawneer Paneline exit hardware, where electric latch retraction is needed for compliance or automation.

Key Features:

• MM4 Smart Module
  Embedded with onboard diagnostics and audible feedback to aid in power status and adjustment detection.

• “Push to Set” (PTS) Technology
  5-second electronic post-installation adjustment allows for quick and simple tuning without removing the device.

• Electric Dogging
  Rated for continuous duty and features auto re-engagement if the push pad is pulled from a dogged state.

• Dual Power Modes
  Switch between Low Current and High Torque settings in the field, depending on door conditions and power constraints.

• Long-Run Wiring Support
  Up to 300 feet with 18ga wire, making it convenient to install from a centralized CAT Power Supply (PS210, PS220, PS440B).

• Prepped for REX (Request to Exit)
  Optional field upgrade or factory-integrated for systems requiring exit signal feedback.

• Quick Connect Cable
  An 8-foot cable with a quick connector provides seamless integration into power wiring.

• 3-Year "No Hassle" Warranty
  Backed by Command Access’ trusted product support.

Electrical Specifications:

• Voltage Range: 24 – 25.3 VDC

• System Protection: Auto shutdown if voltage exceeds 28VDC

• Standard Mode: Peak Current 1.3A / Hold Current 215mA

• High Torque Mode: Peak Current 2A / Hold Current 250mA

• PTS Range: Approx. 1/4" adjustment range

Installation Notes:

• Designed for Kawneer Paneline exit devices

• No internal clearance issues—mounts fully inside the push pad

• Requires only a raceway drill point for wire routing

• Compatible with Command Access CAT power supplies only

• Weight: Approx. 2 lbs

The MLRK1-KAWP is the perfect upgrade solution for retrofit or new installations where enhanced door automation is required on Kawneer Paneline exit devices. With its intelligent electronics, precision mechanics, and field-friendly design, it sets the new standard in access control retrofit technology.

Device Cutdown Details:

• Installed in-between activating brackets
