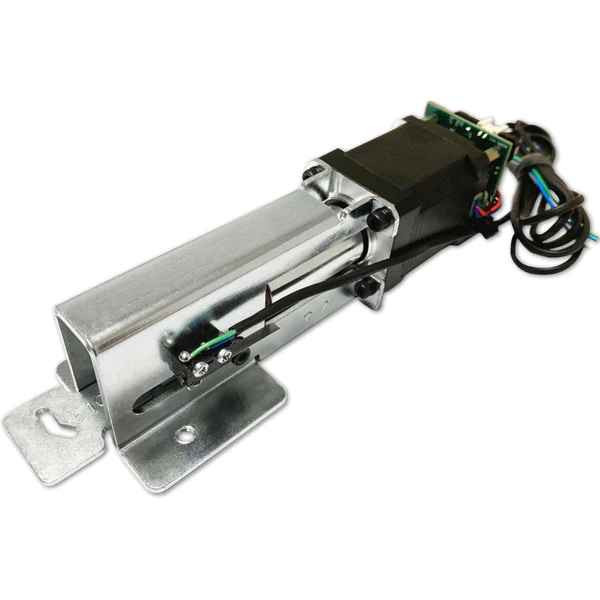

Command Access MLRK1-YAL6 Motorized Latch Retraction Kit for Yale 6000 Series Exit Device

MLRK1-YAL6

Motorized Latch Retraction Kit for Yale 6000 Series Exit Device

The MLRK1-YAL6 is a practical and cost-effective way to convert a mechanical Yale 6000 series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in minutes & includes an optional built-in request to exit. It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the YAL6 features an updated MM module, energy conscious while still being capable of getting tough jobs done!

Features:

• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6” cable with robust Quick Molex Connector for MM4S module to 6’ Power lead to easily connect to power supply

Specifications

Voltage:

VOLTAGE RANGE – 24 to 28 VDC
SYSTEM PROTECTION – UNIT SHUTDOWN WHEN
VOLTAGE EXCEEDS 28VDC
STANDARD - AVERAGE CURRENT PEAK: 900MA,
AVERAGE CURRENT HOLD: 215MA

PTS ADJUSTMENT – APPROX. 1/4”

Wire Run:

• 300’ with 18ga wire

Product Details:

• Box: 10.5” x 3.75”: x 2.5”

Weight: 2 Lbs

15 MASTER PACK:
Weight: 30 lLbs 12.75” x 11.75” x 11”

Cutdown Details:

• 36”/ 48” - 6.5” Filler Plate Needed
