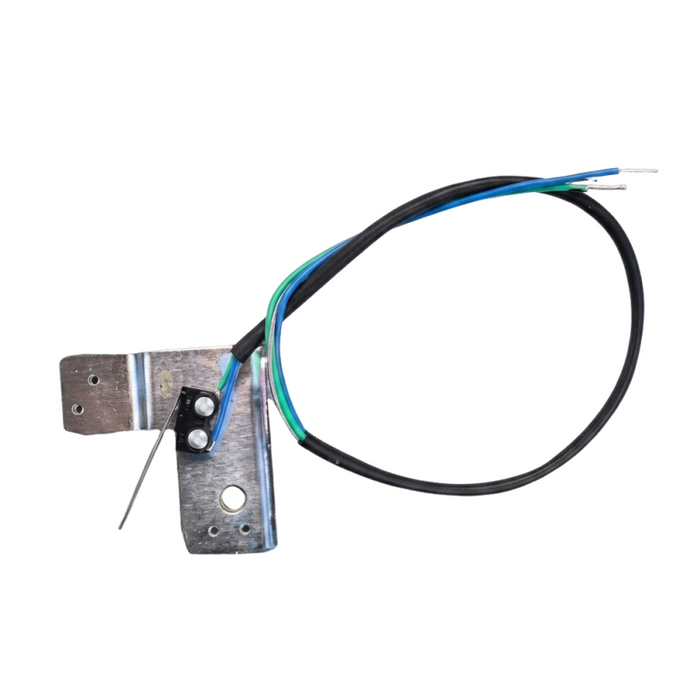

Command Access Command Access SCHREXKIT-ML Field Installable Request to Exit Switch for Schlage L9000 Series Mortise Lock CAT SCHREXKIT-ML

Command Access SCHREXKIT-ML Field Installable Request to Exit Switch Kit for Schlage L9000 Series Mortise Locks

(No reviews yet) Write a Review

Model: SCHREXKIT-ML

In Stock (leaves warehouse same day if ordered before 3pm ET)

$70.00
$48.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Command Access Field Installable Request to Exit Switch Kit for Schlage L9000 Series Mortise Locks

Professional Access Control Integration Solution

The Command Access SCHREXKIT-ML provides field installable request to exit functionality specifically designed for Schlage L9000 series mortise locks. This SPDT (single pull, double throw) switch kit features easy "drop-in" installation that adds a signal to alert the control panel when the door is about to be opened by someone exiting from within the secured area. Compatible with Schlage L9000 and L909x series locks for versatile access control integration.

Professional Features & Benefits

  • Schlage L9000 Series Compatibility: Specifically engineered for Schlage L9000 and L909x series mortise locks for seamless integration.
  • SPDT Switch Configuration: Single pull, double throw design provides reliable switching action for access control systems.
  • Easy Drop-In Installation: Field installable design allows retrofit installation without lock replacement or extensive modification.
  • Complete Installation Kit: Includes REX bracket, REX sticker, strain relief (40243), fire door fuse, and foam pad (40495) for complete installation.
  • Access Control Integration: Provides signal to alert control panel of authorized exit activity from within secured areas.
  • Fire Door Compatible: Includes fire door fuse component for installations requiring fire door compliance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Parts and Accessories
  • Series: SCHREXKIT-ML Switch kits
  • Subcategory: Accessories

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Security Integration
  • Office Building Entry Management
  • Retail Security Systems
  • Government Facility Access Control
  • Multi-Tenant Building Security

Why Choose Command Access Quality?

Command Access electronic access control components deliver professional-grade reliability with specialized compatibility for major lock manufacturers. This field installable kit provides seamless integration with existing Schlage mortise lock systems while maintaining fire door compliance where required. Engineered for demanding commercial applications where dependable exit monitoring is essential.

Manufacturer Resources

Command Access Catalog

Product Specs

Product Group:
Electronic Access Controls
Series:
SCHREXKIT-ML Switch kits
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Parts and Accessories
Subcategory:
Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Electronic Access Controls
Department:
Door Hardware

Command Access SCHREXKIT-ML – Frequently Asked Questions

1) Will the Command Access SCHREXKIT-ML work on a Schlage L9070 or other L909x mortise lock?
The SCHREXKIT-ML request to exit switch kit is built for Schlage L9000 series mortise locks, and it also covers the L909x series locks. If the mortise lock in the door is an L9000 family body, the kit is the right part. It is not a kit for cylindrical locks or for other manufacturers' mortise bodies.
2) Can a REX switch be added to an existing Schlage L9000 mortise lock without replacing the lock?
That is the point of the SCHREXKIT-ML. It is a field installable kit with a drop-in design, so a locksmith retrofits the request to exit switch into the existing L9000 lock body rather than buying an electrified lock. No lock replacement and no extensive modification to the door or frame.
3) What does a request to exit switch in a mortise lock actually do for my access control panel?
It tells the panel someone is leaving. When a person inside the secured area operates the lever, the SCHREXKIT-ML switch sends a signal to the control panel that the door is about to be opened from the egress side, so the panel treats the opening as an authorized exit instead of a forced door or door-held alarm.
4) What comes in the Command Access SCHREXKIT-ML kit, and do I need to order anything else?
The kit includes the REX bracket, the REX sticker, a strain relief (40243), the fire door fuse, and a foam pad (40495). That is the switch hardware side complete. What it does not include is the wire path into the door: you still need a door cord or electric hinge or power transfer to get the switch leads from the lock body across to the frame, plus whatever cable the panel input requires.
5) What is the difference between a REX switch kit inside a Schlage L9000 mortise lock and a DynaLock 6451 exit sensor bar?
Both generate a request to exit signal, but they sit in different places on the opening. The Command Access SCHREXKIT-ML is a field installable request to exit switch kit that drops into Schlage L9000 and L909x series mortise locks, so the exit signal comes from the lock itself when the inside lever is turned. The DynaLock 6451-36 is an exit sensor bar for a 36 inch door, mounted on the door face rather than inside the lock case. Choose the SCHREXKIT-ML when the opening already has an L9000 mortise lock and you want the signal from the existing hardware; choose a sensor bar when the exit device is what the person touches on the way out.
6) Can an RCI 9500/9501 mortise pin transfer be used instead of a Schlage mortise REX switch kit?
No, they do different jobs on the same mortise opening and are often installed together. The RCI 9500/9501 series is a mortise pin transfer rated 1.5A at 24VAC with a tamper resistant design, which carries power and signal across the hinge edge from the frame into the door. The Command Access SCHREXKIT-ML is the SPDT switch that creates the exit signal inside a Schlage L9000 mortise lock in the first place. The pin transfer moves the wires; the switch kit is what the wires connect to.
7) Is the Schlage L9000 REX kit switch SPDT or SPST, and how do I wire it to my panel?
The switch is SPDT, single pole double throw, so you get both a normally open and a normally closed contact off one common. Wire whichever transfer suits the panel input: N/O for a panel expecting a closure on egress, N/C for a supervised loop that opens on egress. Having both sides available is why one kit covers most panel input schemes without an interposing relay.
8) Can I use this REX kit on a fire rated door opening?
The SCHREXKIT-ML ships with a fire door fuse in the kit for installations on fire rated openings, so the wiring into the lock body can be run in a manner the fire door application calls for. Install the fuse component as supplied rather than omitting it on a rated opening.
9) Should I add a REX switch to the lock or use a motion sensor or exit bar above the door instead?
Two different triggers. The SCHREXKIT-ML fires only when the lever is actually operated, which is the tighter signal because it cannot be tripped by someone walking past the door. A sensor bar such as the DynaLock 6451-36 exit sensor bar, sized for a 36 inch door, triggers on touch at the bar and suits openings held by a maglock where there is no lever to switch. Use the lock-mounted kit when the opening already has an L9000 mortise lock and you want the exit signal tied to the hardware.
10) I need to get a signal through the door rather than out of the lock. Is this the right part?
No. The SCHREXKIT-ML is a switch that lives in the L9000 lock body and reports the lever being turned. To carry the circuit from the door to the frame, look at a mortise pin transfer such as the RCI 9500/9501 series, rated 1.5A at 24VAC with a tamper resistant design. The two parts do different jobs and a monitored electrified opening usually needs both.
11) Does this REX kit lock or unlock the door electrically?
It does not. The SCHREXKIT-ML is monitoring only, a switch that reports lever operation to the panel. The L9000 keeps working mechanically exactly as it did. If the opening needs to be released electrically, that calls for an electrified lock body, an electric strike, or a maglock, not this kit.
12) What should I use for exit control on a door that has no Schlage L9000 mortise lock?
The Command Access SCHREXKIT-ML is engineered specifically for Schlage L9000 and L909x series mortise locks, so on an opening with different hardware the exit function has to come from a separate device. The DynaLock 6451-36 exit sensor bar handles a 36 inch door as a door mounted exit sensor, and the Securitron SB-MXD exit delay sex bolt and the RCI 914 series delayed egress sounder with field selectable volume output up to 102dB address delayed egress openings. Match the choice to what the door already carries rather than adapting the mortise kit.
13) Does a REX switch kit for a Schlage mortise lock replace the relay board or power supply in an access control system?
No. The Command Access SCHREXKIT-ML is a single pole, double throw switch kit that reports an exit to the control panel from inside a Schlage L9000 mortise lock. The switched contacts still need somewhere to land and something to power the opening: the Locknetics RDB4 is a four output relay distribution board, and the Adams Rite 4605 regular transformer converts 115 VAC to 12/24 VAC with a 40 volt-amp output. A complete exit monitoring installation typically uses a switch kit, a relay point, and a power source, not one in place of another.
14) Is a wireless conversion kit an alternative to hardwiring a Schlage mortise REX switch?
They serve different device types. The LCN 8310-3803 is a 3V wireless conversion kit for jamb mount touchless actuators, so it applies to a push plate or wave actuator at the jamb rather than to a lock case. The Command Access SCHREXKIT-ML is a drop-in kit that installs inside a Schlage L9000 series mortise lock and includes the REX bracket, REX sticker, strain relief 40243, fire door fuse, and foam pad 40495, which is a wired exit signal from the lock. If the exit signal has to originate from turning the inside lever, the mortise switch kit is the device that does it.
15) Is the SCHREXKIT-ML rated for commercial use in a school or hospital?
It is a commercial grade component, and exit monitoring on L9000 mortise locks is exactly the application in educational buildings, healthcare facilities, government and multi-tenant properties where the panel has to distinguish an authorized exit from a forced opening.
