Professional Electrical Tap Connector for Direct Burial Applications

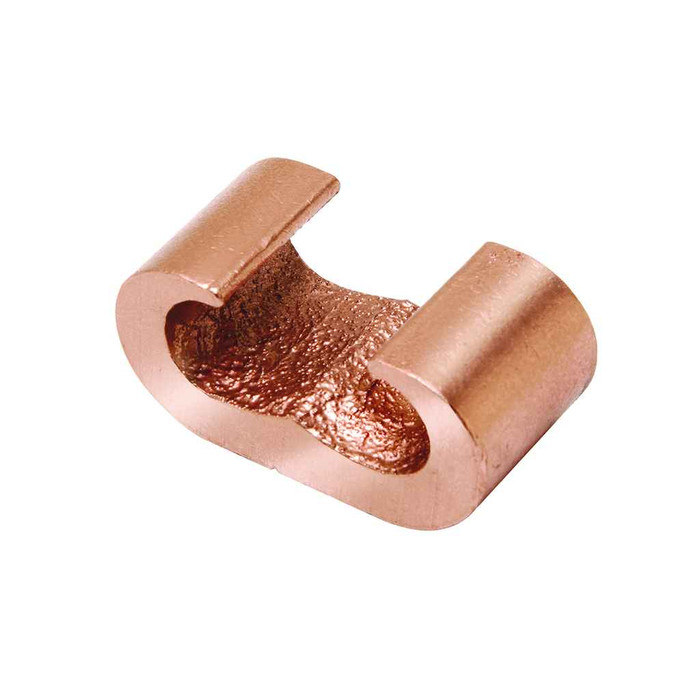

The Burndy HYTAP Compression Tap Connector delivers superior electrical connection performance for direct burial cable applications. This 3/0 AWG to 250 kcmil copper tap connector provides exceptional conductivity and reliability designed for professional electricians, electrical contractors, and utility professionals, offering the proven performance and innovation that professionals expect from America's premier electrical connection manufacturer.

Professional Features & Benefits

Electrical Performance Excellence

• 3/0 AWG to 250 kcmil Conductor Range - Accommodates both run and tap conductors in the same size range for versatile electrical connections
• Copper Construction - Superior conductivity and corrosion resistance for long-lasting electrical performance
• UL Listed Direct Burial Rating - Certified for underground electrical installations with proven safety and reliability
• Compression Connection Technology - Creates permanent, gas-tight connections that maintain electrical integrity over time

Installation & Connection Features

• Single Crimp Installation - Requires only one compression crimp for complete connection, reducing installation time
• Die Index 997 Compatibility - Designed for use with specific Burndy compression tooling for consistent results
• Direct Burial Application - Engineered specifically for underground cable installations and utility applications

Technical Specifications

Conductor Range: 3/0 AWG to 250 kcmil (both run and tap), Material: Copper, Plating: Unplated, Overall Length: 0.88 inches, Height: 2.06 inches, Die Index: 997, Crimps Required: 1, Certifications: UL Listed, UL Listed Direct Burial, CSA Approved, Standards Compliance: IEEE 837, UL467, UL468A-468B, RoHS Status: CM

Installation & Usage

1. Select appropriate Burndy compression tool with Die Index 997 for proper installation
2. Strip conductors to proper length ensuring clean, square cuts on both run and tap conductors
3. Insert run conductor fully into connector body ensuring proper seating
4. Position tap conductor in designated tap position within the connector
5. Apply single compression crimp using specified die and tool following manufacturer torque specifications
6. Inspect completed connection for proper crimp formation and conductor retention

Professional Applications

Ideal for:

• Direct Burial Cable Systems - Underground electrical distribution and utility installations requiring reliable tap connections
• Utility Power Distribution - Primary and secondary distribution systems where permanent tap connections are required
• Underground Electrical Networks - Municipal and commercial underground electrical systems requiring code-compliant connections
• Industrial Power Systems - Heavy-duty electrical installations requiring robust tap connections for power distribution
• Commercial Electrical Projects - Large-scale electrical installations requiring reliable conductor tapping solutions
• Electrical Service Connections - Service entrance and distribution panel connections requiring permanent tap solutions
• Grounding System Applications - Electrical grounding networks requiring reliable conductor connections
• Transformer Connections - Primary and secondary transformer connections requiring permanent electrical taps

Copper Construction Advantage

Burndy's choice of copper construction provides superior electrical conductivity and natural corrosion resistance essential for direct burial applications. The unplated copper finish maintains excellent electrical contact while providing the durability required for underground installations where moisture and soil conditions can challenge connection integrity.

Why Choose Burndy Quality?

With decades of electrical connection innovation, Burndy continues to set the standard for professional electrical safety and reliability. This HYTAP connector represents Burndy's commitment to UL-listed quality and compliance with industry standards including IEEE 837 and UL467/468 specifications. Trusted by electricians, electrical contractors, and utility professionals nationwide, Burndy delivers the proven performance and engineering excellence that electrical professionals depend on for critical connections.
