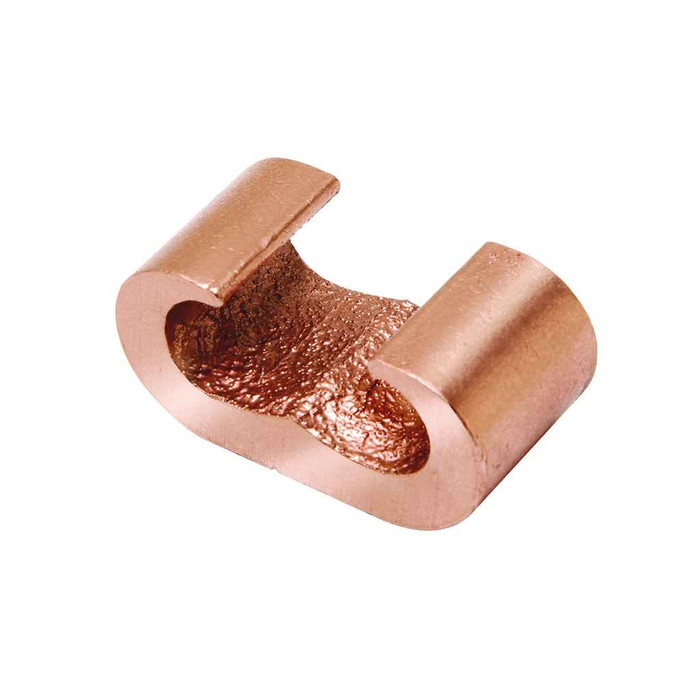

Burndy Compression Tap Connector Copper Direct Burial 7-2 AWG HYTAP

Burndy Compression Tap Connector Copper Direct Burial 7-2 AWG HYTAP

Professional Direct Burial Electrical Tap Connector

The Burndy HYTAP Compression Tap Connector delivers superior electrical connection performance for direct burial cable applications. This copper tap connector accommodates 7 AWG through 2 AWG conductors, providing exceptional conductivity and reliability designed for professional electricians, electrical contractors, and utility professionals, offering the proven performance and innovation that professionals expect from America's premier electrical connection manufacturer.

Professional Features & Benefits

Direct Burial Performance

• UL Listed Direct Burial Rating - Certified for underground electrical installations with moisture resistance and corrosion protection for long-term reliability
• Copper Construction - Superior conductivity and corrosion resistance for demanding underground electrical environments
• 7 AWG to 2 AWG Range - Accommodates both solid and stranded copper conductors for versatile electrical connection applications
• Single Crimp Installation - Efficient compression connection requiring only one crimp for secure electrical termination

Professional Installation

• Compression Connection Technology - Reliable mechanical and electrical connection through professional compression tooling
• Die Index C Specification - Precise tooling requirements for consistent professional installation results
• CSA Approved - Canadian Standards Association certification for North American electrical code compliance

Technical Specifications

Conductor Range: 7 AWG-2 AWG copper stranded (run and tap), 6 AWG-2 AWG copper solid (run and tap), 1/4 inch rod conductor compatibility, Material: Copper construction, Plating: Unplated finish, Overall Length: 0.75 inches, Height: 1.16 inches, Die Index: C, Crimps Required: 1, Certifications: UL Listed, UL Listed Direct Burial, CSA Approved, Standards Compliance: IEEE 837, UL468A-468B, IEEE 837 2014 Qualified, UL467, RoHS Status: CM compliant

Installation & Usage

1. Select appropriate compression die (Die Index C) for professional installation tooling
2. Strip conductor insulation to proper length for tap connection configuration
3. Insert run conductor through connector body ensuring full insertion depth
4. Position tap conductor in designated tap port for secure electrical contact
5. Apply compression force using calibrated tooling for single crimp connection
6. Verify proper compression and conductor retention before energizing circuit

Professional Applications

Ideal for:

• Direct Burial Cable Systems - Underground electrical distribution, service laterals, and buried cable connections
• Utility Power Distribution - Primary and secondary distribution tap connections for electrical utility applications
• Underground Service Connections - Residential and commercial underground electrical service installations
• Industrial Underground Wiring - Manufacturing facility underground power distribution and equipment connections
• Municipal Electrical Systems - Street lighting, traffic signals, and public infrastructure electrical connections
• Grounding System Connections - Equipment grounding and system grounding conductor tap connections
• Transformer Connections - Pad-mounted and underground transformer primary and secondary connections
• Cable Splicing Applications - Professional cable repair and extension in underground electrical systems

Copper Construction Advantage

Burndy's choice of copper construction provides superior electrical conductivity and natural corrosion resistance essential for direct burial applications. The unplated copper finish maintains excellent electrical contact while allowing for natural oxidation protection in underground environments, ensuring long-term electrical performance and reliability.

Why Choose Burndy Quality?

With decades of electrical connection innovation, Burndy delivers the HYTAP series with comprehensive UL listings including direct burial certification, CSA approval, and compliance with IEEE 837 standards. This commitment to professional electrical safety standards, combined with proven reliability for electricians, electrical contractors, and utility professionals, makes Burndy the trusted choice for critical underground electrical connections.
