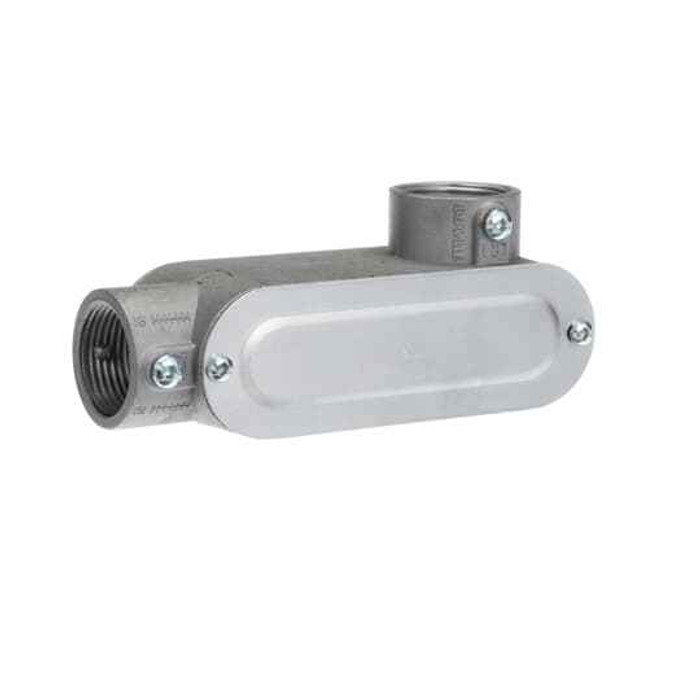

Thomas & Betts CILRL-1 Conduit Body, 1 In EMT/Rigid LL-LR, Cast Aluminum

The CILRL-1 is a 1 inch trade size conduit body. Both openings are sized for 1 inch conduit, so it drops into a 1 inch run without reducers or adapters.

Both. The CILRL-1 is built for 1 inch EMT and rigid conduit, which is why a single body works on an EMT branch indoors and on a rigid or IMC run elsewhere on the same job.

It's a combination body that covers both the LL and LR configurations. An LL turns the conduit to the left of the cover opening, an LR to the right; the CILRL-1 handles either, so you only carry one part instead of stocking both hands on the truck.

Cast aluminum. That matters in two directions: it keeps weight down on long overhead runs, and aluminum should be kept away from direct contact with concrete, embedded steel, and corrosive or wet chemical environments where a cast iron or malleable body is the better call.

For a simple change of direction in a 1 inch run with an access point for pulling, the CILRL-1 combination LL-LR body is the normal choice: it makes the turn and gives you a removable cover opening to pull through. A pull box or junction box is what you move to when you need multiple conduit entries, splices, or conductor volume the body cannot hold. If the turn needs the access opening facing back along the run rather than to one side, that is a C or LB body, not an LL/LR.

Order it as Thomas & Betts CILRL-1. That number carries the 1 inch EMT/rigid combination LL-LR cast aluminum body, and it's the designation to quote when matching bodies already installed on a facility's conduit runs.
