Spec Sheet
Product Specs
- Hub Size:
- 1-1/2 Inch
- Outer Dimensions Inches:
- 9.37x6.75x6.5
- Outer Quantity:
- 4
- Product Group:
- Conduit & Raceway
- Standards:
- CSA
- Unspsc:
- 39131708 Electrical conduit fitting body
- Weight Uom:
- 152.5 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Conduit Bodies & Covers
- Product Type:
- Rigid Conduit
- Product Details:
- Rigid Conduit
- Product Material:
- Cast Aluminum
Thomas & Betts CILRL-1 1/2 – Frequently Asked Questions
1) Is the Thomas & Betts CILRL-1 1/2 conduit body metal or plastic?
Cast aluminum. That makes it a match for aluminum or galvanized rigid conduit runs where you want a non-ferrous body, and it keeps the weight down compared with cast iron: the CILRL-1 1/2 runs 152.5 lbs per 100 pieces.
2) What does an LR conduit body do, and when would I use one instead of an LB or LL?
An LR body turns a rigid conduit run 90 degrees to the right while giving you a removable cover to pull conductors through. Use an LR when the run needs to break right as you face the body; an LL breaks left and an LB turns back into the wall. The CILRL-1 1/2 is the 1-1/2 inch LR version in cast aluminum.
3) How much clearance do I need to mount the Thomas & Betts CILRL-1 1/2?

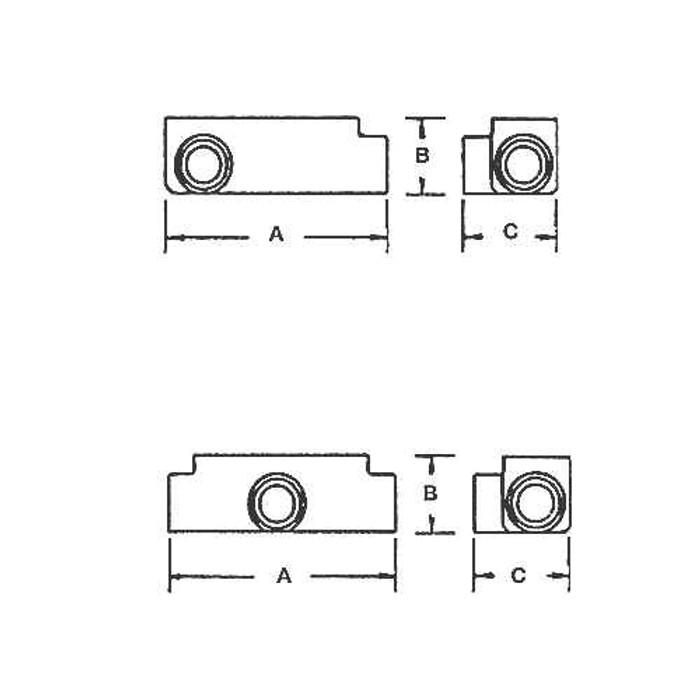

Plan around 9.37 x 6.75 x 6.5 inches of space. That's the outer envelope for the body, so in a tight chase or against a beam, check the pocket before you thread it on, and leave room to pull the cover for wire pulling later.
4) Is the Thomas & Betts CILRL-1 1/2 sold individually or in a carton?
The standard carton holds 4 pieces. If you're stocking a job that needs several right-hand pulls on 1-1/2 inch rigid, order in multiples of four to match full cartons.
5) What's the exact part number to spec for the Thomas & Betts 1-1/2 inch LR conduit body?
CILRL-1 1/2 is the manufacturer part number, from Thomas & Betts. That is the number to put on a submittal or purchase order; the cast aluminum, 1-1/2 inch hub configuration is tied to that designation.
