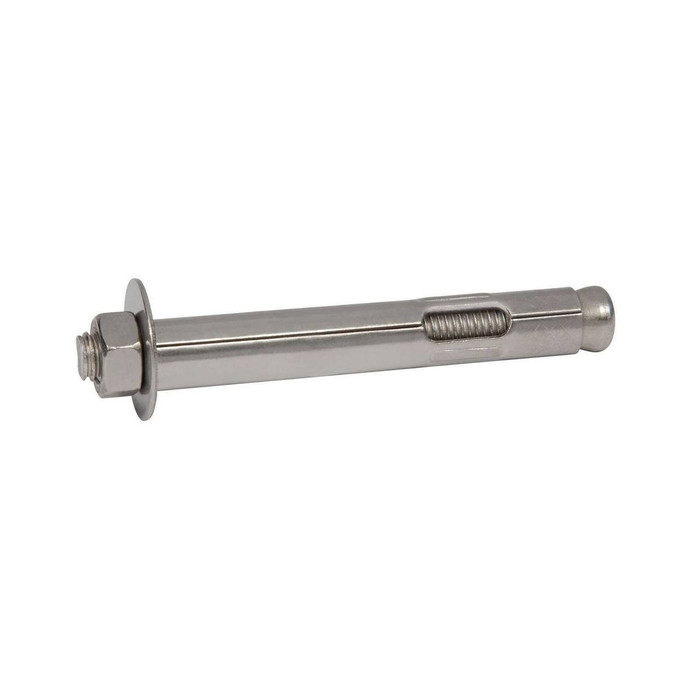

CONFAST SAHS 304 Stainless Steel Hex Sleeve Anchor for Concrete Applications
The CONFAST SAHS 304 Stainless Steel Hex Sleeve Anchor is a heavy-duty concrete anchor built from corrosion-resistant 304 stainless steel for dependable holding power in masonry and concrete substrates. Sizes range from 1/4" x 1-3/8" up to 3/4" x 6-1/4", with a 5/16" x 1-1/2" option also available, giving installers flexibility across a wide range of anchoring depths and applications. Each anchor is sold by the box, with box quantity shown for each individual size, making it easy to order the correct amount for commercial and industrial projects.
Key Features
- Wide Size Range: Available from 1/4" x 1-3/8" up to 3/4" x 6-1/4", including a 5/16" x 1-1/2" option, to suit a variety of anchoring depths and load requirements.
- 304 Stainless Steel Construction: Corrosion-resistant 304 stainless steel body provides long-term durability in demanding indoor and outdoor environments.
- Hex Head Style: Hex head design allows for easy installation and tightening with standard wrenches or sockets.
- Sold by the Box: Packaged and sold by the box, with box quantity shown for each individual size, simplifying bulk ordering for larger projects.
- Concrete Anchor Design: Hex sleeve anchor style engineered for secure fastening into concrete and masonry substrates.
Technical Specifications
- Product Type: Concrete Anchor
- Country of Origin: China
- Product Size: 1/4" x 1-3/8"
- Product Size: 5/16" x 2-1/2"
- Product Size: 3/8" x 1-7/8"
- Product Size: 3/8" x 3"
- Product Size: 3/8" x 3-1/2"
- Product Size: 3/8" x 4"
- Product Size: 3/8" x 5"
- Product Size: 1/2" x 2-1/4"
- Product Size: 1/2" x 3"
- Product Size: 1/2" x 4"
- Product Size: 1/2" x 6"
- Product Size: 5/8" x 2-1/4"
- Product Size: 5/8" x 3"
- Product Size: 5/8" x 4-1/4"
- Product Size: 5/8" x 6"
- Product Size: 3/4" x 2-1/2"
- Product Size: 3/4" x 4-1/4"
- Product Size: 3/4" x 5-1/2"
- Product Size: 3/4" x 6-1/4"
Typical Applications
- Commercial Construction Projects
- Concrete and Masonry Installations
- Industrial Facility Construction
- Structural Steel Framing
- Outdoor and Exterior Fastening Applications
- General Contractor and Builder Use
Why CONFAST SAHS?
CONFAST anchors are manufactured from 304 stainless steel for dependable corrosion resistance and long-term holding strength in demanding construction environments. With sizes sold by the box for straightforward bulk ordering, CONFAST hex sleeve anchors deliver reliable, professional-grade performance for concrete and masonry anchoring applications.
Specifications
- Max. Torque: 8 - 12 Ft./lbs.
Specifications by Size
| Size | Pull-Out (lbs.) | Shear (lbs.) | Bit Size | Box Qty | Max. Fixture Thickness | Min. Edge Distance | Min. Embedment | Min. Fixture Hole Ø (In Place) | Min. Spacing | Thread Type | Wrench Size | UPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" x 1-3/8" (Box of 100) | — | — | — | — | — | — | — | — | — | — | — | — |
| 5/16" x 1-1/2" (Box of 100) | 903 | 1770 | 5/16" | 100 | 1/2" | 1-9/16" | 1" | 3/8" | — | 1/4" - 20 | 1/2" | 820274001738 |
| 5/16" x 2-1/2" (Box of 100) | 903 | 1770 | 5/16" | 100 | 1-1/2" | 1-9/16" | 1" | 3/8" | — | 1/4" - 20 | 1/2" | 820274001745 |
| 3/8" x 1-7/8" (Box of 50) | 1406 | 3082 | 3/8" | 50 | 5/8" | 1-7/8" | 1-1/4" | 1/2" | 3-3/4" | 5/16" - 18 | 9/16" | 820274001707 |
| 3/8" x 3" (Box of 50) | 1406 | 3082 | 3/8" | 50 | 1-3/4" | 1-7/8" | 1-1/4" | 1/2" | 3-3/4" | 5/16" - 18 | 9/16" | 820274001714 |
| 3/8" x 3-1/2" (Box of 50) | — | — | — | — | — | — | — | — | — | — | — | — |
| 3/8" x 4" (Box of 25) | 1406 | 3082 | 3/8" | 50 | 2-3/4" | 1-7/8" | 1-1/4" | 1/2" | 3-3/4" | 5/16" - 18 | 9/16" | 820274001721 |
| 3/8" x 5" (Box of 50) | — | — | — | — | — | — | — | — | — | — | — | — |
| 1/2" x 2-1/4" (Box of 25) | 1676 | 3645 | 1/2" | 25 | 3/4" | 2-1/2" | 1-1/2" | 5/8" | 5" | 3/8" - 16 | 3/4" | 820274001622 |
| 1/2" x 3" (Box of 25) | 1676 | 3645 | 1/2" | 25 | 1-1/2" | 2-1/2" | 1-1/2" | 5/8" | 5" | 3/8" - 16 | 3/4" | 820274001639 |
| 1/2" x 4" (Box of 25) | 1676 | 3645 | 1/2" | 25 | 2-1/2" | 2-1/2" | 1-1/2" | 5/8" | 5" | 3/8" - 16 | 3/4" | 820274001646 |
| 1/2" x 6" (Box of 15) | 1676 | 3645 | 1/2" | 25 | 4-1/2" | 2-1/2" | 1-1/2" | 5/8" | 5" | 3/8" - 16 | 3/4" | 820274001653 |
| 5/8" x 2-1/4" (Box of 10) | 3652 | 4218 | 5/8" | 10 | 1/4" | 3-1/8" | 2" | 3/4" | — | 1/2" - 13 | 15/16" | 820274001752 |
| 5/8" x 3" (Box of 10) | 3652 | 4218 | 5/8" | 10 | 1" | 3-1/8" | 2" | 3/4" | — | 1/2" - 13 | 15/16" | 820274001769 |
| 5/8" x 4-1/4" (Box of 10) | 3652 | 4218 | 5/8" | 10 | 2-1/4" | 3-1/8" | 2" | 3/4" | — | 1/2" - 13 | 15/16" | 820274001776 |
| 5/8" x 6" (Box of 10) | 3652 | 4218 | 5/8" | 10 | 4" | 3-1/8" | 2" | 3/4" | — | 1/2" - 13 | 15/16" | 820274001783 |
| 3/4" x 2-1/2" (Box of 10) | 3783 | 7059 | 3/4" | 10 | 1/4" | 3-3/4" | 2-1/4" | 7/8" | 7-1/2" | — | 1-1/8" | 820274001660 |
| 3/4" x 4-1/4" (Box of 10) | 3783 | 7059 | 3/4" | 10 | 2" | 3-3/4" | 2-1/4" | 7/8" | 7-1/2" | — | 1-1/8" | 820274001677 |
| 3/4" x 5-1/2" (Box of 10) | 3783 | 7059 | 3/4" | 10 | 3-1/4" | 3-3/4" | 2-1/4" | 7/8" | 7-1/2" | — | 1-1/8" | 820274001684 |
| 3/4" x 6-1/4" (Box of 10) | 3783 | 7059 | 3/4" | 10 | 4" | 3-3/4" | 2-1/4" | 7/8" | 7-1/2" | — | 1-1/8" | 820274001691 |
Manufacturer Resources
Product Specs
- Product Type:
- Sleeve Anchor
- Product Brand:
- CONFAST
- Product Material:
- 304 Stainless Steel
- Country of Origin:
- China
- Department:
- Fasteners
- Product Group:
- Concrete Anchors
- Product Subgroup:
- Concrete Anchors
- Location Rating:
- Wet
- Product Attribute:
- Male (threaded stud)
CONFAST SAHS58214 – Frequently Asked Questions
1) Will a 304 stainless sleeve anchor hold up outdoors or in a wet environment?
The CONFAST SAHS hex sleeve anchor is made entirely from 304 stainless steel, which is the reason to pick it over a zinc-plated carbon steel sleeve anchor on exterior work, parking structures, pool decks, dock or rooftop equipment, and any other opening exposed to weather. On dry interior anchoring a plated anchor does the same mechanical job, so the stainless version earns its place where corrosion is the failure mode.
2) What diameters and lengths do CONFAST stainless hex sleeve anchors come in?
Five diameters: 1/4, 5/16, 3/8, 1/2, 5/8 and 3/4 inch. Lengths run 1/4" x 1-3/8"; 5/16" x 1-1/2" and 2-1/2"; 3/8" x 1-7/8", 3", 3-1/2", 4" and 5"; 1/2" x 2-1/4", 3", 4" and 6"; 5/8" x 2-1/4", 3", 4-1/4" and 6"; 3/4" x 2-1/2", 4-1/4", 5-1/2" and 6-1/4". Pick the length so the anchor passes through your fixture and still buries enough sleeve in the concrete.
3) What size hole do I drill for a sleeve anchor?
Sleeve anchors are drilled at the same nominal size as the anchor diameter, so a 1/2 inch CONFAST SAHS goes into a 1/2 inch carbide hole in concrete, block or brick. Drill the hole deeper than the embedment so cuttings have somewhere to go, blow it clean, then drive the anchor through the fixture and tighten the hex nut to expand the sleeve.
4) How many anchors come in a box?
Box count varies by size. The 1/4" x 1-3/8" and both 5/16" sizes come 100 per box; the 3/8" sizes are 50 per box except 3/8" x 4", which is 25; the 1/2" sizes are 25 per box except the 6 inch, which is 15; all 5/8" and 3/4" sizes are 10 per box. Each size is sold as a full box, not loose.
5) Do I need a special tool to install a hex head sleeve anchor?
No. The head is a hex nut over a washer, so a standard wrench, ratchet and socket, or an impact with a socket sets it. The only other tool is a hammer drill with a carbide bit matched to the anchor diameter. Nothing proprietary is required.
6) Can I use these to anchor structural steel base plates and equipment to a slab?
Yes, that is a typical use for the CONFAST SAHS. Structural steel framing, industrial equipment mounting, and general commercial fastening to concrete and masonry are the listed applications. Size the diameter to the hole in the base plate and the length to the plate thickness plus your embedment, then work up through the 1/2, 5/8 and 3/4 inch diameters as the load increases.
7) Sleeve anchor or wedge anchor for concrete?
A sleeve anchor like the CONFAST SAHS expands along a longer sleeve, which spreads the load and lets it work in hollow block and brick as well as solid concrete. A wedge anchor bites at a single point near the bottom of the hole and belongs in solid concrete only, where it generally carries more load for the same diameter. For mixed masonry substrates, or where you want one anchor type across block walls and slabs, the sleeve anchor is the safer specification.
8) Which length do I need if I'm bolting through a thick fixture?
Add your fixture thickness to the embedment you want in the concrete and buy the next length up. That is why the same diameter is offered in several lengths, for example 1/2 inch in 2-1/4", 3", 4" and 6", and 3/4 inch in 2-1/2", 4-1/4", 5-1/2" and 6-1/4". A long anchor through a thin fixture just wastes hole depth; a short one through a thick fixture never expands inside the concrete.
9) Are the nut and washer included, or do I order those separately?
Nothing extra to order. The CONFAST stainless hex sleeve anchor ships as a complete assembly, sleeve, expander, washer and hex nut, all in 304 stainless so you do not create a dissimilar-metal problem at the head. One part number per size gets you the whole fastener.
