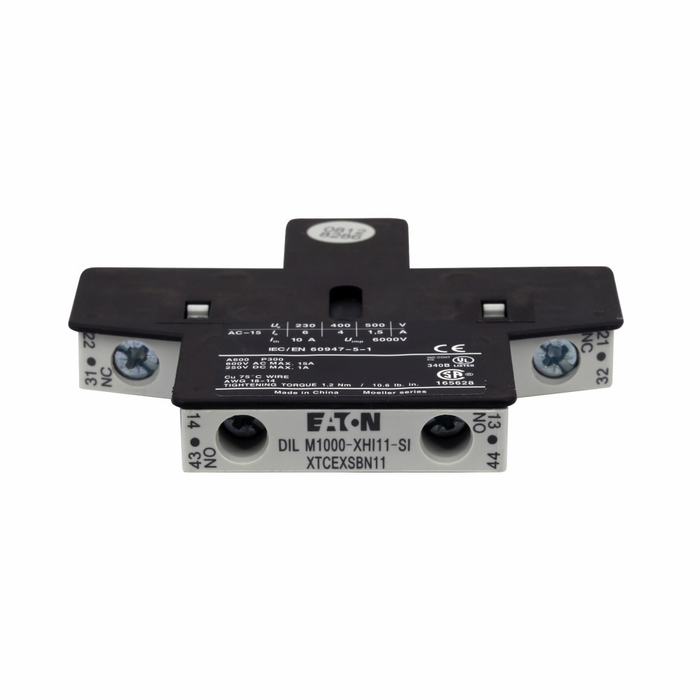

Eaton B-G Frame Side-Mount Auxiliary Contact, 1NO1NC Sequential

Eaton B-G Frame Side-Mount Auxiliary Contact, 1NO1NC Sequential

(No reviews yet) Write a Review

Model: XTCEXSBN11

In Stock (leaves warehouse same day if ordered before 3pm ET)

$82.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton B-G Frame Side-Mount Auxiliary Contact, 1NO1NC Sequential

The Eaton B-G Frame Side-Mount Auxiliary Contact is a sequential 1NO1NC side auxiliary contact accessory engineered for Eaton contactors in the B through G frame range. Measuring 4.5 in wide, 3.5 in high, and 1 in deep, this renewal part mounts directly to the side of the contactor to add supplementary switching signals for control and monitoring circuits. It is CE Marked and certified to IEC 60947, supporting compliant motor control and protection applications.

Key Features

  • Compact Footprint: 4.5 in wide x 3.5 in high x 1 in deep for side-mounted installation on compatible contactors.
  • Contact Configuration: Sequential 1NO1NC auxiliary contact arrangement for status signaling and interlock circuits.
  • Frame Compatibility: Designed for Eaton B, C, D, E, F, and G frame contactor families as a side auxiliary accessory.
  • Renewal Parts/Accessory Type: Purpose-built accessory item for maintaining and upgrading existing Eaton contactor installations.
  • Certified Design: Built to IEC 60947 requirements and CE Marked for compliance in motor control and protection systems.

Certifications & Compliance

  • CE Marked
  • IEC 60947 Certified

Technical Specifications

  • Product Width: 4.5 in
  • Product Length/Depth: 1 in
  • Product Height: 3.5 in
  • Type: Renewal Parts/Accessories
  • Compliances: CE Marked
  • Certifications: IEC 60947
  • Warranty: Not Applicable

Typical Applications

  • Motor Control Centers and Starter Panels
  • Contactor Status Signaling and Interlocking
  • Renewal and Retrofit of Existing Eaton Contactors
  • Industrial Motor Control and Protection Systems
  • Commercial and Industrial Electrical Maintenance

Why Eaton?

Eaton auxiliary contact accessories are built to IEC 60947 standards and CE Marked to support reliable, code-compliant performance in demanding motor control applications. As a renewal part designed specifically for Eaton B through G frame contactors, this accessory helps maintain original equipment performance and extend the service life of existing installations.

Manufacturer Resources

Product Specs

Product Width:
4.5 in
Warranty:
Not Applicable
Product Length/Depth:
1 in
Compliances:
CE Marked
Product Height:
3.5 in
Product Type:
Contactor Accessory
Certifications:
IEC 60947
Department:
Electrical
Configuration:
1NO1NC
Listing:
CE Marked
Standards:
IEC 60947
Product Group:
Wiring Devices
Product Subgroup:
Motor Starters & Contactors

Eaton XTCEXSBN11 – Frequently Asked Questions

1) Which Eaton contactors does the XTCEXSBN11 side auxiliary contact mount to?
The XTCEXSBN11 is built for Eaton contactors in the B through G frame range (B, C, D, E, F and G frames). It clips to the side of the contactor body rather than the top, so it adds auxiliary contacts without taking up the front mounting position.
2) What contact arrangement do I get with the Eaton XTCEXSBN11 auxiliary contact?
One normally open and one normally closed contact, sequential action (1NO1NC). That gives you a run-status signal off the NO contact and an interlock or fault-permissive off the NC contact from the same block.
3) Can I add auxiliary contacts to an existing Eaton contactor in the field instead of replacing it?
That is exactly what the XTCEXSBN11 is for. It is a renewal part, so if a running MCC bucket needs an extra status signal or an interlock that the base contactor does not have, you add the side block to the contactor already in the panel rather than swapping the starter.
4) How much room do I need in the enclosure for an Eaton B-G frame side auxiliary contact?
Allow for a block measuring 4.5 x 3.5 x 1 inches (width x height x depth). Because it mounts on the side of the contactor, the 1 inch dimension is what eats into your side clearance in the panel, so check the gap between contactors in a tight starter section before you order.
5) Does this Eaton auxiliary contact meet IEC standards for a CE-marked control panel?
It is certified to IEC 60947 and CE Marked, which is what a panel builder needs for an export or CE-compliant motor control assembly.
6) Should I use a side-mount or a front-mount auxiliary contact block on my Eaton starter?
Side-mount, like the XTCEXSBN11, is the choice when the front position on the contactor is already taken by a timer, an interlock or another auxiliary block, or when you want to keep the front face clear. Front-mount blocks are simpler when the face is free. The tradeoff with side mounting is lateral space: this block is 1 inch deep on the side of the contactor.
7) What is the exact part number to order for the Eaton B-G frame 1NO1NC side auxiliary contact?
Order Eaton XTCEXSBN11. The N11 in the suffix lines up with the 1NO1NC contact arrangement, and it is the side-mount version for B through G frame contactors.
