Corbin Russwin 1070 Grade 1 Se...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$139.43
$86.57

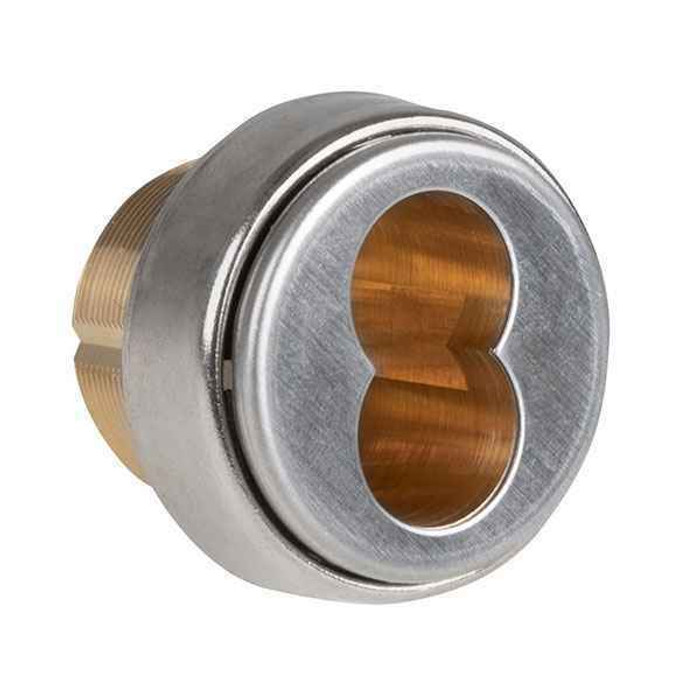

Corbin Russwin 1070 Series 1-1/4" 6-Pin Mortise Housing, A05 Adams Rite 4070 Cam

Corbin Russwin 1070 Grade 1 Series 1-1/4" 6-Pin Mortise Housing, A05 Adams Rite 4070 Cam

(No reviews yet) Write a Review

Model: CR1070-114-A05-6-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$139.43
$86.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 114-A05 1-1/4" 6-Pin IC Mortise Cylinder Housing with Adams Rite 4070 Cam

Interchangeable Core Mortise Housing for Versatile Commercial Keying Systems

The Corbin Russwin CR1070 Series 114-A05 is a 1-1/4" (32mm) interchangeable core (IC) mortise cylinder housing designed for use with all mortise locks and DL3000 deadlocks. This housing-only unit accepts 6-pin interchangeable cores and is configured with the A05 Adams Rite® 4070 cam, making it compatible with Adams Rite 4070 series mortise locks. As a conventional mortise cylinder classification, it is non-handed and suited for commercial applications where rekeying convenience and system-wide key control are essential priorities.

Professional Features & Benefits

  • Cylinder Length: 1-1/4" (32mm) housing length fits standard mortise lock preparations for precise, secure installation in commercial door hardware.
  • Adams Rite 4070 Cam Compatibility: Factory-configured A05 Adams Rite® 4070 cam provides direct compatibility with Adams Rite 4070 series mortise locks without additional modification.
  • Interchangeable Core Design: Accepts standard 6-pin interchangeable cores, enabling rekeying by non-technical personnel without removing hardware from the door—saving significant time and labor costs over the life of a building.
  • Broad Core Compatibility: Compatible with Corbin Russwin cores available in 6-pin (standard), 7-pin, security, and Pyramid configurations for flexible keying system integration.
  • Non-Handed Configuration: Universal non-handed design simplifies ordering and installation across varied door applications without handing-specific inventory requirements.
  • Wide Application Range: Suitable for all mortise locks and DL3000 deadlocks, supporting comprehensive deployment across office buildings, hotels, schools, hospitals, and universities.
  • Concealed Key Control (CKC): Corbin Russwin's Concealed Key Control (CKC) is available for all compatible cores, providing enhanced key management and security accountability.
  • Construction Keying Support: Compatible with Corbin Russwin temporary construction cores and special construction master keying for enhanced security during building construction phases.

Technical Specifications

  • Series: CR1070
  • Product Group: Parts and Accessories
  • Product Subgroup: Cylinders
  • Product Type: Cylinders
  • Keys Included: 2
  • Commercial/Residential: Commercial
  • Subcategory: Cylinders
  • Application: All Mortise Locks and DL3000 Deadlocks
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Function: A05 Adams Rite 4070 Cam
  • Door Hand Direction: Non-Handed
  • Cylinder Classification: Conventional Mortise
  • Cylinder Length Specification: 1-1/4"
  • Product Category: Parts and Accessories
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Hotels and Hospitality Properties
  • Educational Facilities and Universities
  • Healthcare Institutions and Hospitals
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Mixed-Use Properties
  • Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin CR1070 Series mortise cylinder housings are engineered for commercial-grade performance, offering interchangeable core convenience that allows rekeying without removing hardware from the door—reducing labor costs and downtime across large keying systems. The conventional mortise cylinder classification and non-handed design ensure broad compatibility with all mortise locks and DL3000 deadlocks. With support for 6-pin, 7-pin, security, and Pyramid core options, as well as Concealed Key Control (CKC) availability, Corbin Russwin delivers the flexibility and security accountability demanded by professional door hardware applications.

Manufacturer Resources

Key Systems Catalog

Product Specs

Series:
CR1070
Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Cylinders
Keys Included:
2
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Application:
All Mortise Locks and DL3000 Deadlocks
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Function:
A05 Adams Rite 4070 Cam
Door Hand Direction:
Non-Handed
Cylinder Classification:
Conventional Mortise
Cylinder Length Specification:
1-1/4"
Product Category:
Parts and Accessories
Department:
Door Hardware

Corbin Russwin CR1070-114-A05-6-626 – Frequently Asked Questions

1) Can I use a 7-pin or high-security core in this Corbin Russwin IC housing?
Yes. The housing takes 6-pin cores as standard and is listed as compatible with Corbin Russwin 7-pin, security and Pyramid cores, so it can be brought into an existing Corbin Russwin master key system at whatever level the rest of the building runs. Concealed Key Control is available on the compatible cores, and temporary construction cores plus special construction master keying are supported for the build phase.
2) Is a rim cylinder the same thing as this mortise housing, and can I swap one for the other?
No. This is a threaded mortise cylinder housing that screws into a mortise lock case and turns a cam, here the Adams Rite 4070 cam. A rim cylinder mounts through the door from the inside with screws and drives a tailpiece instead, like the Schlage 20-021 with a vertical tailpiece cam or the 20-022 with a horizontal one. The preps are different and they are not interchangeable. Confirm whether your device takes a cam or a tailpiece before ordering.
3) Is a Detex MC65 mortise cylinder a drop-in replacement for a Corbin Russwin 114-A05?
No. Both are mortise cylinders, but the Detex MC65 is a 1-1/8 inch 6-pin commercial mortise cylinder in the Schlage C keyway, while the Corbin Russwin 1070 114-A05 is a 1-1/4 inch housing that accepts a Corbin Russwin 6-pin interchangeable core and carries the A05 Adams Rite 4070 cam. The length differs and the MC65 is keyed to a Schlage C system, so it will not fall into a Corbin Russwin IC key system or supply the 4070 cam.
4) Do I need to order a left-hand or right-hand version of this mortise housing?
No handing to specify. The 114-A05 is non-handed, so one part number covers left and right swings and inswing or outswing openings. That keeps a property manager's spare-parts shelf down to one item across a building.
5) Why choose an interchangeable core mortise cylinder instead of a conventional keyed cylinder?
With an IC housing, rekeying is done by pulling the core with a control key; the housing stays in the lock and the lock stays in the door. Maintenance staff can do it without a locksmith, which is the reason schools, hospitals, hotels and offices standardize on it. A fixed conventional cylinder has to come out of the lock and be repinned instead. The tradeoff is the two-part purchase: housing plus core.
6) Can this Corbin Russwin housing be used on a DL3000 deadlock?
Yes, the CR1070 housing is listed for all mortise locks and DL3000 deadlocks. Keep the cam in mind though: this version carries the A05 Adams Rite 4070 cam, so match the cam to the lock case you are putting it in.
7) What is the interchangeable core equivalent from another brand if the building is standardized on BEST rather than Corbin Russwin?
The Corbin Russwin 1070 114-A05 housing takes Corbin Russwin 6-pin interchangeable cores. On a BEST-standardized system the core side is served by the BEST 1CB Peaks 150 Series interchangeable core cylinder, or the BEST 1CDF drill resistant patented interchangeable core, a 7-pin brass 150 Series core; a 5-pin option is the BEST 1C Series standard core. Those are cores rather than mortise housings, so a BEST mortise housing is still needed to carry the Adams Rite 4070 cam that the 114-A05 provides.
8) For an Adams Rite MS1847 narrow stile door, is the 114-A05 housing the right cylinder part?
The Corbin Russwin 1070 114-A05 is cammed as A05 for Adams Rite 4070 series mortise locks. For MS1847 deadlock and deadlatch openings the cylinder is carried by a pull: the Adams Rite 4024 cylinder pull mounts with a trim plate, and the 4025 is a five pin tumbler cylinder pull using through-screws, both for use with the MS1847. On a wood door the 4026 five pin tumbler cylinder pull is for the Adams Rite 5017 wood door deadlock and deadlatch.
9) Will a Medeco retrofit cylinder work as a substitute for the Corbin Russwin 114-A05 mortise housing?
No. The Medeco cylinders in this class are rim and retrofit formats: the 1012040 is a 6-pin lazy motion rim cylinder for Kwikset single cylinder deadbolts, the 1065244 is a 5-pin lazy motion rim type cylinder with an Emtek tailpiece, the 1075127 is a 5-pin rim type lazy motion single cylinder for handlesets and deadbolts, and the 1065140 is a 5-pin retrofit for Arrow JL interconnected locks and Emtek handlesets. All drive a tailpiece; the Corbin Russwin 1070 114-A05 drives an A05 Adams Rite 4070 cam from a 1-1/4 inch threaded mortise housing.
10) What finishes does the Corbin Russwin 114-A05 mortise housing come in?
Ten finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 630 satin stainless steel, and BSP black suede powder coat. Match the cylinder finish to the lock trim, not the door, since the collar sits against the escutcheon or rose.
11) Is this a commercial-duty cylinder housing or something for residential doors?
Strictly commercial. The CR1070 series mortise housing is catalogued for commercial use and is aimed at office buildings, hotels, schools, universities, hospitals, government buildings and multi-tenant residential where a managed key system and IC rekeying matter. For a single house door a residential deadbolt cylinder is the cheaper and simpler route.
