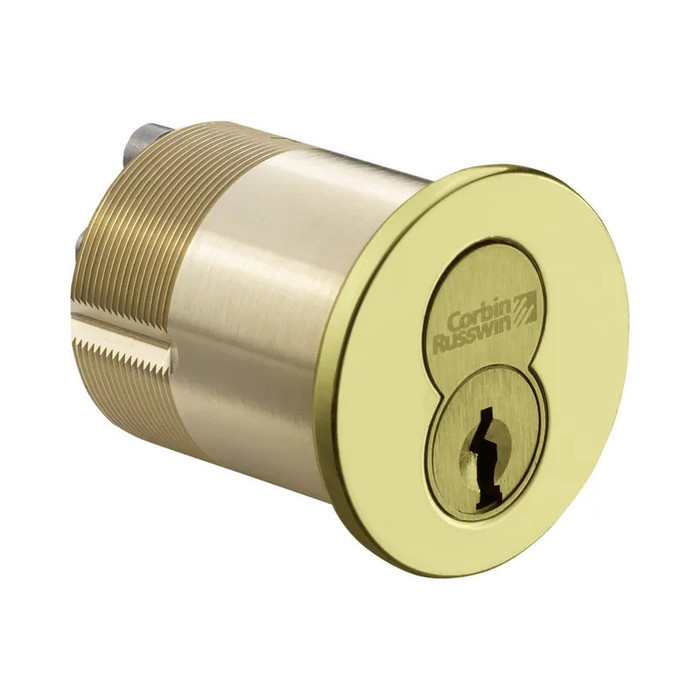

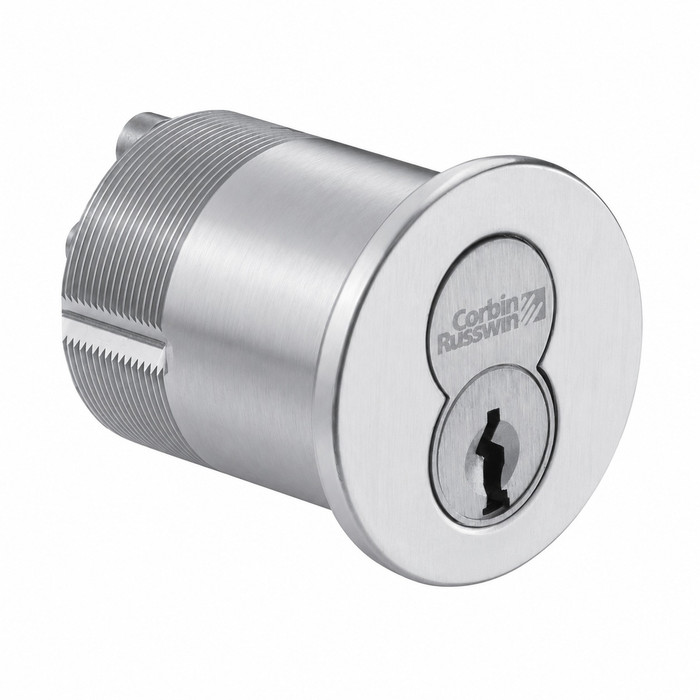

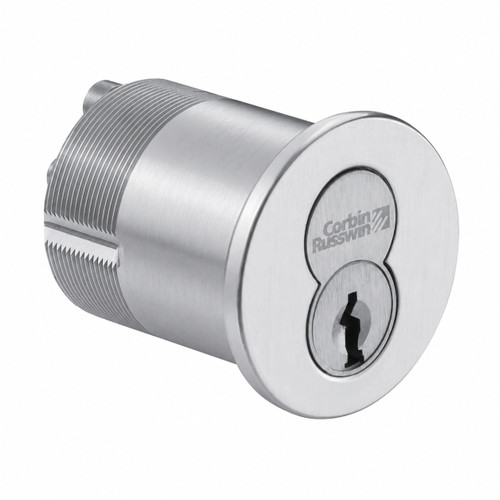

Corbin Russwin 1080 Grade 1 Series Mortise Cylinder, 1-1/2" LFIC Mortise Cylinder, 6-Pin, Schlage L9000 Mortise Locks, A02 Straight Cam

Corbin Russwin 1080 Grade 1 Series Mortise Cylinder, 1-1/2" LFIC Mortise Cylinder, 6-Pin, Schlage L9000 Mortise Locks, A02 Straight Cam

(No reviews yet) Write a Review

Model: CR1080-112-A02-6-L4-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$262.76
$155.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 112-A02 1080 Series 1-1/2" LFIC Mortise Cylinder, 6-Pin, A02 Straight Cam, Non-Handed

Professional Large Format Interchangeable Core Mortise Cylinder for Commercial Mortise Locks

The Corbin Russwin 1080 Series Mortise Cylinder is a commercial-grade Large Format Interchangeable Core (LFIC) cylinder engineered for demanding access control applications. Featuring a 1-1/2" cylinder length, 6-pin configuration, and an A02 Straight Cam, this cylinder is designed for compatibility with Schlage L9000 Mortise Locks as well as all mortise locks and DL3000 Deadlocks. As a non-handed replacement part, it integrates seamlessly into Corbin Russwin key systems, providing the right balance of security, convenience, and expansion capability for any master key system design.

Professional Features & Benefits

  • Cylinder Length: 1-1/2" cylinder length precisely sized for compatible mortise lock applications requiring this specification.
  • 6-Pin Configuration: 6-pin tumbler design delivers enhanced key combination capacity and security depth for commercial master key systems.
  • A02 Straight Cam: Equipped with an A02 Straight Cam for reliable, consistent actuation in compatible mortise lock bodies including Schlage L9000 Mortise Locks.
  • Large Format Interchangeable Core (LFIC): LFIC design allows for rapid core exchange without special tools, simplifying rekeying and key system management in large facilities.
  • Non-Handed Design: Non-handed configuration ensures universal installation flexibility without the need to specify door handing at time of order.
  • Broad Application Compatibility: Suitable for all mortise locks and DL3000 Deadlocks, providing versatile deployment across a wide range of commercial door hardware.
  • Keys Included: Comes with 2 keys, ready for immediate integration into an existing or new key system.
  • Conventional Mortise Cylinder Classification: Classified as a Conventional Mortise cylinder, ensuring straightforward compatibility verification with existing mortise lock hardware.

Technical Specifications

  • Series: 1080
  • Product Group: Parts and Accessories
  • Product Subgroup: Cylinders
  • Product Type: Cylinders
  • Keys Included: 2
  • Commercial/Residential: Commercial
  • Subcategory: Cylinders
  • Application: All Mortise Locks and DL3000 Deadlocks
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Function: A02 Straight Cam
  • Door Hand Direction: Non-Handed
  • Cylinder Classification: Conventional Mortise
  • Cylinder Length Specification: 1-1/2"
  • Product Category: Parts and Accessories
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Choose Corbin Russwin Quality?

Corbin Russwin 1080 Series cylinder products are engineered for professional-grade reliability, offering a conventional mortise classification with LFIC convenience for efficient key system management. Each cylinder ships with 2 keys and is designed for commercial applications requiring dependable, long-term performance across all mortise locks and DL3000 Deadlocks. Corbin Russwin key systems are purpose-built to turn every hardware product into a precise access control device, delivering the right balance of security, convenience, and expansion capability for every commercial installation.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
1080
Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Cylinders
Keys Included:
2
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Application:
All Mortise Locks and DL3000 Deadlocks
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Function:
A02 Straight Cam
Door Hand Direction:
Non-Handed
Cylinder Classification:
Conventional Mortise
Cylinder Length Specification:
1-1/2"
Product Category:
Parts and Accessories
Department:
Door Hardware

Corbin Russwin CR1080-112-A02-6-L4-626 – Frequently Asked Questions

1) Is the 1080 cylinder an interchangeable core or a conventional cylinder?
Both descriptions apply, and it trips people up. The 1080 is a Large Format Interchangeable Core (LFIC) mortise cylinder, so the core pulls with a control key for rekeying without removing the lock, and it is classified as a conventional mortise cylinder for housing compatibility. If your facility is standardized on small format cores, this is not the part; LFIC and SFIC cores are not interchangeable.
2) Which keyway do I order to match my existing Corbin Russwin master key system?
Order the keyway your system is already built on. The 1080 cylinder is offered across 85 keyways, including the 27, 57, 59, 67, 77, 97, 98 and 99 families, the N1 through N28 group, the H and L series, and letter keyways such as AR, BL, BR, D1, D2 and G. Pull the keyway stamp off an existing cylinder or your keying schedule and match it exactly, otherwise your master key will not operate the new core.
3) Can I use the 1080 mortise cylinder in a rim exit device?
No. It is a mortise cylinder with a threaded body and an A02 straight cam, intended for mortise lock cases and DL3000 deadlocks. A rim exit device needs a rim cylinder with a tailpiece, such as the Schlage 20-021 with a vertical tailpiece cam or the 20-022 with a horizontal tailpiece cam.
4) What is the difference between the Corbin Russwin 1080 mortise cylinder and a Schlage 20-021 rim cylinder?
They are two different cylinder formats and are not interchangeable. The Corbin Russwin 1080 112-A02 is a conventional mortise cylinder, 1-1/2 inch length, that threads into a mortise lock body and drives it with an A02 straight cam; its application is all mortise locks and DL3000 deadlocks. The Schlage 20-021 is a rim cylinder with a vertical tailpiece cam, which mounts through the door behind a rim exit device rather than threading into a mortise case. If the lock case is a mortise body, the mortise cylinder is the correct format; a rim exit device takes the rim cylinder.
5) I need a mortise cylinder but my facility is standardized on Schlage C keyway keys. What are my options?
The Corbin Russwin 1080 112-A02 is ordered in Corbin Russwin keyways such as 57A1, 59B2, 60, 70 and the N-series, and integrates into a Corbin Russwin key system. If the existing keys are Schlage C, the Detex MC65 is a 6-pin mortise cylinder in Schlage C keyway at 1-1/8 inch length. Match the keyway to the key system already in the building, and confirm the cylinder length the mortise case requires before ordering.
6) Is the Corbin Russwin 1080 LFIC cylinder the same thing as a BEST interchangeable core?
Both are interchangeable-core products but they are different pieces. The Corbin Russwin 1080 112-A02 is a complete large format interchangeable core mortise cylinder, 1-1/2 inch, 6-pin, with an A02 straight cam, supplied with 2 keys. A BEST 1C5 is a standard 5-pin cylinder core only, and the BEST 1CB is a 150 Series interchangeable core - cores that drop into an existing BEST housing rather than a mortise cylinder body with a cam. If you are replacing the whole mortise cylinder, the 1080 is the cylinder; if you are only swapping the core in an existing housing, a core is what you need.
7) My lock is a key-in-lever, not a mortise lock. What cylinder should I use instead of the 1080 mortise cylinder?
The Corbin Russwin 1080 112-A02 is a mortise cylinder whose application is all mortise locks and DL3000 deadlocks, so it does not fit a key-in-lever chassis. For a key-in-lever, the Kaba Ilco 1539 Series is a key-in-knob/lever universal cylinder, and the Falcon A23161-05 G is a key-in-lever cylinder in the RU/T Series with a 6-pin G keyway, keyed different, supplied with 2 cut keys. For a key-in-deadbolt, the Kaba Ilco 1549 Series covers that format.
8) Do I need to specify handing when ordering a Corbin Russwin 1080 mortise cylinder?
No handing to specify. The 1080 mortise cylinder is non-handed, so the same part goes into a left or right hand mortise lock. What you do have to specify is finish and keyway.
9) What is the difference between the Corbin Russwin 1080 and a Schlage full size interchangeable core cylinder?
Both are large format interchangeable core products, but they live in different key systems and different housings. The 1080 is a mortise cylinder threaded into a mortise lock case with an A02 cam, keyed in Corbin Russwin keyways. The Schlage 20-057 is an FSIC rim cylinder with a convertible tailpiece cam, and the 20-057-C is an FSIC core in the Schlage C keyway. Cores from one system do not drop into the other housing.
10) Is the Corbin Russwin 1080 cylinder suitable for a school or hospital where we rekey often?
That is what it is built for. The LFIC design lets maintenance swap cores with a control key instead of pulling lock bodies, so a rekey after a lost master takes minutes per door. It is a commercial-rated replacement part, 6-pin for deeper master key capacity, and it covers all mortise locks and DL3000 deadlocks across a campus.
11) Can I use the Corbin Russwin 1080 mortise cylinder in an Adams Rite narrow stile deadlock?
The Corbin Russwin 1080 112-A02 is specified for all mortise locks and DL3000 deadlocks with an A02 straight cam. For Adams Rite narrow stile hardware, the Adams Rite 4036 is a Grade 1 five-pin mortise cylinder in the 4036 Series with a 1/2 inch minimum door thickness, and the 4024 and 4025 cylinder pulls are built for the Adams Rite MS1847 deadlock/deadlatch. Confirm the cam and cylinder length the specific deadlock case calls for before ordering.
12) Does the 1080 cylinder come with keys, or do I have to order them separately?
Two keys ship with each cylinder. That is enough to verify operation and hand one off at turnover; if you need a key per tenant or per staff member, add keys to the order or have them cut locally to your keyway.
13) Does the finish of a mortise cylinder need to match the lock, and what finishes does the Corbin Russwin 1080 come in?
Only the visible cylinder face and ring need to match the surrounding trim. The Corbin Russwin 1080 112-A02 is offered in 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome and 626 satin chrome, so it can be matched across a mixed set of doors. By comparison, the Schlage 20-057-C full size interchangeable core is specified in 643E aged bronze.
14) I only need a non-keyed filler for an unused cylinder hole. Is the Corbin Russwin 1080 the right part?
No. The Corbin Russwin 1080 112-A02 is a functioning 6-pin keyed mortise cylinder supplied with 2 keys. For an opening that needs the appearance of a cylinder without keyed function, the BEST 12E Series dummy rim cylinder with a 1-5/32 inch diameter fills a rim cylinder hole instead.
