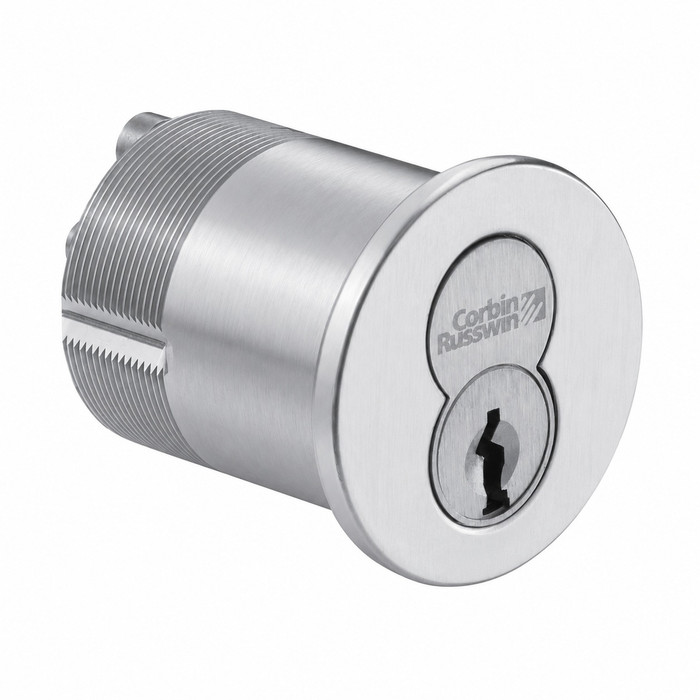

Corbin Russwin 1080 Grade 1 Series Mortise Cylinder, 1-1/4" LFIC Mortise Cylinder, 6-Pin, Schlage L9000 Mortise Locks, A02 Straight Cam

Corbin Russwin 1080 Grade 1 Series Mortise Cylinder, 1-1/4" LFIC Mortise Cylinder, 6-Pin, Schlage L9000 Mortise Locks, A02 Straight Cam

(No reviews yet) Write a Review

Model: CR1080-114-A02-6-L4-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$259.55
$153.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 114-A02 1080 Series 1-1/4" LFIC Mortise Cylinder, 6-Pin, A02 Straight Cam, Non-Handed

Professional-Grade Conventional Mortise Cylinder for Commercial Mortise Lock Applications

The Corbin Russwin 1080 Series Mortise Cylinder is a commercial-grade, 6-pin Large Format Interchangeable Core (LFIC) mortise cylinder engineered for use with all mortise locks and DL3000 deadlocks, including Schlage L9000 mortise locks. Featuring a 1-1/4" cylinder length and an A02 Straight Cam configuration, this non-handed cylinder integrates seamlessly into professionally designed master key systems. Corbin Russwin's 1080 Series offers the right balance of security, convenience, and expansion capability for every commercial keying application.

Professional Features & Benefits

  • Cylinder Length: 1-1/4" (32mm/38mm) cylinder length provides precise fitment for standard commercial mortise lock preparations.
  • A02 Straight Cam Configuration: The A02 Straight Cam design ensures reliable, consistent actuation compatible with Schlage L9000 mortise locks and a wide range of mortise hardware.
  • 6-Pin Cylinder Mechanism: Six-pin tumbler construction delivers enhanced pick resistance and expanded key change capability for robust master key system design.
  • Large Format Interchangeable Core (LFIC): LFIC mortise cylinder classification allows for rapid core exchange without removing the lock from the door, reducing rekeying time and labor costs.
  • Non-Handed Design: Universal, non-handed configuration simplifies ordering and installation across mixed-hand door openings throughout a facility.
  • Broad Lock Compatibility: Designed for use with all mortise locks and DL3000 deadlocks, providing versatile deployment across a wide range of commercial hardware platforms.
  • Keys Included: Comes with 2 keys, supporting immediate commissioning upon installation.
  • Master Key System Integration: Engineered to function as an access control device within a properly designed and maintained master key system, serving as the “software” of a building's security infrastructure.

Technical Specifications

  • Series: 1080
  • Product Group: Parts and Accessories
  • Product Subgroup: Cylinders
  • Product Type: Cylinders
  • Keys Included: 2
  • Commercial/Residential: Commercial
  • Subcategory: Cylinders
  • Application: All Mortise Locks and DL3000 Deadlocks
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Function: A02 Straight Cam
  • Door Hand Direction: Non-Handed
  • Cylinder Classification: Conventional Mortise
  • Cylinder Length Specification: 1-1/4"
  • Product Category: Parts and Accessories
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin 1080 Series mortise cylinders are purpose-built for commercial-grade security, combining a 6-pin LFIC mechanism with a versatile A02 Straight Cam to deliver reliable performance across all mortise locks and DL3000 deadlocks. The non-handed, 1-1/4" design simplifies installation and supports scalable master key system architecture for facilities of any size. Engineered for demanding commercial applications where dependable access control and long-term key system integrity are essential.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
1080
Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Cylinders
Keys Included:
2
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Application:
All Mortise Locks and DL3000 Deadlocks
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Function:
A02 Straight Cam
Door Hand Direction:
Non-Handed
Cylinder Classification:
Conventional Mortise
Cylinder Length Specification:
1-1/4"
Product Category:
Parts and Accessories
Department:
Door Hardware

Corbin Russwin CR1080-114-A02-6-L4-626 – Frequently Asked Questions

1) What cylinder length is the Corbin Russwin 114-A02, and will it sit flush in a standard mortise lock prep?
It is a 1-1/4 inch mortise cylinder, which is the common length for standard commercial mortise lock prep on a 1-3/4 inch door with normal-thickness trim. If your escutcheon or armor front stacks thicker than standard, you would need a longer cylinder instead so the cam still reaches the lock case.
2) Is this a full interchangeable core cylinder or a fixed-pin cylinder?
The 1080 is a 6-pin large format interchangeable core mortise cylinder, so the core pulls with a control key and swaps without taking the lock off the door. Its classification is conventional mortise, meaning it threads into the standard mortise cylinder hole. That combination is what lets a facility rekey an opening in seconds instead of pulling the lock case apart.
3) Which keyway do I order so this cylinder works on my existing master key system?
Order the keyway that matches the system already in the building. The 1080 is offered across the full Corbin Russwin range, including the 27, 57, 59, 67, 77, 97, 98 and 99 families, the N1 through N28 series, the H1 through H8 and L1 through L4 groups, plus 252, 60, 70, 981, 982, 983, AR, BL, BR, D1, D2 and G. A cylinder in the wrong keyway will not accept your existing keys, so pull the keyway stamp off a current key or your keying schedule before you pick.
4) Can I use this Corbin Russwin mortise cylinder in an exit device or a rim application?
No. This is a threaded mortise cylinder with a straight cam, for mortise lock cases and DL3000 deadlocks. Rim applications need a rim cylinder with a tailpiece, such as the Schlage 20-021 with a vertical tailpiece cam or the 20-022 with a horizontal one. For a rim opening on an interchangeable core system, the Schlage 20-057 is a 6-pin FSIC rim cylinder with a convertible tailpiece.
5) I need a 6-pin mortise cylinder but my building is keyed to Schlage C. What are my options?
The 1080 is keyed to Corbin Russwin keyways, so it will not take a Schlage C key. For a Schlage C system on a mortise opening, the Detex MC65 is a 1-1/8 inch 6-pin commercial mortise cylinder in Schlage C keyway. Note the length difference: the MC65 is 1-1/8 inch against 1-1/4 inch on the 1080, so check your cam reach before swapping.
6) What is the closest mortise cylinder to the Corbin Russwin 1080 if I need a Schlage C keyway instead of a Corbin keyway?
The Detex MC65 is a mortise cylinder with a Schlage C keyway, 1-1/8 inch, 6-pin, commercial grade. The Corbin Russwin 1080 mortise cylinder is 1-1/4 inch and is ordered in Corbin Russwin keyways such as 59A1, 60, 70 and the N-series. If the building is keyed to Schlage C, the MC65 matches that key system; if the building is on a Corbin Russwin master key system, stay with the 1080.
7) My exit device needs a rim cylinder, not a mortise cylinder. What should I order instead of the 1080?
The Corbin Russwin 1080 is a conventional mortise cylinder for all mortise locks and DL3000 deadlocks, so it will not serve a rim device. For rim applications, the Schlage 20-021 is a 6-pin rim cylinder with a vertical tailpiece cam and the Schlage 20-022 is the same 6-pin rim cylinder with a horizontal tailpiece cam; both ship with 2 keys. Match the tailpiece orientation to the device.
8) Do I have to order a left-hand and right-hand version of this mortise cylinder?
No. The 1080 mortise cylinder is non-handed, so one part number covers left and right hand openings across a building. Handing is handled by the lock case, not the cylinder.
9) Does this cylinder ship with keys, or do I need to order keys separately?
Two keys come with each 1080 cylinder. If you are running a master key system you will still need your control key to pull and set the core, and the master keys come from your keying system, not from the cylinder.
10) Can I buy this as a replacement part for an existing lock rather than a whole new lockset?
That is exactly what it is for. The 1080 is stocked as a replacement cylinder for mortise locks and DL3000 deadlocks, so a worn or compromised cylinder comes out and this goes in without changing the lock case or the door prep, provided you order the matching keyway and a 1-1/4 inch length.
11) I am standardizing on small format interchangeable core rather than Corbin LFIC. What are the options?
The Corbin Russwin 1080 is a large format interchangeable core mortise cylinder taking 6-pin Corbin Russwin cores. If you are building on BEST small format cores instead, the BEST 1CB is a 150 Series interchangeable core cylinder, the BEST 1CDF is a drill resistant patented 7-pin brass 150 Series core, and the BEST 1C is a standard 5-pin core. Those cores go into BEST-prepped housings, not into the Corbin 1080 mortise shell.
12) Can a Schlage 20-057 full size interchangeable core be used in place of the Corbin Russwin 1080 mortise cylinder?
No. The Schlage 20-057 is a 6-pin FSIC rim cylinder with a convertible tailpiece cam, and the 20-057-C is a full size interchangeable core in the Schlage C keyway. Neither threads into a mortise lock body the way the Corbin Russwin 1080 conventional mortise cylinder with its A02 straight cam does. They look similar in a bin but serve rim and core applications.
13) What do I use if the lock is a key-in-lever or key-in-knob rather than a mortise lock?
The Corbin Russwin 1080 mortise cylinder threads into mortise lock bodies only. For key-in-knob and key-in-lever bodies, the Kaba Ilco 1539 is a universal key-in-knob and lever cylinder, the 1579 is a knob and lever cylinder for Sargent, and the 1599 is a key-in-knob replacement cylinder. For a key-in-deadbolt, the Kaba Ilco 1549 covers that. Falcon also offers the A23161-05 G key-in-lever cylinder, 6-pin G keyway, keyed different with 2 cut keys.
14) What finishes does the Corbin Russwin 1080 mortise cylinder come in for matching existing trim?
Seven: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome and 626 satin chrome. For most commercial openings the cylinder ring is what shows, so match it to the lock trim, not the door.
15) I need a cylinder for a residential handleset or deadbolt, not a commercial mortise lock. What are the alternatives to the 1080?
The Corbin Russwin 1080 is a commercial mortise cylinder. For handlesets and deadbolts, the Medeco 1075127 is a 5-pin rim type lazy motion single cylinder for handlesets and deadbolts, the 1012040 is a 6-pin lazy motion rim cylinder for Kwikset single cylinder deadbolts, the 1065244 is a 5-pin rim lazy motion cylinder with an Emtek tailpiece, and the 1065140 is a 5-pin retrofit cylinder for Arrow JL interconnected locks and Emtek handleset and deadbolt outside cylinders. Emtek also lists the CY4 cylinder sold each.
16) I only need to fill a cylinder hole on an unkeyed door. Is there a cheaper option than the 1080?
If the opening needs no key function, the BEST 12E Series dummy rim cylinder with a 1-5/32 inch diameter fills a rim cylinder prep without keying. The Corbin Russwin 1080 is a keyed 6-pin LFIC mortise cylinder supplied with 2 keys and built into a master key system, so it is the wrong tool for a blank-off. Note the 12E is rim, not mortise prep.
