Corbin Russwin 217L13M020 ANSI Curved Lip Strike for CLX3300 Series, 1-1/4" Lip Length

Commercial-Grade ANSI Replacement Strike for CLX3300 Series Cylindrical Lever Locksets

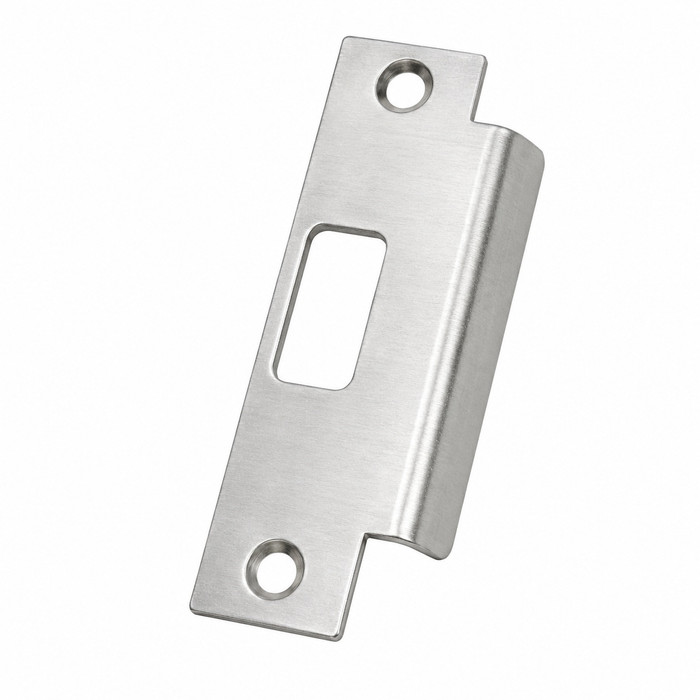

The Corbin Russwin 217L13M020 is an ANSI Curved Lip Strike engineered as a precision replacement part for the CLX3300 Series Cylindrical Lever Locksets. Available in brass or stainless steel construction, this strike features an overall face plate measuring 4-7/8" (124mm) x 1-1/4" (32mm) with a 1-1/4" (32mm) lip-to-center dimension. Designed for commercial door hardware applications, it offers a range of optional lip lengths to accommodate varied door frame conditions and installation requirements.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 cylindrical lock per A156.2 (2022) Series 4000
  • UL Cycle above and beyond: 20 Million Cycles (Verification ID: V875753)
  • Exceeds 3,100 in-lb abusive locked lever torque — 2.6× ANSI requirements
  • Exceeds 1,600 lbs offset lever pull — 8× ANSI requirements
  • Innovative Lever Release™ freewheeling design for vandal resistance
  • Lock chassis design supports all cylinder formats (fixed core to interchangeable core)
  • Patented adjustable push/turn button for easy door thickness adjustment
  • Available with BHSS behavioral health trim and VSL visual status indicators
  • EcoFlex® technology on CLX33900: up to 92% energy reduction (GreenCircle certified)
  • Available with 27 mechanical and 2 electrified functions
  • CLX3352 Classroom Intruder: locking from either side, always-free egress
  • ElectroLynx® 8-pin molex connector on electrified units
  • Ten-year limited mechanical warranty (two-year limited electrical)

Technical Specifications

  • Grade: ANSI/BHMA A156.2 (2022) Series 4000, Grade 1
  • Door Prep: ANSI/SDI A250.14
  • Handing: Non-handed
  • Door Thickness: 1-3/4" 2" (44–51mm) standard; optional 1-3/8" (D138) or over 2" up to 2-1/4" (D214)
  • Backset: 2-3/4" (70mm) standard; optional 2-3/8", 3-3/4", 5"
  • Minimum Stile: 4-1/2" (114mm)
  • Latchbolt: Stainless steel, 1/2" (13mm) throw; optional 3/4" (19mm) deadlocking fire latch
  • Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8" standard
  • Strike: Wrought brass or stainless steel, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Electrified Voltage: 12VDC or 24VDC; range 10.2–26.4VDC (CLX33900)
  • Electrified Current: 10mA continuous; 500mA peak @ 12VDC or 24VDC
  • Operating Temperature: -13°F (-25°C) to 151°F (66°C) (electrified)
  • Certifications: ANSI/BHMA A156.2 Grade 1; UL/cUL 3-hour; UL294 (electrified); NFPA 80; ADA A117.1; Windstorm/Hurricane certified
  • Warranty: Ten-year limited mechanical; two-year limited electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware replacement parts are manufactured to exacting commercial-grade standards, with the 217L13M020 ANSI Curved Lip Strike available in brass or stainless steel to deliver lasting durability in high-demand environments. With precise ANSI dimensions of 4-7/8" (124mm) x 1-1/4" (32mm) and a broad selection of optional lip lengths ranging from 1" (25mm) to 3" (76mm), this strike provides the flexibility and accuracy required for professional door hardware installations. Engineered specifically for the CLX3300 Series, it ensures reliable compatibility and performance where dependable operation is essential.

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
ANSI Strike
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Model:
217L13M020
Product Length:
1-1/4"
Strike Classification:
Curved Lip Strike
Product Category:
Mechanical Locks
Department:
Door Hardware

Corbin Russwin 217L13M020-630 – Frequently Asked Questions

1) What size is the Corbin Russwin 217L13M020 ANSI strike face plate, and will it drop into an existing ANSI strike prep?
The 217L13M020 is a full ANSI curved lip strike measuring 4-7/8 x 1-1/4 inches with a 1-1/4 inch lip-to-center dimension. That is the standard ANSI strike footprint, so it goes into a frame already prepped to the ANSI 4-7/8 inch cutout without new frame work. If your frame carries a small T-strike or a 2-3/4 inch plate instead, the opening has to be cut up to the ANSI prep first.
2) How do I know if the 1-1/4 inch lip length on this Corbin Russwin strike is the right one for my frame?
Lip length is measured from the centerline of the strike to the outer edge of the lip, and it has to reach past the door stop and frame face so the latch rides onto the lip instead of catching the frame edge. The 217L13M020 is the 1-1/4 inch lip-to-center version, which suits a typical hollow metal frame with a standard stop. Deeper frames, applied stops, or heavy casing need a longer lip; the ANSI curved lip strike is offered from 1 inch up to 3 inches. Measure from the door centerline out to the frame edge and match that number.
3) Which locks does the Corbin Russwin 217L13M020 strike work with?
It is the ANSI curved lip strike for the Corbin Russwin CLX3300 Series cylindrical lever locksets. Those locks use a stainless steel latchbolt with a 1/2 inch throw as standard, or an optional 3/4 inch deadlocking fire latch, and the strike lip and pocket are cut for that latch. Pairing it with another manufacturer's cylindrical lock is not something the specs support.
4) Is the Corbin Russwin ANSI curved lip strike handed?
No. The CLX3300 cylindrical lock line is non-handed, and the ANSI strike installs the same way regardless of door swing. You only flip the orientation so the curved lip faces the approach side of the door.
5) What finishes does the Corbin Russwin 217L13M020 strike come in so I can match my existing lever trim?
Four: 612 satin bronze, 613E dark oxidized satin bronze equivalent, 630 satin stainless steel, and BSP black suede powder coat. 630 is the usual match for commercial stainless lever trim, and 613E is the one to pick if your existing hardware is a dark oxidized bronze.
6) My CLX3300 lock has a 2-3/8 inch backset instead of 2-3/4 inch. Do I need a different strike?
No. Backset is a door prep dimension and it changes the lock, not the strike. The CLX3300 runs 2-3/4 inch backset as standard with 2-3/8, 3-3/4, and 5 inch available, and the same ANSI 4-7/8 inch strike serves all of them. What does change the strike choice is frame depth, which is what the 1-1/4 inch lip length addresses.
7) Does the door thickness affect which strike I order for a CLX3300 lever lock?
Not the strike itself. The CLX3300 covers 1-3/4 to 2 inch doors as standard with 1-3/8 inch (D138) and up to 2-1/4 inch (D214) options, and the lock's adjustable push/turn button handles the thickness. The strike is selected on frame condition and lip reach. The lock also needs a minimum 4-1/2 inch stile, so on a narrow aluminum stile this family is not the right lock.
8) I'm standardizing strikes across a building. Is this Corbin Russwin strike durable enough for high traffic doors?
It is the strike for a ANSI/BHMA A156.2 (2022) Series 4000 Grade 1 cylindrical lock, and that lock line is UL verified to 20 million cycles. Grade 1 is the top commercial grade, which is what you want on school, healthcare, and multi-family corridor doors. Using one lip length across a building only works if your frame profiles are consistent; where they vary, order the matching lip length per opening.
9) Is the 217L13M020 strike brass or stainless steel?
Both are made. The ANSI curved lip strike is produced in wrought brass or stainless steel, and the finish you choose tracks the base metal: 630 satin stainless on stainless, 612 and 613E on the brass body. BSP black suede is a powder coat over the strike body.
