Corbin Russwin 446F20-8 ED8000 Rod Guide Packet

Corbin Russwin 446F20-8 Grade 1 ED8000 Rod Guide Packet

(No reviews yet) Write a Review

Model: 446F20-8-691
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$62.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 446F20-8 ED8000 Series Rod Guide Packet for Surface Vertical Rod Exit Devices

Commercial-Grade Exit Device Replacement Parts and Accessories

The Corbin Russwin ED8000 Series Rod Guide Packet is a precision-engineered replacement parts accessory designed for use with the ED8400A Fire-Rated Surface Vertical Rod and ED8400 Surface Vertical Rod exit devices. This packet includes all necessary hardware for a complete rod guide installation, featuring #8 x 3/4" Phillips Round Head Type A Tapping Screws and Rod Guides to ensure proper rod alignment and smooth exit device operation. Designed for commercial door hardware applications, this packet delivers the reliable performance and fit expected from Corbin Russwin exit device components.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device parts and accessories are engineered to exact specifications, ensuring seamless compatibility with ED8000 Series surface vertical rod exit devices including fire-rated configurations. Each rod guide packet is purpose-built for commercial door hardware environments where precise fit and long-term reliability are essential. Trust Corbin Russwin replacement components to maintain the performance and integrity of your exit device installations.

Product Specs

Product Group:
Exit Device Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Parts and Accessories
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Category:
Mechanical Locks
For Use With:
ED8400A Fire-Rated Surface Vertical Rod; ED8400 Surface Vertical Rod
Included Components:

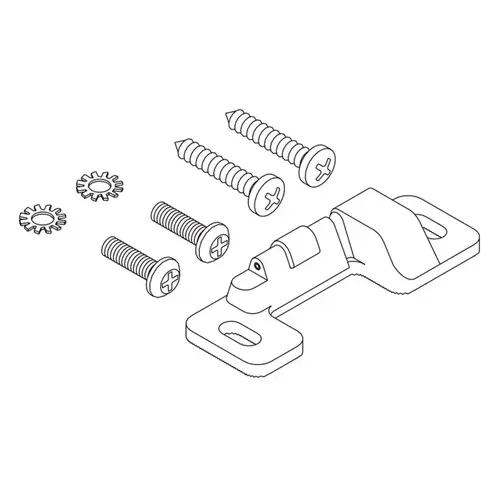

(4) #8 x 3/4" Phillips Round Head, Type A Tapping Screws; (2) Rod Guides
Product Function:
Rod Guide
Department:
Door Hardware

Corbin Russwin 446F20-8-691 – Frequently Asked Questions

1) What exactly comes in the Corbin Russwin 446F20-8 rod guide packet?
The 446F20-8 packet contains (2) rod guides and (4) #8 x 3/4 inch Phillips round head Type A tapping screws. That is everything needed to mount both guides, so you don't need to source separate fasteners. It does not include rods, latches, or the device itself.
2) Which Corbin Russwin exit devices does the 446F20-8 rod guide fit?
It is made for the ED8400A fire-rated surface vertical rod device and the ED8400 surface vertical rod device. Both take the same guide, so one part number covers fire-rated and non-rated surface vertical rod openings in a building.
3) Can I use this rod guide packet on a fire-rated exit device without affecting the label?
The packet is specified by Corbin Russwin for the ED8400A fire-rated surface vertical rod device as well as the standard ED8400, so it is the manufacturer's own part for a labeled opening. Using the factory guide and the supplied #8 x 3/4 inch tapping screws keeps the assembly as the device was listed.
4) What does a rod guide actually do on a surface vertical rod exit device?
A rod guide is the bracket that holds the vertical rod flat against the door face and keeps it aligned as it travels. On a surface vertical rod device the top latch and bottom latch are driven by those rods, so a bent, loose, or missing guide is usually what's behind a rod that rattles, binds, or fails to throw the top latch. Two guides come in the 446F20-8 packet, which is what a typical door run uses.
5) Will the 446F20-8 rod guide work on a rim exit device like the ED5200?
No. Rim devices latch into a strike on the frame and carry no vertical rods, so there is nothing for a guide to hold. The 446F20-8 is only for the ED8400 and ED8400A surface vertical rod devices. If you have a rim device, you need rim device parts instead.
6) I'm cutting an ED8400 rod down for a shorter door. Do I need new rod guides?
Not necessarily new guides, but you do need to reposition them. When a rod is shortened the guide locations shift, and the old screw holes will no longer line up. The 446F20-8 packet gives you two fresh guides and four #8 x 3/4 inch tapping screws to set at the new locations, which is the cleaner route than reusing holes that have already been driven once.
7) What finish does the 446F20-8 rod guide packet come in?
It is supplied in 691 Light Bronze. If the other hardware on the door is a different Corbin Russwin finish, the guide will show against it, since the guide sits exposed on the door face alongside the rod.
8) Is this a commercial-duty part or something for residential doors?
Strictly commercial. The rod guide is a service part for Corbin Russwin ED8000 Series exit devices, which go on office buildings, schools, healthcare facilities, retail, warehouses, multi-tenant residential, and government buildings. Residential doors don't use panic hardware.
