Corbin Russwin 487F08 Grade 1 - ML2000 A Wrought Rose Pack - 2 Pieces

Corbin Russwin 487F08 ML2000 Series Wrought A Rose Pack - 2-1/4" Diameter, 2-Piece Replacement Accessory for Mortise Locks

Commercial-Grade Mortise Lock Rose Pack for ML2000 and ML2000HS Series

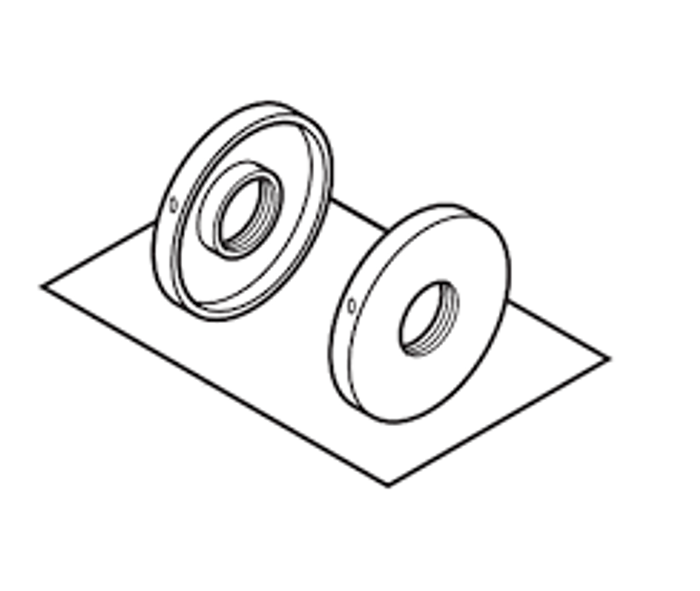

The Corbin Russwin 487F08 is a Wrought "A" Rose Pack designed specifically for use with the ML2000 and ML2000HS Mortise Lock Series. This replacement accessory pack includes 2 pieces, each measuring 2-1/4" in diameter, providing a precise fit and professional finish for compatible Corbin Russwin mortise lock installations. Engineered for commercial applications, this rose pack delivers the quality and dimensional accuracy required for proper mortise lock trim assembly.

Professional Features & Benefits

• ANSI/BHMA Grade 1 mortise lock per A156.13 Series 1000, Operational and Security Grade 1
• UL Cycle above and beyond: 14.5 Million Cycles (Verification ID: V875753)
• Patented Quick Reversible latchbolt — reverse handing without disassembling the lock case
• Multi-function capability: 12 functions configurable from one ML2054 lockbody
• Heavy-gauge steel lockcase 5-7/8" x 4" x 15/16"; 1" stainless steel deadbolt, 1" throw
• 3/4" (19mm) throw anti-friction two-piece latchbolt requires less force to close
• Wide variety of trim designs including Muséo®, Vineyard™, Behavioral Health (BHSS/BLSS)
• Status indicator options for locked/unlocked visibility (sectional and escutcheon trim)
• Motorized Electric Latch Retraction (MELR) available for ML20900 series
• Thru-bolted trim designs for proper alignment and increased security
• Can be used with new or existing Corbin Russwin key systems; accepts most other manufacturers' cylinders
• UL/cUL listed, UL10C positive pressure; 3-hour fire door up to 4' x 10' single or 8' x 10' pair
• Ten-year mechanical warranty; five-year MELR; two-year electrical

Technical Specifications

• Grade: ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1
• Handing: Handed; quick reversible — re-handed without disassembling the lock case
• Door Thickness: 1-3/4" (44mm) standard; optional thicknesses available
• Backset: 2-3/4" (70mm)
• Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
• Armored Front: Wrought brass, bronze, or stainless steel, 8" x 1-1/4"
• Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" (19mm) throw
• Auxiliary Latchbolt: 9/16" (14mm) effective throw; deadlocking
• Deadbolt: One-piece stainless steel, 19/32" x 1-1/4" x 1" (25mm) throw
• Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip, 4-7/8" x 1-1/4" x 1-1/8" lip to center
• Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
• Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm); knob/lever to thumbturn: 2-7/16" (62mm)
• Certifications: ANSI/BHMA A156.13 Grade 1; UL/cUL UL10C 3-hour positive pressure; ADA A117.1; California State Fire Marshal; Windstorm/Hurricane certified
• Warranty: Ten-year mechanical; five-year MELR; two-year electrical

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware parts and accessories are engineered to meet the exacting standards of commercial applications, delivering consistent fit and finish across the ML2000 and ML2000HS Mortise Lock Series. The 487F08 Wrought "A" Rose Pack provides genuine OEM quality with a precise 2-1/4" diameter rose designed to integrate seamlessly with compatible mortise lock trim. For demanding commercial environments where reliable, professional-grade hardware is essential, Corbin Russwin replacement components offer the dependability and craftsmanship that facility managers and installers trust.
